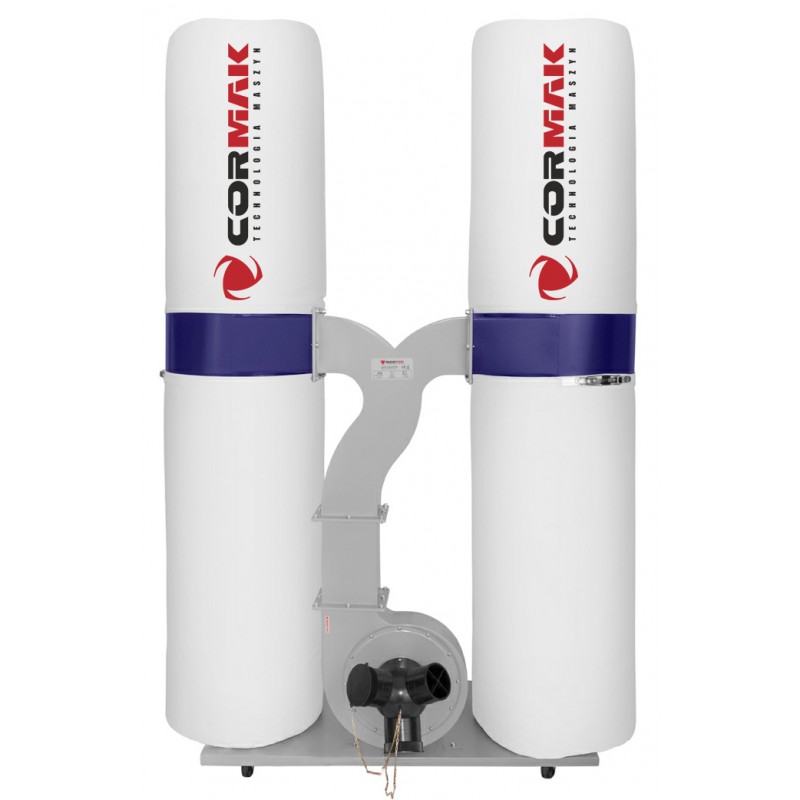

Wood Dust and Chip Extractor CORMAK FM300SA + 3 m Antistatic Hose

CORMAK FM300SA is an advanced wood dust and chip extractor engineered for intensive use in industrial, joinery and furniture workshops. With an airflow of 3,900 m³/h, a powerful 2.2 kW motor and durable steel structure, it ensures efficient extraction from multiple machines simultaneously. The included 3 m antistatic hose increases safety and reliability by preventing static charge build-up during operation.

Main advantages of the machine

• 2.2 kW / 400 V motor – reliable power for continuous industrial operation.
• Airflow 3,900 m³/h – efficient extraction from several woodworking stations at once.
• WhirlWind multi-blade metal impeller – dynamically balanced for silent, vibration-free performance.
• 4 filter bags (total 220 L) – large filtration area for extended, uninterrupted use.
• Sturdy reinforced steel frame – designed for maximum rigidity and durability.

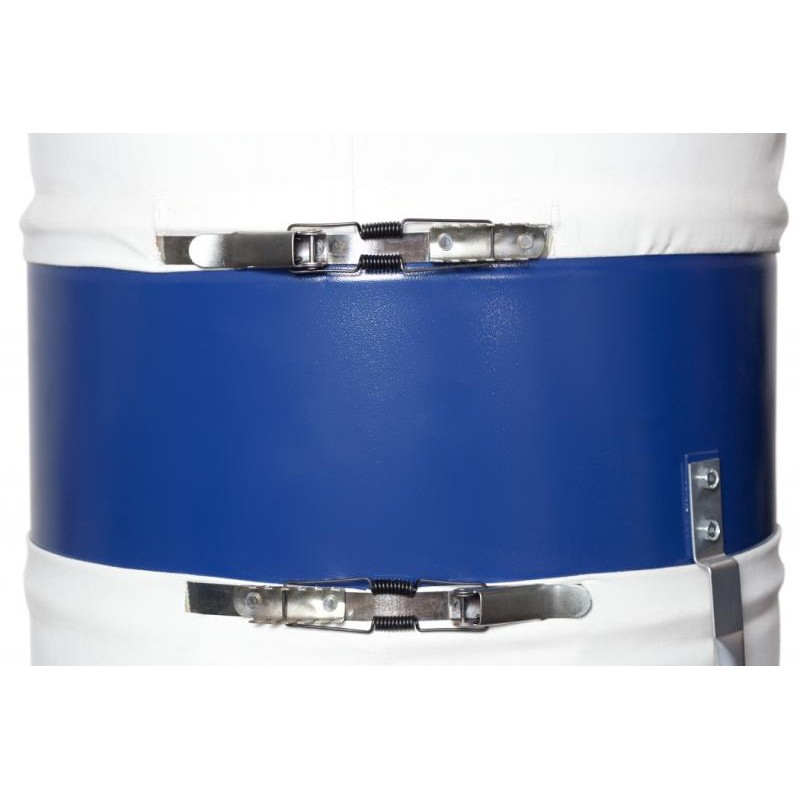

• Quick-release bag system – simple, tool-free bag replacement.
• Sealed system with 4 gaskets – provides airtight operation and consistent suction power.
• Mobile base with bearing-mounted castors – easy transport around the workshop.
• 3 m antistatic hose – prevents electrostatic discharge and improves dust transfer.

Design and technology

The heart of the FM300SA extractor is a precision-balanced WhirlWind impeller that ensures strong and consistent suction. Its double-support frame construction offers outstanding stability, even under heavy load. The robust steel housing and four filter bags efficiently separate air and waste, while all critical joints are sealed with elastic gaskets for optimal pressure retention.

Performance and precision

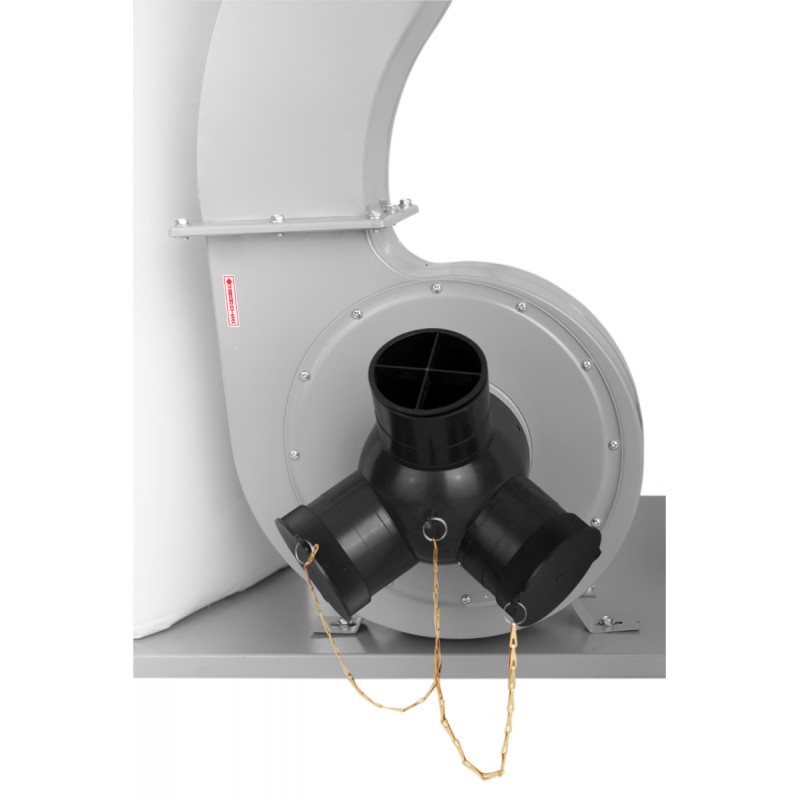

The CORMAK FM300SA dust extractor supports simultaneous operation with multiple woodworking machines thanks to its Ø150 mm inlet or 3 × Ø100 mm adapter. The four large filter bags reduce emptying frequency and keep the system running smoothly, ensuring long, maintenance-free operation with stable suction pressure.

Applications

• Joinery and furniture workshops – central wood dust extractor for several workstations.
• Wood and MDF production facilities – efficient removal of chips and fine dust.
• Educational and technical centres – safe and reliable solution for training workshops.
• Production lines – works as a central or local chip extraction system.

Standard equipment

• 4 canvas filter bags (total 220 L)
• Steel mobile base with bearing-mounted castors
• 3 m antistatic hose

Optional equipment*

• Galvanised hose clamp
• Cartridge filter (up to 2 µm filtration)

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Technical data

Summary

CORMAK FM300SA is a heavy-duty wood dust and chip extractor that combines high suction power, solid design and professional efficiency. The included 3 m antistatic hose ensures safe and effective operation, making it a reliable choice for professional woodworking and industrial facilities.

Choose the CORMAK FM300SA – the professional solution for effective and safe dust extraction in your workshop!
