Manufacturer:
CORMAK

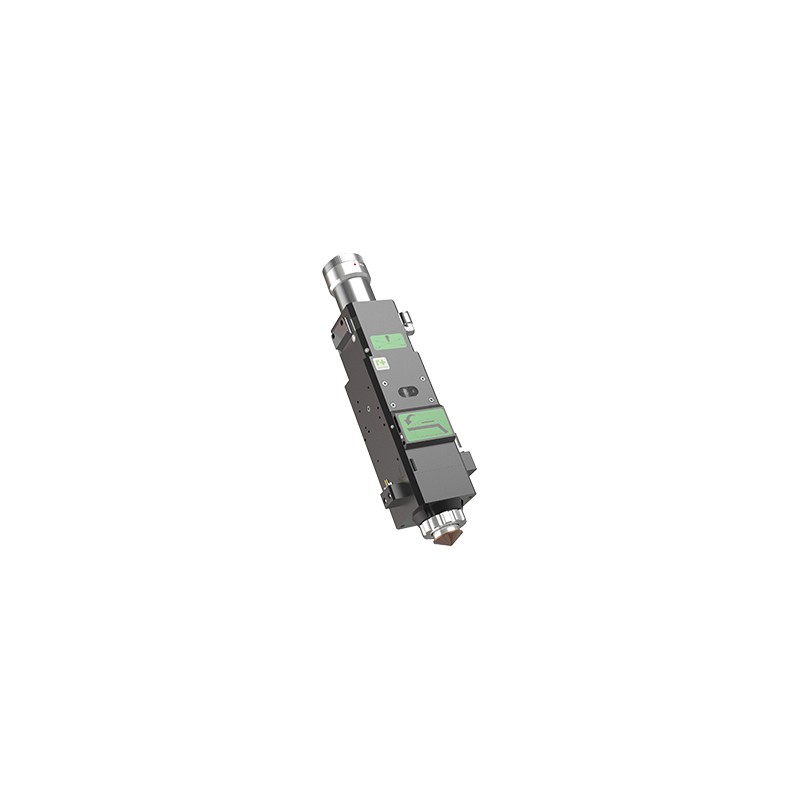

RAYTOOLS laser heads are manufactured in Switzerland and designed for industrial use. Suitable for medium- and high-power fiber lasers. The specialized dustproof housing prevents contamination of the collimating lens, significantly extending its service life and improving beam precision and performance. The head features an additional upper protective glass for the collimating assembly, while the lower protective glass design has been fully upgraded with an added dust shield.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
The specialized dustproof housing prevents contamination of the collimating lens, significantly extending its service life and improving precision and laser beam performance.
The head is equipped with an additional upper protective glass for the collimating assembly. At the same time, the lower protective glass design has been fully upgraded with an added dustproof shield.
The double-sealed construction makes handling during optical maintenance simple and minimizes the risk of lens contamination to nearly zero.
- Optimized optical configuration with smooth and efficient airflow design.
- Comprehensively upgraded dustproof structure — dual protection reduces lens contamination risk to almost zero.
- The laser head body is reinforced with an anti-collision function.
- Focus adjustment via rotary mechanism; manual correction possible, providing precise and flexible tuning — 20 mm adjustment range, 0.05 mm accuracy.
- Compatible with various fiber lasers through multiple optical interfaces.
- Collimating lens, focusing lens, and nozzle feature active cooling structures.
| Rated power | ≤ 3 kW |
| Aperture cleaning | 28 mm |
| Protective windows | φ 24.9 mm × 1.5 mm (top); φ 27.9 mm × 4.1 mm (bottom) |
| Pressure | ≤ 25 bar |
| Weight | ~ 3.5 kg |
| Distance range (recommended 1 mm) | 0.3–10 mm |
| Calibration | Automatic / manual calibration |
| Response time | < 1 ms |
| Temperature stability | In the range of 0–45 °C, temperature stability within ±5% |
| Power requirement | 24 V |
| Output (linear or optimized curve signal) | 0–10 V / ±10 V Analog |
