Manufacturer:
CORMAK

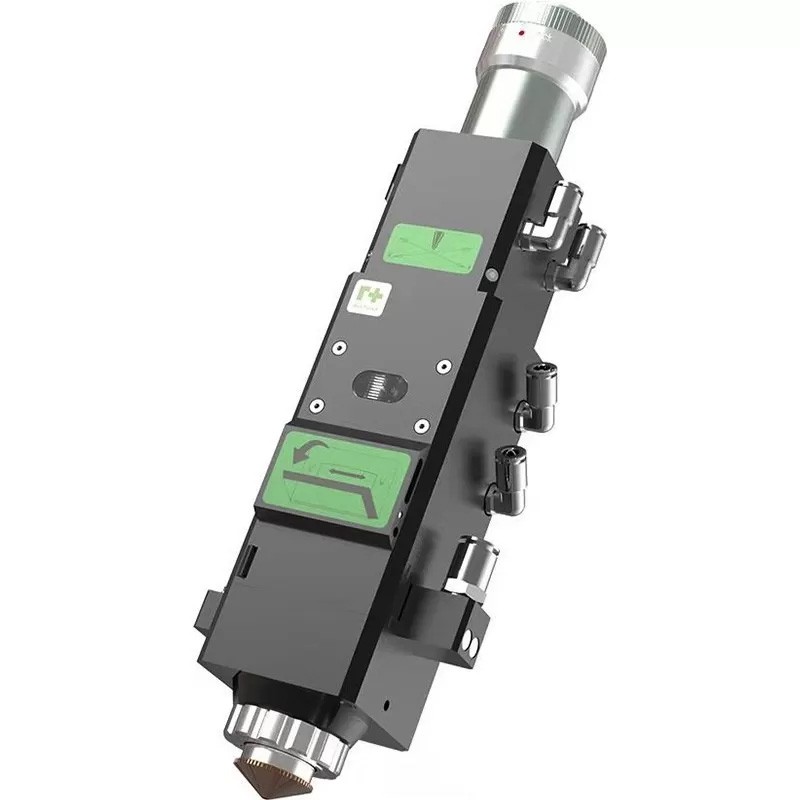

RAYTOOLS laser heads are manufactured in Switzerland and designed for industrial applications. Suitable for medium- and high-power fiber lasers. The specialized dustproof housing prevents contamination of the collimating lens, significantly extending its service life and improving the precision and performance of the laser beam. The head features an additional upper protective glass for the collimating unit, while the lower protective glass design has been upgraded with an added dust shield.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase

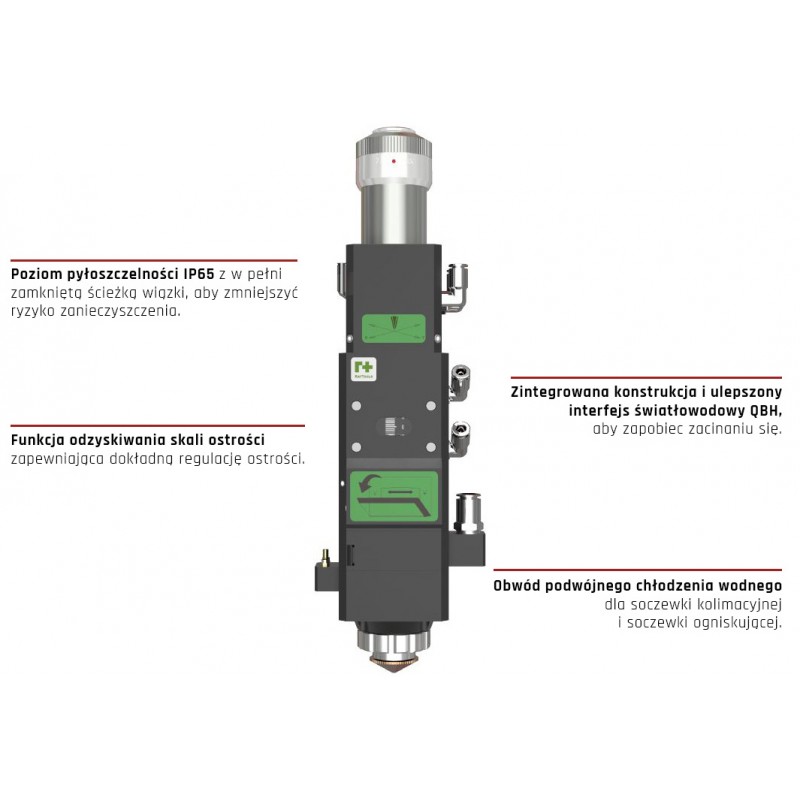

The specialized dustproof housing prevents contamination of the collimating lens, significantly extending its lifespan and improving laser precision and efficiency.
The head is equipped with an additional upper protective glass for the collimating assembly. The lower protective glass has also been completely redesigned with an added dust shield.
The dual protective design significantly simplifies maintenance and reduces the risk of lens contamination to almost zero.
- Optimized optical configuration with smooth and efficient airflow design.
- Fully upgraded dustproof structure — dual protection minimizes the risk of lens contamination.
- Laser head body reinforced with an anti-collision function.
- Focus adjustment via rotary mechanism; manual fine-tuning with a 20 mm range and 0.05 mm precision.
- Compatible with various fiber lasers through multiple optical interfaces.
- Collimating lens, focusing lens, and nozzle equipped with integrated cooling structures.
| Rated power | ≤ 3 kW |
| Aperture cleaning | 28 mm |
| Protective windows | φ 24.9 mm × 1.5 mm (top); φ 27.9 mm × 4.1 mm (bottom) |
| Pressure | ≤ 25 bar |
| Weight | ~ 3.5 kg |
| Distance range (recommended 1 mm) | 0.3–10 mm |
| Calibration | Manual calibration |
| Response time | < 1 ms |
| Temperature stability | In the range of 0–45 °C, temperature stability within ±5% |
| Power requirement | 24 V |
| Output (linear or optimized curve signal) | 0–10 V / ±10 V Analog |
