Manufacturer:
CORMAK

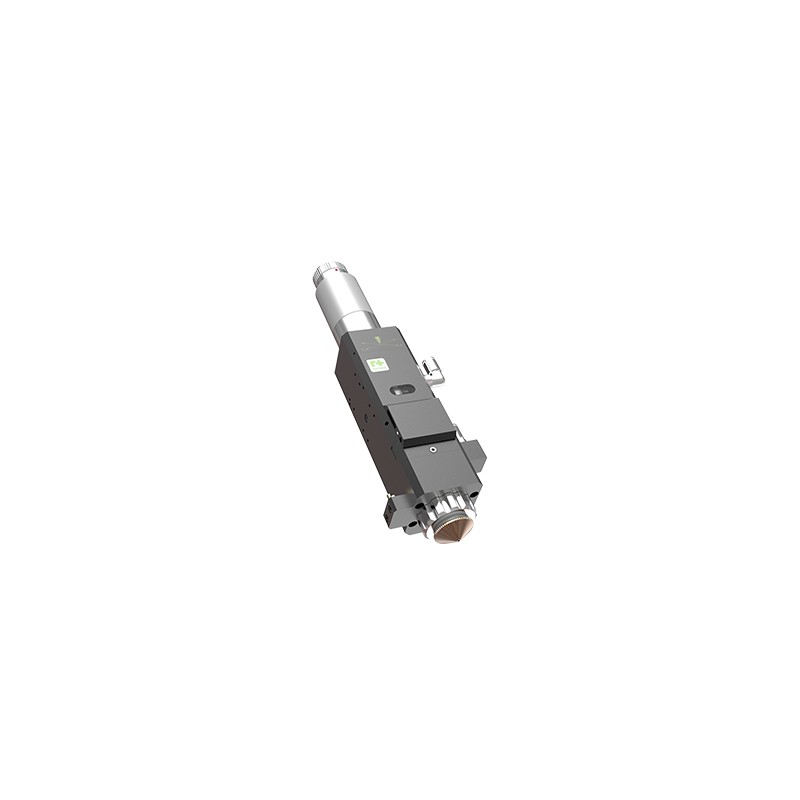

RAYTOOLS laser heads are manufactured in Switzerland and designed for industrial applications. Suitable for medium- and high-power fiber lasers. The specialized dustproof housing prevents contamination of the collimating lens, significantly extending its service life and ensuring precision and efficiency of the laser beam. The head is equipped with an additional upper protective glass for the collimating assembly, while the lower protective glass design has been fully upgraded with an added dust shield.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
The specialized dustproof housing prevents contamination of the collimating lens, significantly extending its lifespan and improving beam precision and performance.
The head is equipped with an additional upper protective glass for the collimating assembly. At the same time, the lower protective glass design has been fully modernized with an added dust shield.
The double protection design greatly simplifies handling during optical component replacement, reducing the risk of lens contamination to almost zero.
- Optimized optical configuration and smooth, efficient airflow.
- Focus adjustment via precision knob; flexible and accurate — 15 mm adjustment range, 0.05 mm accuracy.
- Drawer-style lens holder for quick and easy glass access.
- Modular design, can be equipped with anti-collision protection.
- Optional longitudinal nozzle connection for 3D cutting.
- Optional magnetic breakaway protection (2D / 3D).
- Compatible with various fiber lasers through multiple optical interfaces.
| Rated power | ≤ 1000 W |
| Aperture cleaning | 25 mm |
| Protective glass | φ 27.9 mm × 4.1 mm |
| Pressure | ≤ 20 bar |
| Weight | 1.5 kg |
