Manufacturer:
CORMAK

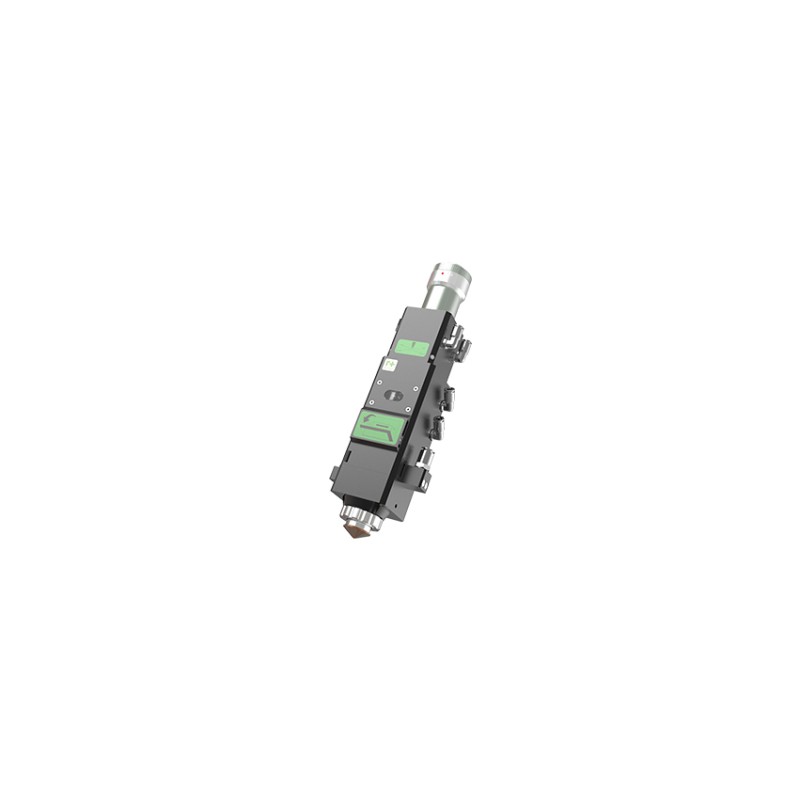

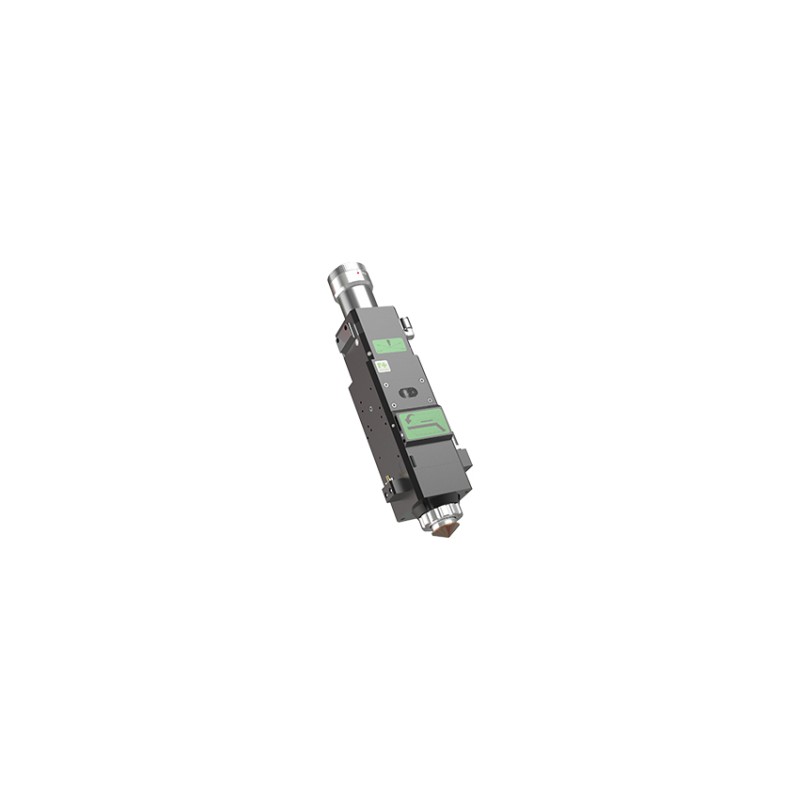

RAYTOOLS laser heads are manufactured in Switzerland and designed for industrial applications. Suitable for medium- and high-power fiber lasers. The specialized dustproof housing prevents contamination of the collimating lens, extending its service life and improving beam precision and performance. The head features upper and lower protective glasses, both redesigned for better dust protection. Equipped with an autofocus system for precise and efficient operation in fiber laser cutting processes.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
The specialized dustproof housing prevents contamination of the collimating lens, significantly extending its service life and improving precision and laser beam performance.
The head is equipped with an additional upper protective glass for the collimating unit, while the lower protective glass has been completely redesigned with an added dust shield.
The dual-sealed structure greatly simplifies maintenance during optical replacement, reducing the risk of lens contamination to nearly zero.
- Optimized optical configuration with smooth and efficient airflow design.
- Automatic focus adjustment range of +8 to –9 mm, with 0.05 mm precision.
- Lens group diameter D28; maximum optical input power 1.5 kW.
- Maximum focusing lens acceleration 10 m/s²; maximum speed 6 m/min.
- Collimating and focusing lenses are protected by glass modules that prevent contamination and extend lens life.
- Drawer-type lens holder for quick and easy access to the protective glass.
| Rated power | ≤ 1.5 kW |
| Aperture cleaning | 26 mm |
| Top protective window | φ 24.9 mm × 1.5 mm |
| Bottom protective window | φ 27.9 mm × 4.1 mm |
| Pressure | ≤ 25 bar |
| Weight | ~ 3 kg |
