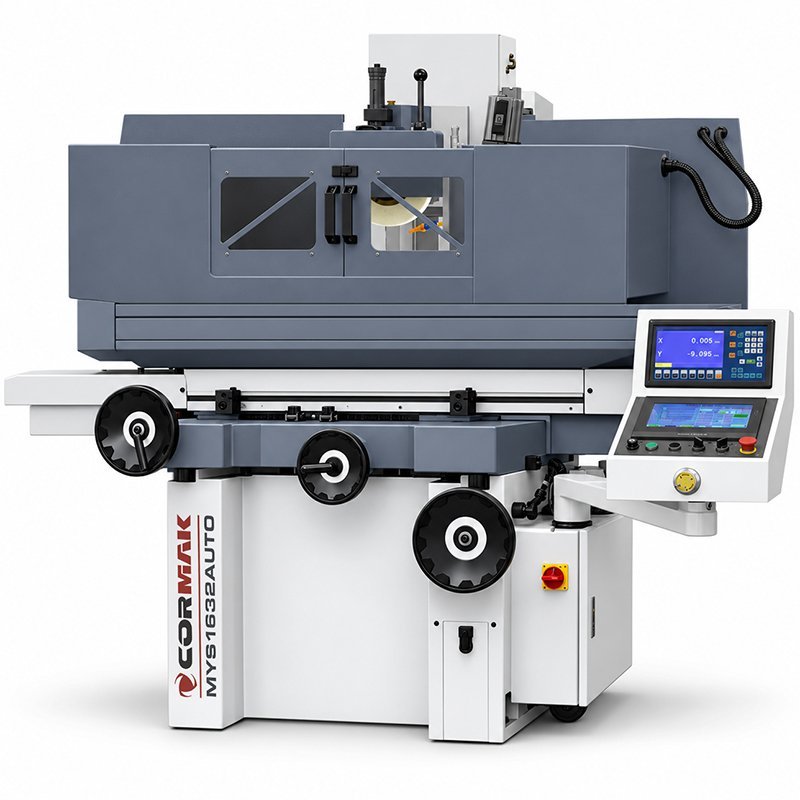

Surface Grinding Machine CORMAK MYS1632 AUTO 800x400

The MYS1632 AUTO surface grinding machine is an industrial metal grinding machine designed for precision machining of flat surfaces in production facilities, toolrooms and maintenance departments. The 915x400mm worktable, 800x400mm magnetic chuck, 4.0kW spindle motor and vertical feed servo drive provide a configuration designed for precise and repeatable machining of workpieces.

MYS1632 AUTO surface grinding machine – 915x400mm table and 800x400mm magnetic chuck

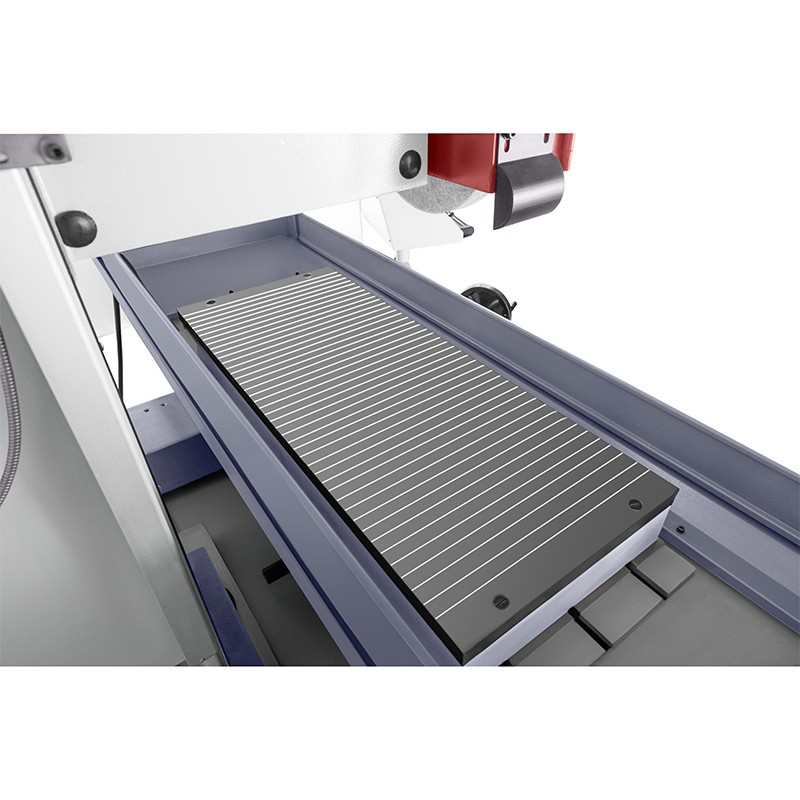

The MYS1632 AUTO model has been designed for grinding surfaces requiring precise table guidance and accurate control of the grinding wheel position. The worktable surface measures 915x400mm, while the maximum table travel is 760x480mm. The 800x400mm magnetic chuck provides a large clamping area for ferromagnetic workpieces during grinding.

The maximum distance between the table and the spindle axis is 525mm, while the distance between the magnetic chuck and the spindle axis is 440mm. These parameters allow workpieces of various heights to be machined and suitable tooling to be used.

Main advantages of the MYS1632 AUTO

• 915x400mm worktable providing a large working area.
• 800x400mm magnetic chuck for stable workpiece clamping.
• Maximum table travel 860x440mm.
• 4.0kW spindle motor operating with a 350x127x40mm grinding wheel.
• 0.75kW vertical feed servo drive for precise grinding wheel positioning.
• 2.2kW hydraulic power unit with an 80L oil tank.
• Coolant system with a 0.09kW pump.

Precise MPG cross and vertical feed

The cross-feed handwheel feed is 4mm/rev., with a graduation of 0.02mm, allowing precise control of the setting when preparing the grinding process.

Vertical feed is controlled using the MPG. The available movement values allow switching from positioning movements to precise infeed during finishing operations. The system is driven by a 0.75kW servo motor.

4.0kW spindle and 350x127x40mm grinding wheel

The grinding wheel is driven by a 4.0kW spindle motor. At a frequency of 50Hz, the wheel speed is 1450, and the grinding wheel used has dimensions of 350x127x40mm.

The coolant system assists in removing heat from the contact zone between the grinding wheel and the workpiece, reducing the influence of temperature on process conditions.

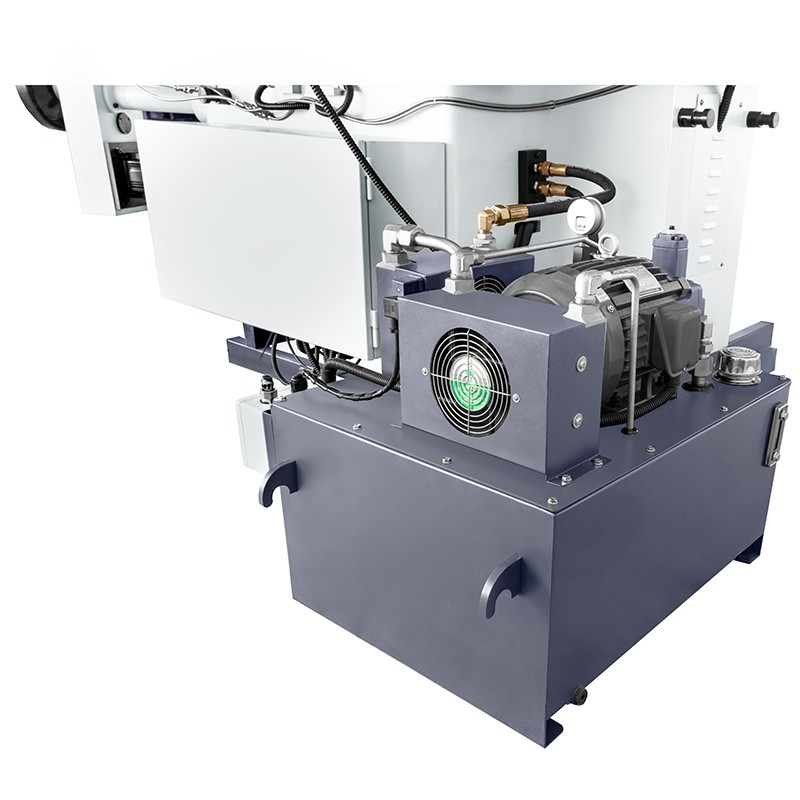

Hydraulic system and coolant system

The MYS1632 AUTO magnetic surface grinding machine is equipped with a hydraulic power unit driven by a 2.2kW motor. The oil tank has a capacity of 80L, while the coolant pump has a power rating of 0.09kW.

Applications of the MYS1632 AUTO grinding machine

MYS1632 AUTO is designed for metalworking facilities, toolrooms, single-part and series production, and maintenance departments. It can be used for grinding plates, machine parts, tooling components, reference surfaces, moulds and other workpieces requiring precise flat-surface finishing.

Technical data of the MYS1632 AUTO

Standard equipment of the MYS1632 AUTO

• Magnetic table
• Grinding wheel
• Grinding wheel holder
• Wheel balancing stand
• Coolant system
• Halogen lighting system
• CE certification
• CE Declaration

Optional equipment*

• 350mm grinding wheel hub – grinding wheel holder with grinding wheel balancing system

*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.

MYS1632 AUTO – industrial magnetic surface grinding machine

The combination of a 915x400mm table, 800x400mm magnetic chuck, 4.0kW spindle drive, hydraulic system and vertical servo drive makes the MYS1632 AUTO suitable for professional and repeatable grinding of flat surfaces. Contact a CORMAK advisor to select a grinding wheel and additional equipment suitable for the materials being machined and the requirements of the technological process.
