Reference:
BS370SA
The CORMAK BS370SA model is a modern automatic metal bandsaw designed for efficient serial cutting of tubes, profiles and solid materials of various geometries. Its robust design, full automation of operations and high cutting precision make it ideal for production plants, tool workshops and metalworking companies that require reliability and repeatability.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase

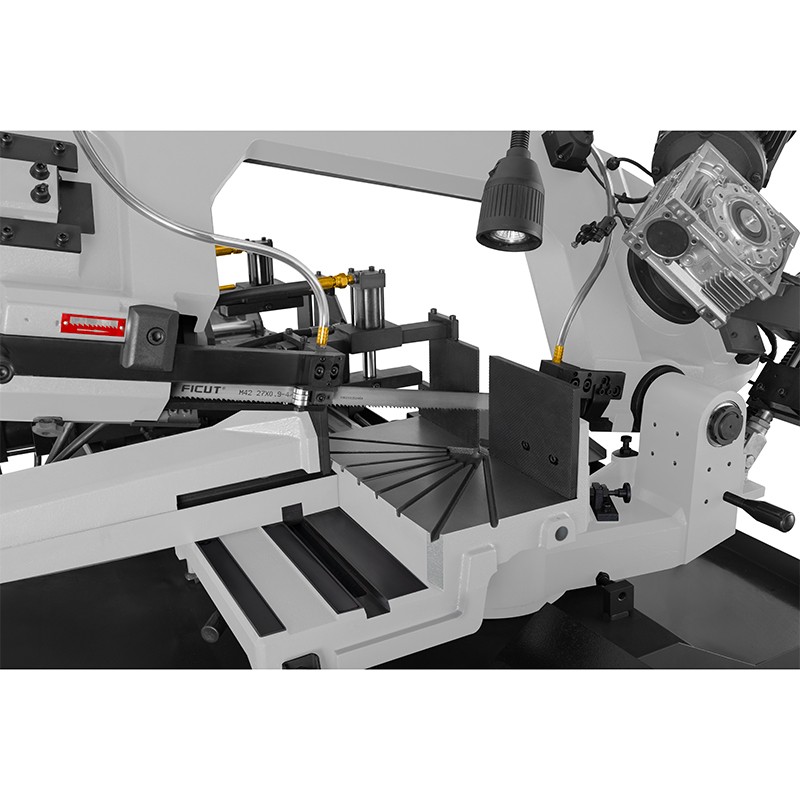

Automatic Metal Bandsaw CORMAK BS370SA
The CORMAK BS370SA model is a modern automatic metal bandsaw designed for efficient serial cutting of tubes, profiles and solid materials of different geometries. Its sturdy design, full process automation and high cutting accuracy make the machine perfectly suited for production facilities, tool shops and metalworking companies where precision and reliability are essential.
Main Advantages of the Machine
- Automatic cutting cycle: clamping, material feed, cutting and arm return occur without operator intervention.
- Angle cutting capability within the full working range up to 60° to the right.
- Inverter drive enabling stepless blade speed control from 5–90 m/min.
- Hydraulic control of the arm and vice – ensures precision and comfortable operation.

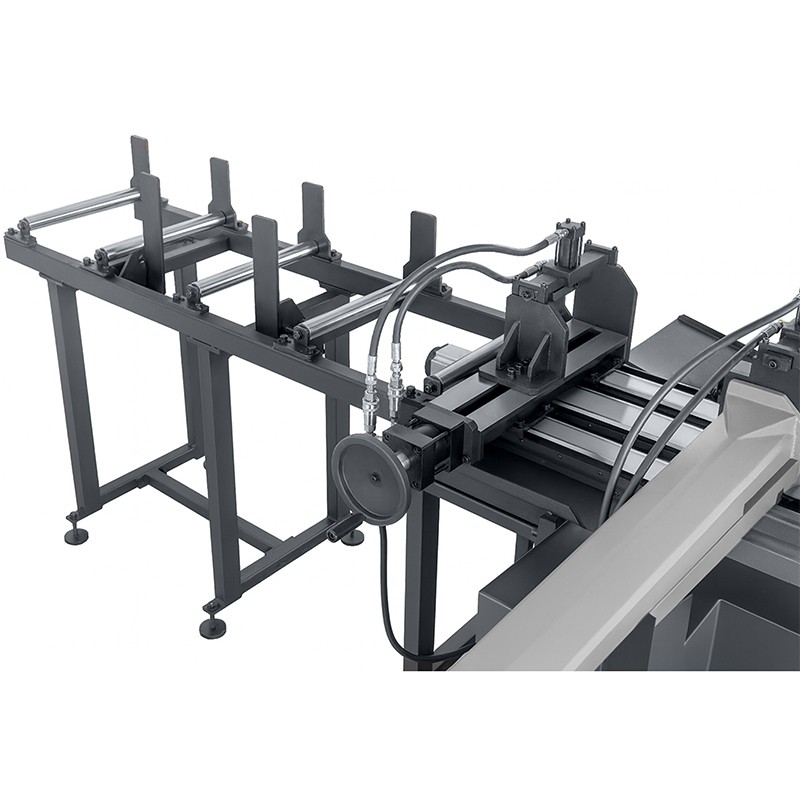

- Material feed system equipped with a 2,450 mm roller conveyor, feed per cycle 245 mm, accuracy ±0.2 mm.
- Controller with operator panel: programming of cutting parameters, detail quantity control and error indication.
Design and Technology
The CORMAK BS370SA bandsaw is built on a rigid welded frame providing work stability and vibration reduction. The hydraulic feed and clamping system, precise blade guides, and stepless speed control guarantee high cutting quality and operational safety. The machine is equipped with a roller conveyor facilitating automatic material feeding.
Precision and Work Efficiency
Thanks to high-quality components and advanced technical solutions, the CORMAK BS370SA bandsaw offers repeatable and accurate cuts. The ability to adjust cutting speed and hydraulic blade pressure ensures long tool life and full control over the cutting process.
Applications
This machine is recommended for production plants involved in serial manufacturing and machining of steel, aluminium and non-ferrous metal components. It is particularly suitable as a bandsaw for pipes, profiles and solid sections in the steel construction, prefabrication and precision production industries.
Standard Equipment
- Control console on a separate stand
- Hydraulic control of vice and arm
- Roller conveyor for automatic material feeding
- Arm position memory
- Blade cleaning brush
- Cooling system with pump
- Bimetal bandsaw blade
- CE Declaration of Conformity and User Manual
Technical Specifications
| Main motor power | 1.5 kW (400 V) |
| Hydraulic motor power | 0.75 kW (400 V) |
| Blade dimensions | 3160 × 27 × 0.9 mm |
| Cutting speed (stepless) | 5–90 m/min |
| Saw frame rotation angle | up to 60° |
| Workpiece capacity at 90° | ● 270 mm, ■ 260 mm, ▅ 370 × 220 mm |
| Workpiece capacity at 45° | ● 240 mm, ■ 180 × 180 mm, ▅ 240 × 160 mm |
| Workpiece capacity at 60° | ● 160 mm, ■ 100 × 100 mm |
| Machine length | 3970 mm |
| Machine width | 1850 mm |
| Machine height | 1763 mm |
| Net weight | 770 kg |
| Gross weight | 925 kg |
| Additional roller conveyor | Length 2450 mm |
