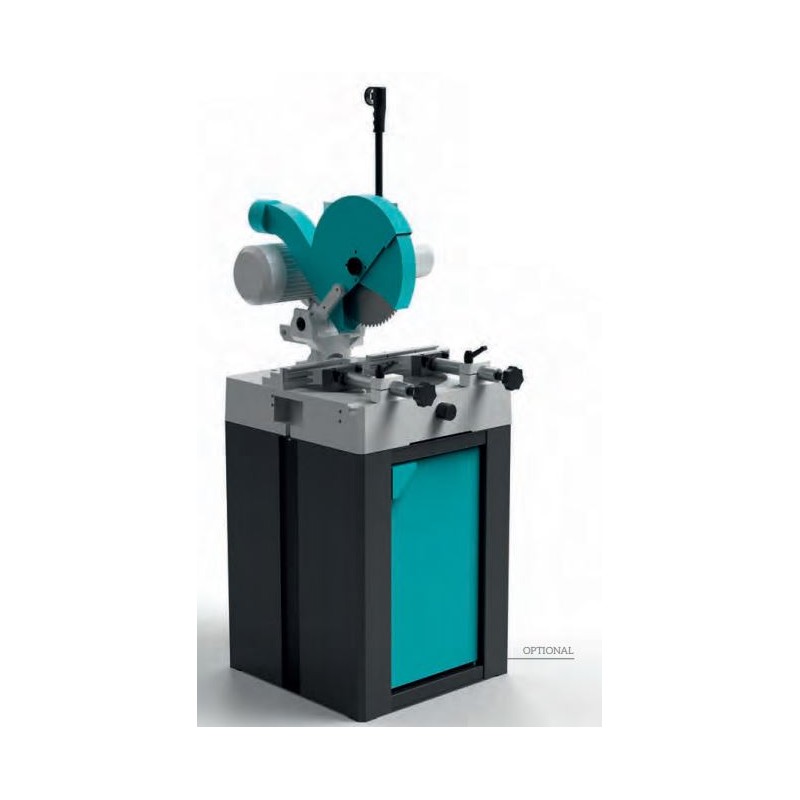

The VELOX 350 handheld circular saw is a professional work tool, specially designed for cutting aluminum (and light metals such as copper) - bars and profiles - with the highest quality. VELOX allows cutting at an angle of up to 45° to the left and right and up to 45° in the vertical axis.
Machine description:
-
double-sided clamping vice with quick movement on the work table; the vice jaws made of aluminum are removable and shaped in such a way that they can be used for many different profiles.
-
has automatic angle locks at 0°, 15°, 30° and 45° on both sides with a scale on the work table, which allows you to optimize the workflow and always get the best setting before cutting.
-
User safety is ensured by the full blade guard; the device is also equipped with a chip extraction system with a conveyor belt, adjustable cutting depth limiter. The cutting head is equipped with a return system that allows it to return to the starting position. Starting a new cut is easy and intuitive thanks to the start-stop button on the handle.
-
is also suitable for using special HSS discs for cutting profiles, pipes and bars made of brass or copper.
Cutting ranges:
Technical parameters:
|
POWER |
3 phase 400V |
|
TOTAL POWER |
1.8 kW |
|
ADJUSTMENT ARM DROP |
handheld |
|
DISC SIZE |
350 mm |
|
SPEED CUTS |
1800 / 3600 rpm |
|
NUMBER OF GEARS |
2 |
|
BASE HEIGHT VISES |
895 mm |
|
DIMENSIONS |
610 x 880 x 990 mm |
|
WEIGHT |
163 kg |
BASE NOT INCLUDED!
