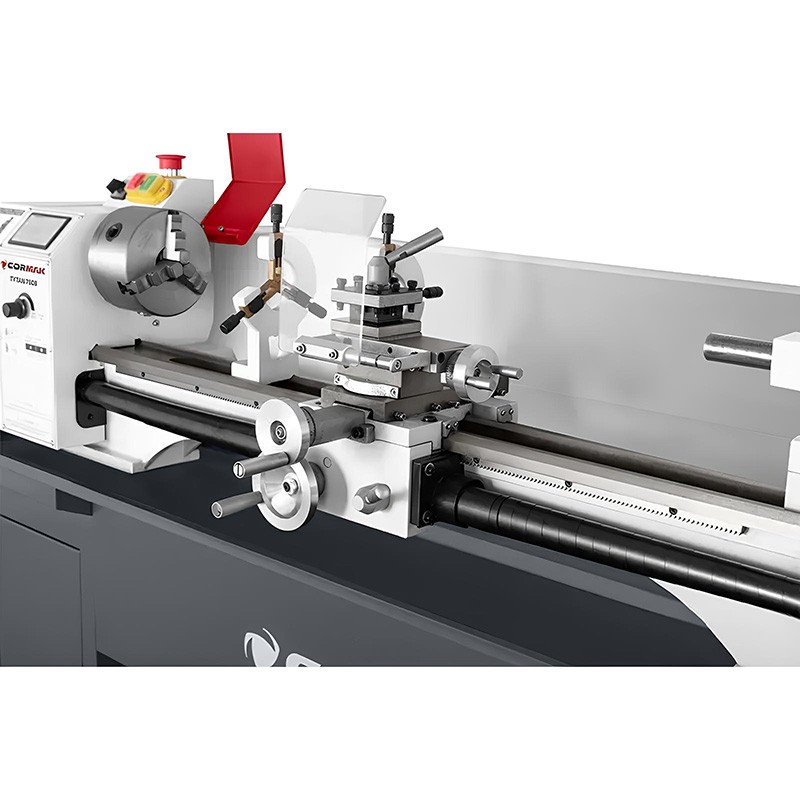

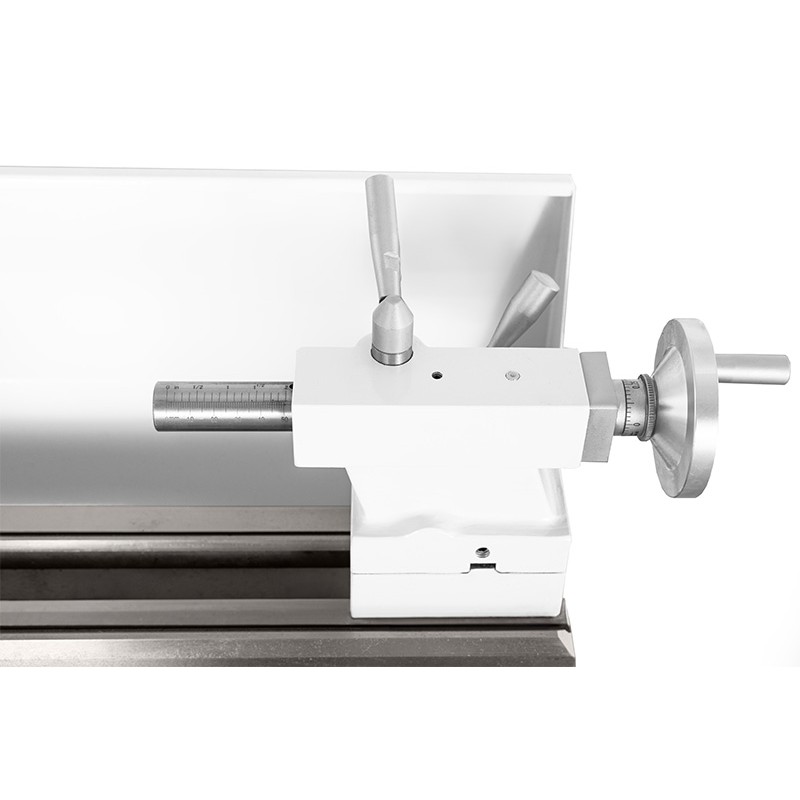

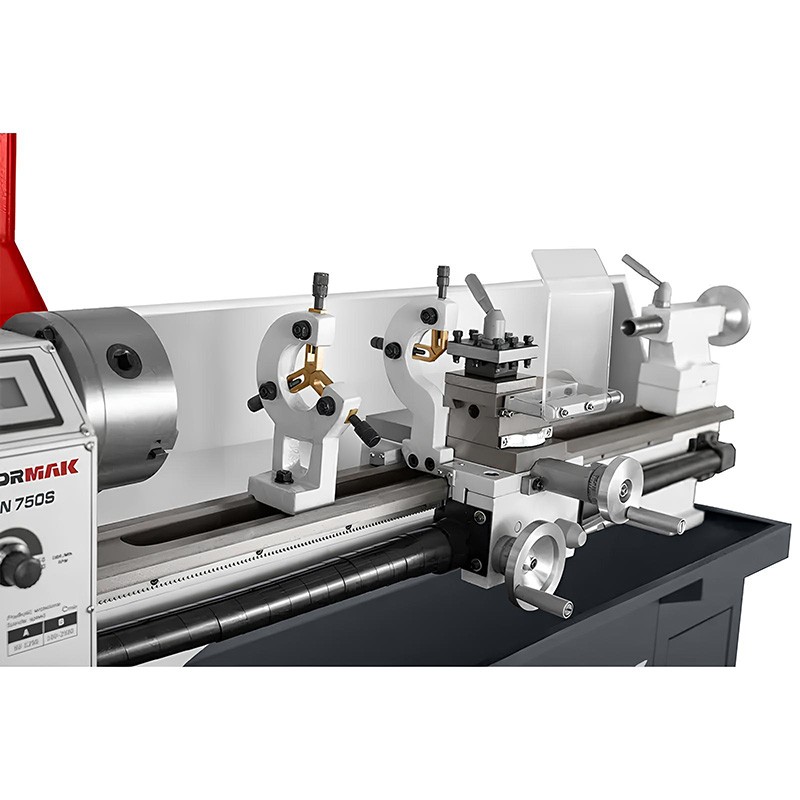

Conventional Universal Lathe CORMAK TYTAN 220x750S VARIO 230V with Stand

Conventional Universal Lathe CORMAK TYTAN 220x750S VARIO 230V with Stand – compact precision and full stability

CORMAK TYTAN 220x750S VARIO 230V with stand is a modern universal bench lathe equipped with stepless spindle speed control and a robust steel base. Its design has been optimised for efficiency and precision in metal machining. The electronic speed regulation and compact structure make it a reliable solution for both professional workshops and private users. The included stand provides additional stability, ensuring higher machining accuracy and operator safety.

Main advantages

• Stepless spindle speed control – allows precise adjustment of cutting parameters to the material type and machining requirements.
• Two working ranges – 50–1125 rpm for hard materials and 100–2500 rpm for high-speed precision turning.
• 1000 W DC motor – ensures smooth start-up, stable operation, and sufficient power for diverse tasks.
• LCD screen – displays the actual spindle speed for real-time process monitoring.
• Metric and inch threading – supports right- and left-hand threads, metric 0.4–3.5 mm, inch 8–44 TPI.
• Automatic feed – compliant with CE and DIN standards, improving both comfort and productivity.
• Steel stand – provides stable support, reduces vibration, and improves machining conditions.

Construction and technology

The CORMAK TYTAN 220x750S VARIO with stand is built on a rigid cast-iron frame ensuring high structural stability. The wide, hardened 100 mm bed guideways guarantee consistent accuracy even during long-term use. The spindle with a 38 mm through-hole and MK5 taper allows machining of longer workpieces and precise operation at high speeds. The version with an integrated stand eliminates the need for a separate workstation, allowing immediate setup and use.

Precision and performance

The compact lathe CORMAK TYTAN 220x750S VARIO is designed for users who value accuracy, repeatability, and ease of operation. Stepless spindle speed control and automatic feed ensure excellent surface finish and material efficiency. The machine operates quietly and smoothly, making it ideal for workshops and educational environments.

Applications

The model with a stand is recommended for:

• Mechanical and locksmith workshops,
• Prototype and R&D facilities,
• Technical schools and training centres,
• Service departments and precision repair workshops.

Thanks to its precision and versatility, this lathe is perfect for machining shafts, sleeves, rings, and for thread cutting and restoration.

Standard equipment

• 3-jaw chuck (125 mm)
• Fixed and travelling steady rests
• Change gears
• Dead centres MK2 and MK4
• Oil gun
• Chip tray
• Chuck and tool post keys
• Service tool kit
• Safety guards compliant with CE standards
• User manual
• CE Declaration of Conformity
• Steel stand for the lathe

Optional equipment

• 12×12 mm turning tool set (11 pcs)
• Live centre MK2
• Drill arbor MK2/B16
• HSS-Co5 cobalt drill set (1–13 mm)
• Universal coolant system
• Cutting oil ES-12 (1L)

Technical specifications

Choose CORMAK TYTAN 220x750S VARIO 230V with stand for a complete and reliable solution for precise metalworking. Contact our technical advisor or order online today.
