Manufacturer:
CORMAK

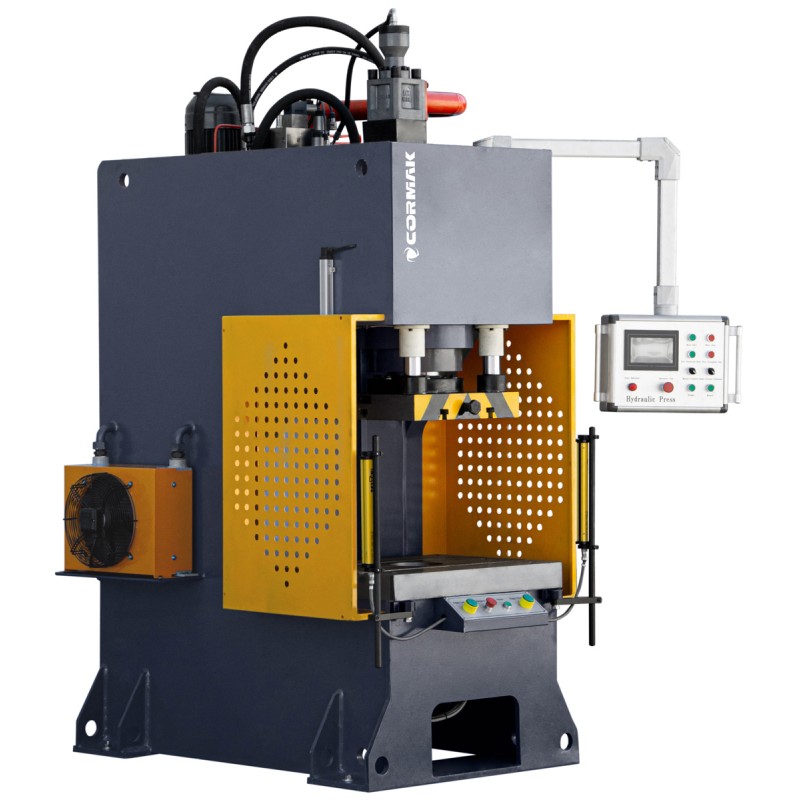

Hydraulic Eccentric Press CORMAK 40T

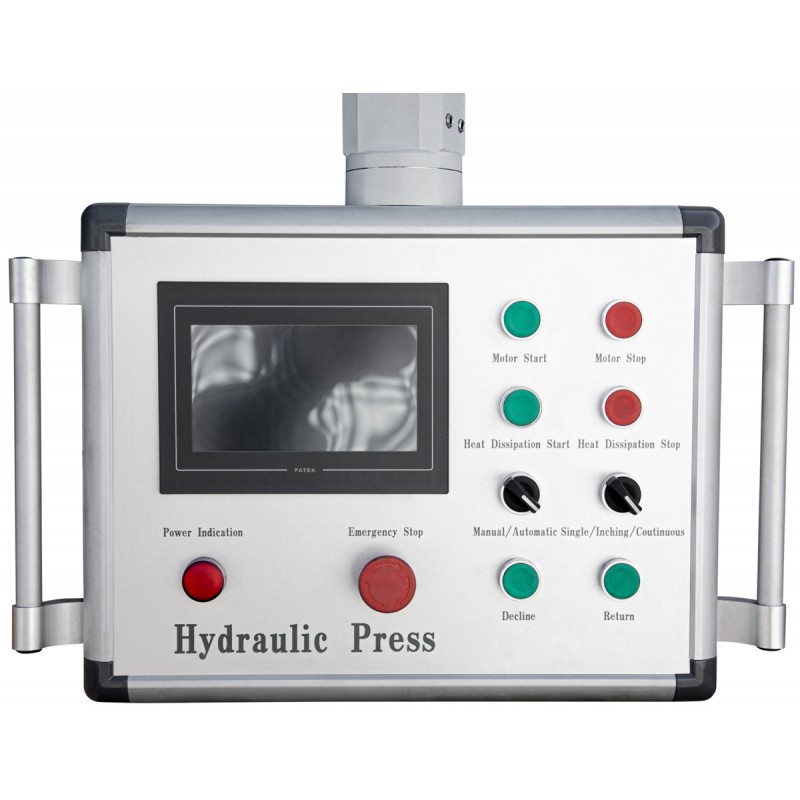

A solid and efficient hydraulic press with a 40-ton pressing force, ideal for bending, stamping, punching and straightening metal components. The C-frame design ensures easy access to the working area and high rigidity of the entire structure. The press is equipped with a precise PLC controller and touch HMI panel for simple programming and control of the working cycle. The hydraulic system based on reliable components guarantees smooth and safe operation, while position sensors ensure excellent repeatability and accuracy of operations.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Hydraulic Eccentric Press CORMAK 40T
- Reinforced machine construction
- Hydraulic unit and motor located at the top of the machine
- Manual / automatic operation mode
- Pressing force 40 Ton

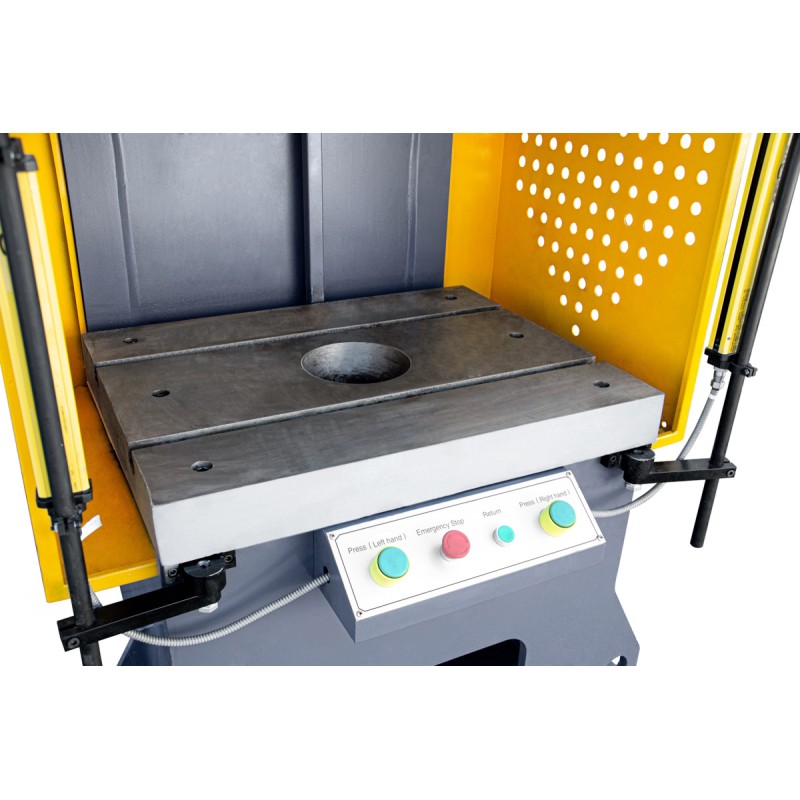

- Table 600 × 400 mm
- Hydraulic system cooling

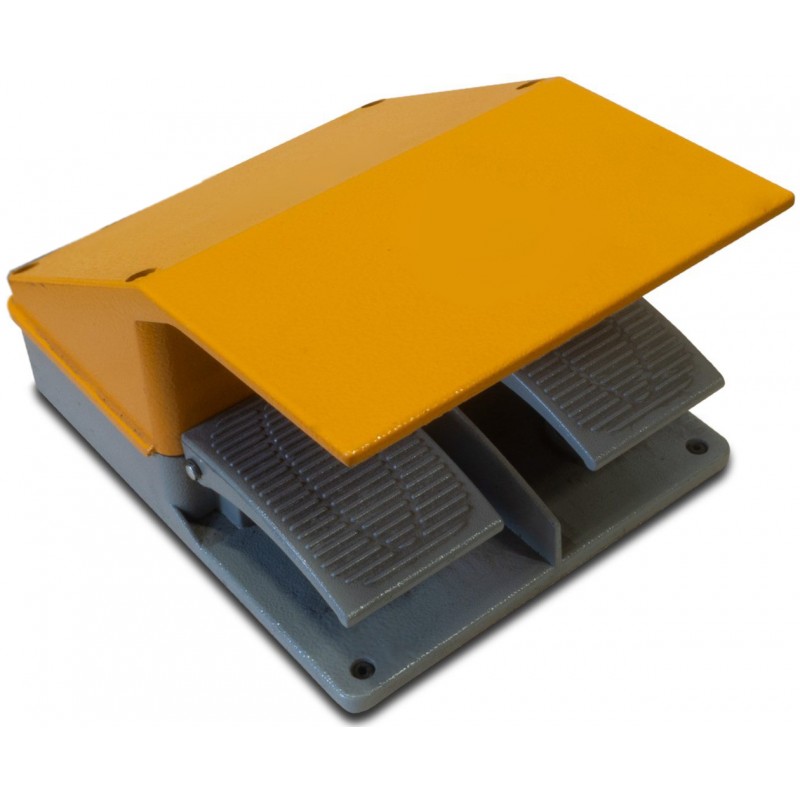

- Foot control switch – CE compliant
THE MACHINE MEETS ALL SAFETY STANDARDS AND HAS A CE CERTIFICATE
Technical parameters:
| Nominal pressure (kN) | 400 |
| Stroke regulator (mm) | 10–120 |
| Maximum stroke (mm) | 130 |
| Loading height (mm) | 140–200 |
| Feed rate (L/min) | 30–60 |
| Rapid travel speed (mm/s) | 230 |
| Working speed (mm/s) | 8 |
| Return speed (mm/s) | 180 |
| Worktable – width (mm) | 600 |
| Worktable – depth (mm) | 400 |
| Blanking hole (mm) | 150 |
| Throat depth (mm) | 260 |
| Ram – front/back (mm) | 320 |
| Die holder (mm) | 50 |
| Ram – left/right (mm) | 320 |
| Motor power (kW) | 5.5 |
| Width (mm) | 1100 |
| Depth (mm) | 1260 |
| Machine height (mm) | 1960 |
