Manufacturer:
CORMAK

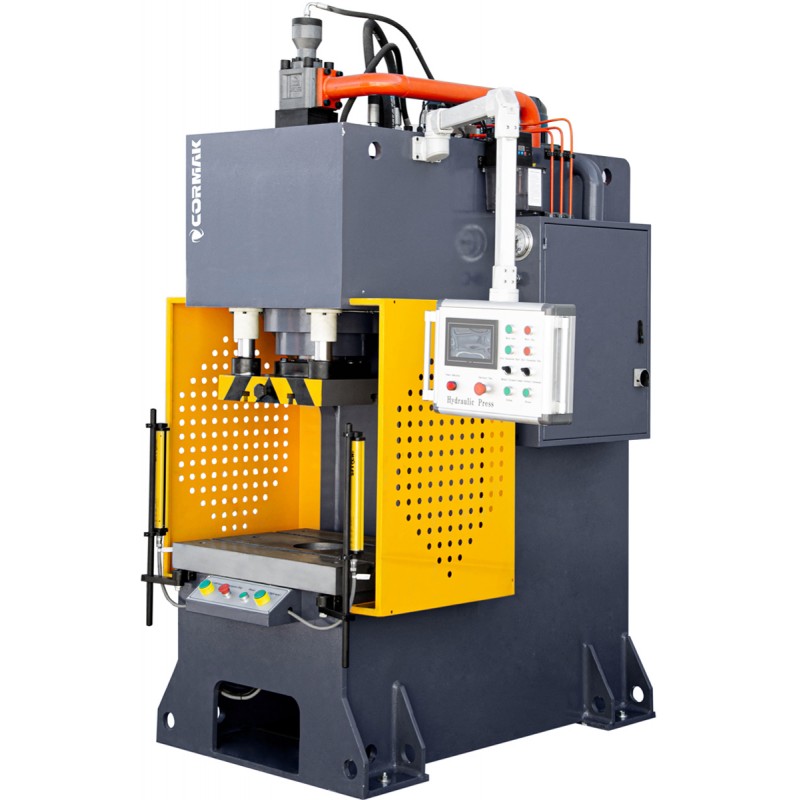

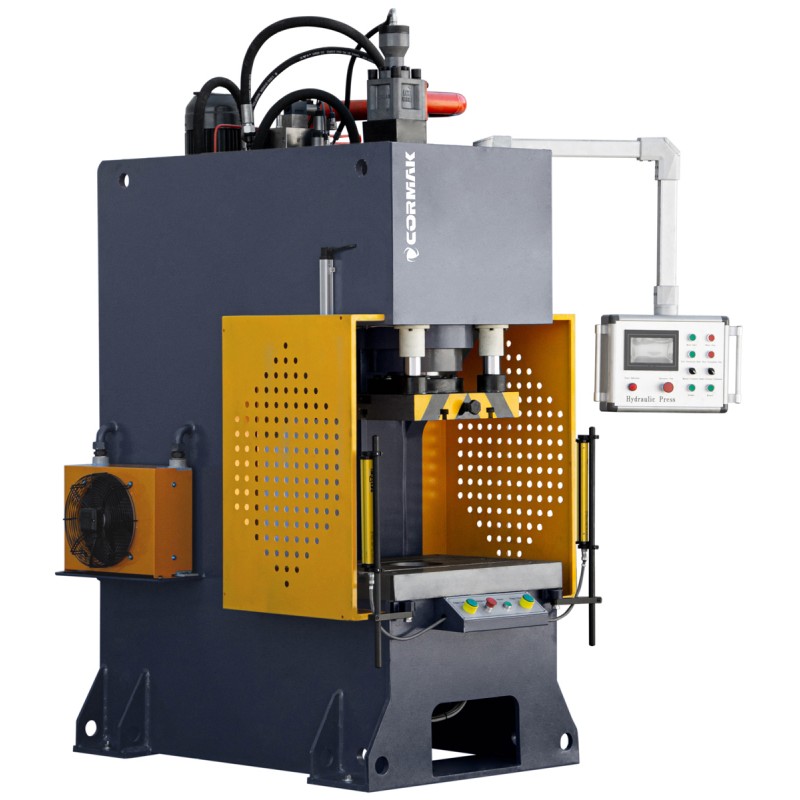

Hydraulic Eccentric Press CORMAK 60T

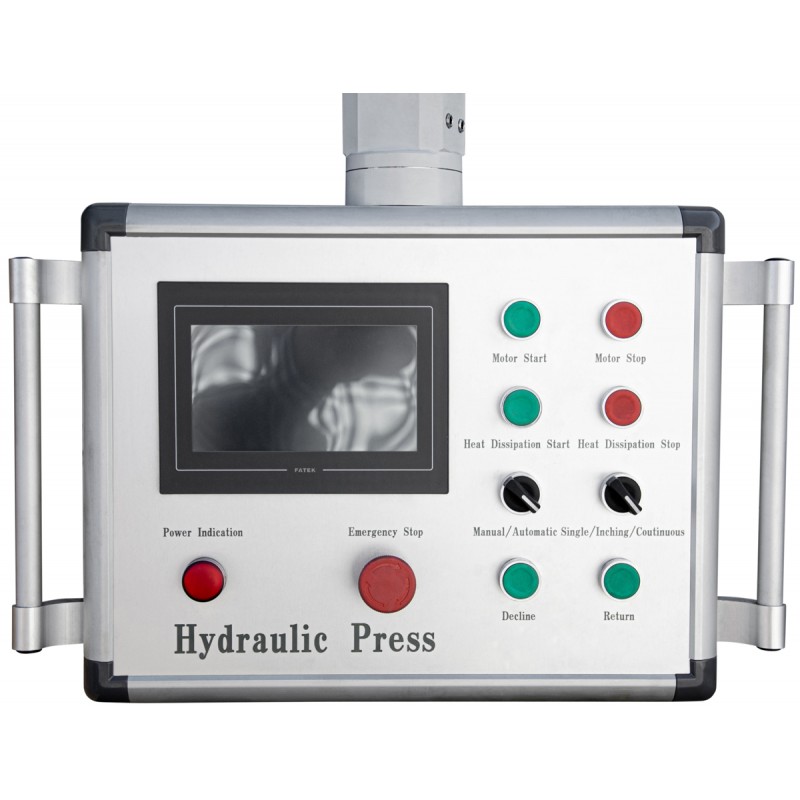

A solid and efficient hydraulic press with a 60-ton pressing force, ideal for bending, stamping, punching and straightening metal components. The C-frame design ensures easy access to the working area and high rigidity of the entire structure. The press is equipped with a precise PLC controller and a touch HMI panel for easy programming and control of the working cycle. The hydraulic system, based on reliable components, guarantees smooth and safe operation, while position sensors ensure high repeatability and accuracy of processes.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Hydraulic Eccentric Press CORMAK 60T
- Reinforced machine construction
- Hydraulic unit and motor located at the top of the machine
- Manual / automatic operation mode
- Pressing force 60 Ton

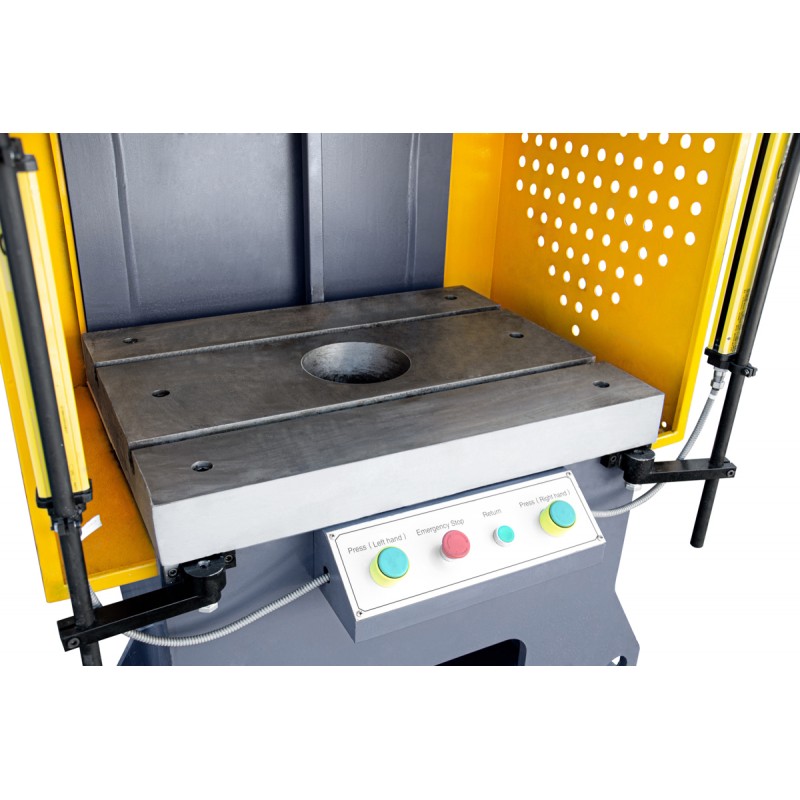

- Table 650 × 450 mm
- Hydraulic system cooling

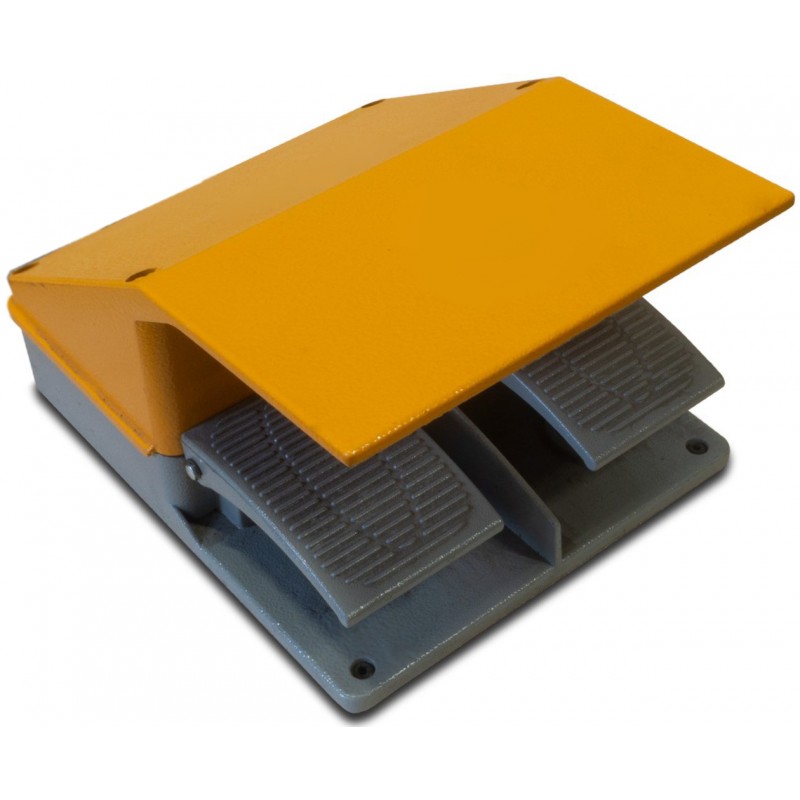

- Foot control switch – CE compliant
THE MACHINE MEETS ALL SAFETY STANDARDS AND HAS A CE CERTIFICATE
Technical parameters
| Nominal pressure (kN) | 600 |
| Stroke regulator (mm) | 10–120 |
| Maximum stroke (mm) | 130 |
| Loading height (mm) | 160–270 |
| Feed rate (L/min) | 30–60 |
| Rapid travel speed (mm/s) | 220 |
| Working speed (mm/s) | 8 |
| Return speed (mm/s) | 180 |
| Worktable – width (mm) | 650 |
| Worktable – depth (mm) | 450 |
| Blanking hole (mm) | 150 |
| Throat depth (mm) | 260 |
| Ram – front/back (mm) | 320 |
| Die holder (mm) | 50 |
| Ram – left/right (mm) | 320 |
| Motor power (kW) | 5.5 |
| Width (mm) | 1250 |
| Depth (mm) | 1450 |
| Machine height (mm) | 2270 |
