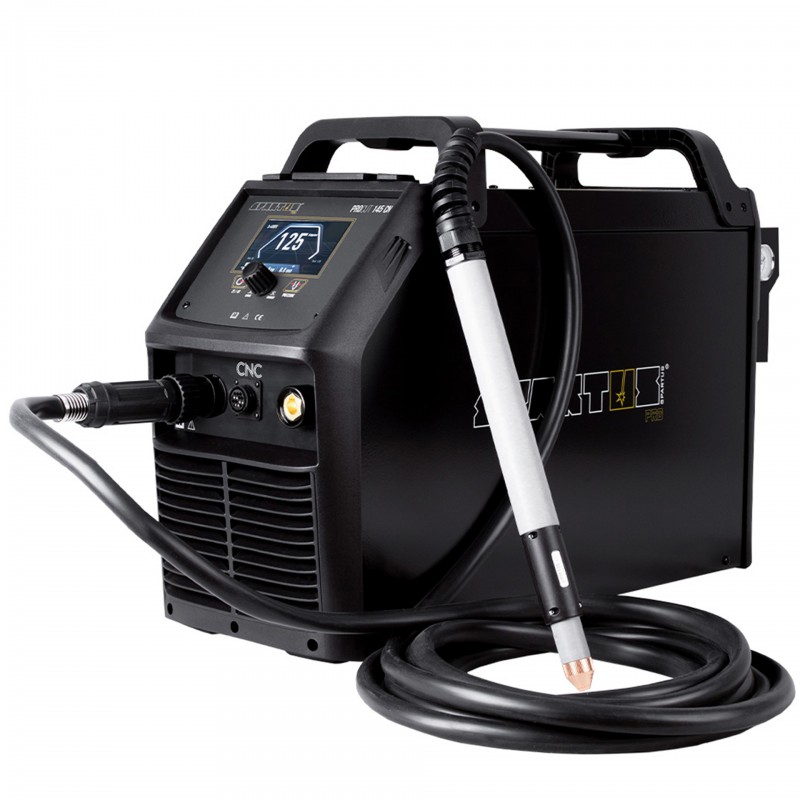

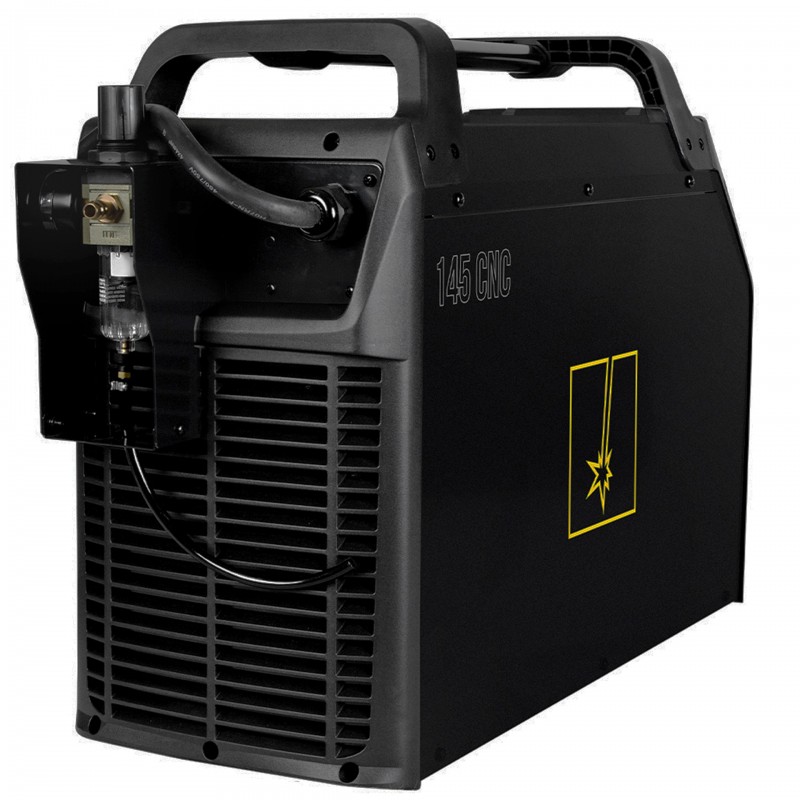

CNC Plasma Cutter SPARTUS® ProCUT 145CNC

ProCUT 145CNC: Modern Plasma Cutting Machine with a Maximum Cutting Thickness of 60 mm

SPARTUS® ProCUT 145CNC is a technologically advanced plasma cutting machine that sets new standards in precise cutting of metals and other electrically conductive materials. Ideal for demanding industrial applications, it offers an impressive maximum cutting thickness of 60 mm. Thanks to its three-phase 400V power supply, this cutter is suitable for intensive operation under various industrial conditions.

A key advantage of the SPARTUS® ProCUT 145CNC is its integrated CNC control socket, making it ideal for applications requiring high precision and repeatability of cuts. With the latest technology, the unit achieves outstanding cutting quality at a cutting current of 125A. The 100% duty cycle ensures reliability and performance even during the most demanding projects.

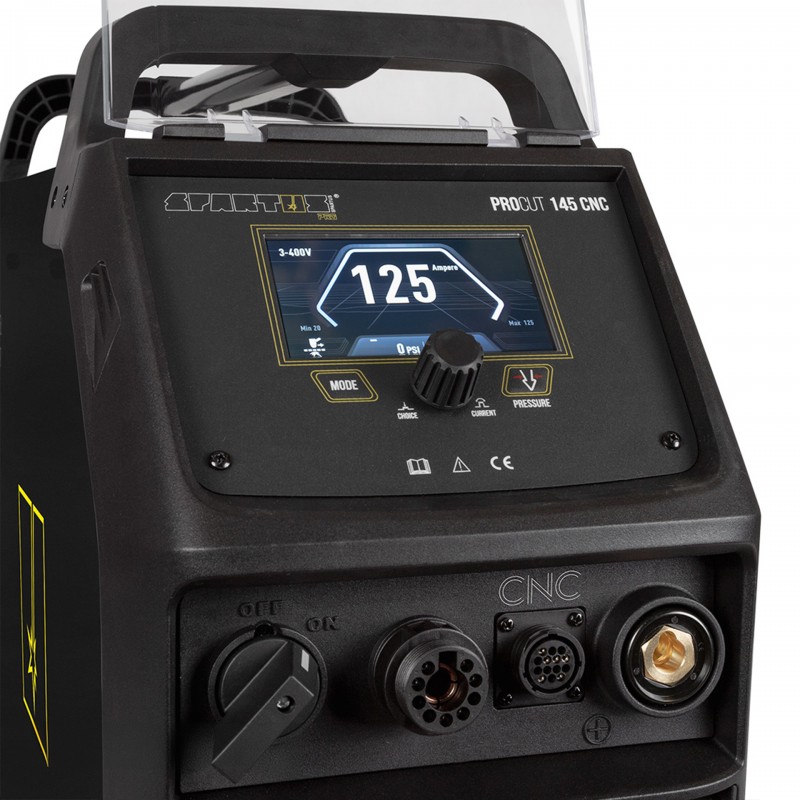

The cutter is equipped with an innovative pilot arc ignition system without high frequency (HF), ensuring excellent cutting quality and minimised wear of consumables, extending the lifespan of the device. The advanced control panel with an LCD display allows easy and intuitive adjustment of cutting parameters, including smooth regulation of cutting current and optimal pressure settings.

For even greater flexibility, the SPARTUS® ProCUT 145CNC features a 2T/4T mode switch, allowing the working method to be adapted to a specific task.

Operating Modes

The SPARTUS® ProCUT 145CNC offers three main operating modes that meet the diverse needs of users: standard cutting, intermittent cutting, and gouging.

Standard Cutting: The basic mode, in which the plasma stream continuously cuts through the material, enabling fast and precise cutting of metal or other conductive materials into the required shapes and dimensions. This is the most commonly used option for tasks requiring smooth and even cutting edges.

Intermittent Cutting: A specialised operating mode that is particularly useful when cutting irregular surfaces such as mesh. Thanks to this function, the cutter maintains a stable plasma arc even when the material contact is interrupted. This allows continuous cutting without manually reigniting the arc, which greatly facilitates and speeds up the process while minimising the risk of equipment damage.

Gouging: An advanced technique allowing the creation of grooves or channels in materials to a specific depth. This mode is especially useful for preparing joints before welding, enabling precise and controlled removal of material or defective welds.

SPARTUS® ProCUT 145CNC is a professional-grade machine, reflecting the SPARTUS® brand’s commitment to providing top-quality products. Used in production sectors, heavy industry, and as a reliable power source for CNC plasma tables, the SPARTUS® ProCUT 145CNC represents an exceptional solution for those seeking efficient and precise plasma cutting performance.

Technical Data
