Reference:
KP1-303
Manufacturer:
CORMAK

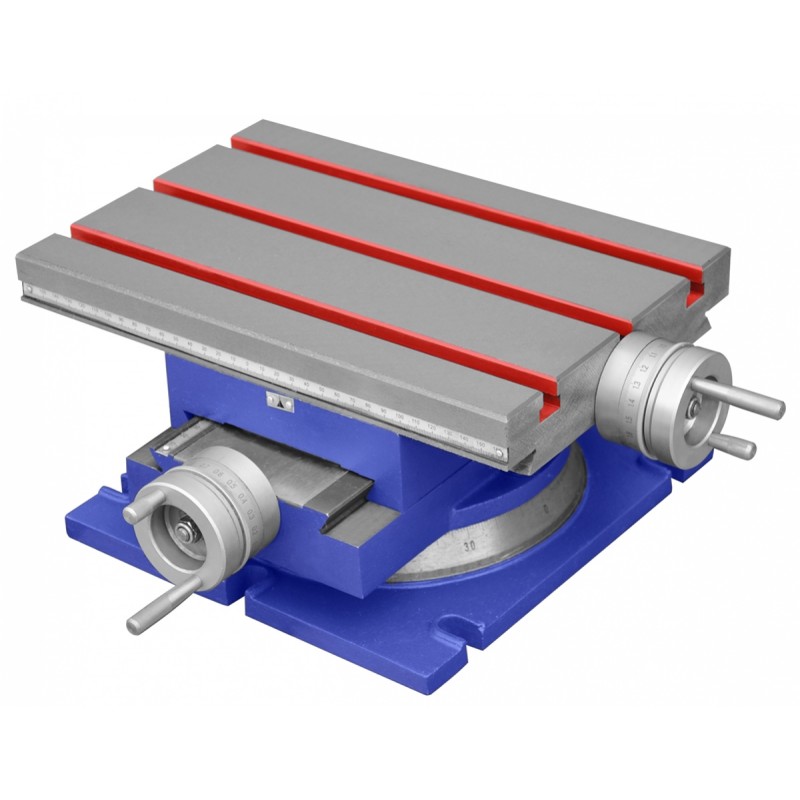

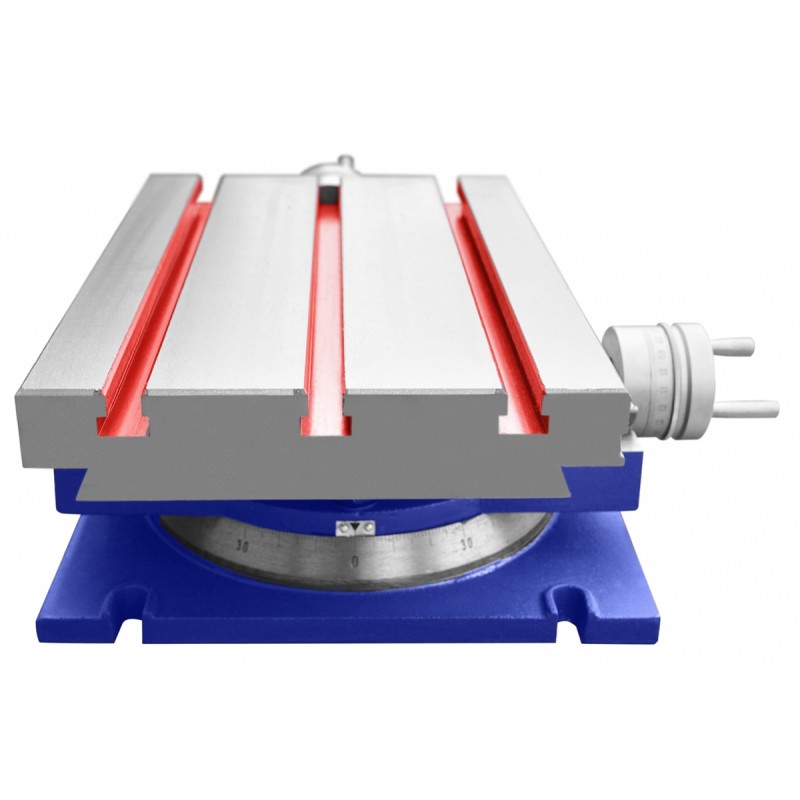

Precision cross slide table with leadscrew cover and dovetail slideways improving rigidity and eliminating backlash.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Description of the cross slide table
- The cross slide table is solidly made from high-quality materials.
- Ideally supports drilling, milling and similar work, providing precise positioning during boring or drilling.

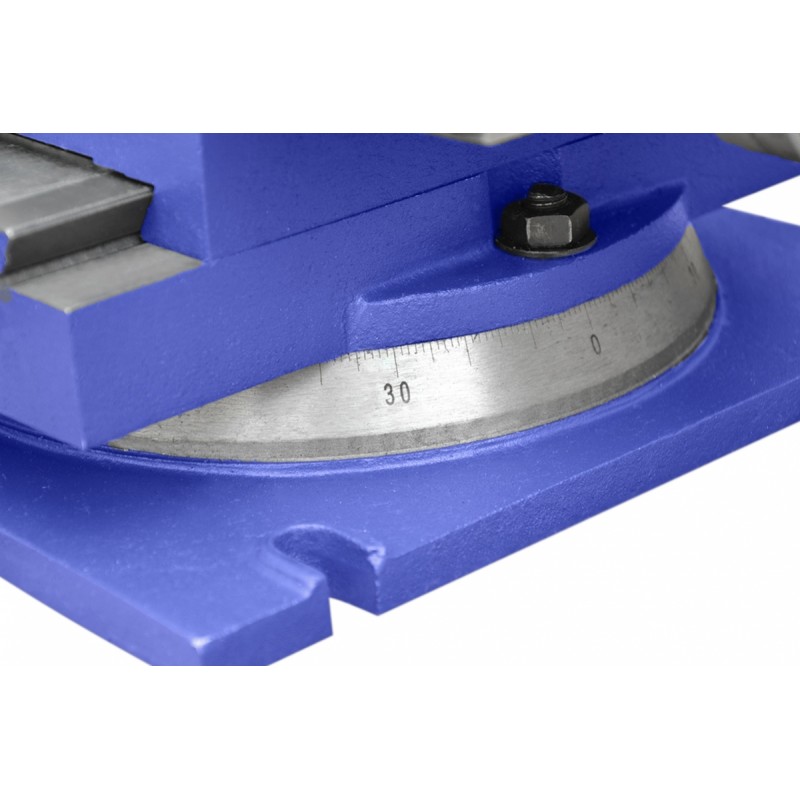

- The cross slide table is equipped with a rotary base with 360°/3 mm scale.
- The leadscrew cover prevents chips from entering the feed mechanism.
- An additional advantage is the rack scale, allowing continuous visibility of the table position in the X and Y axes.
- Vernier 4 mm/0.02 mm
Technical specifications

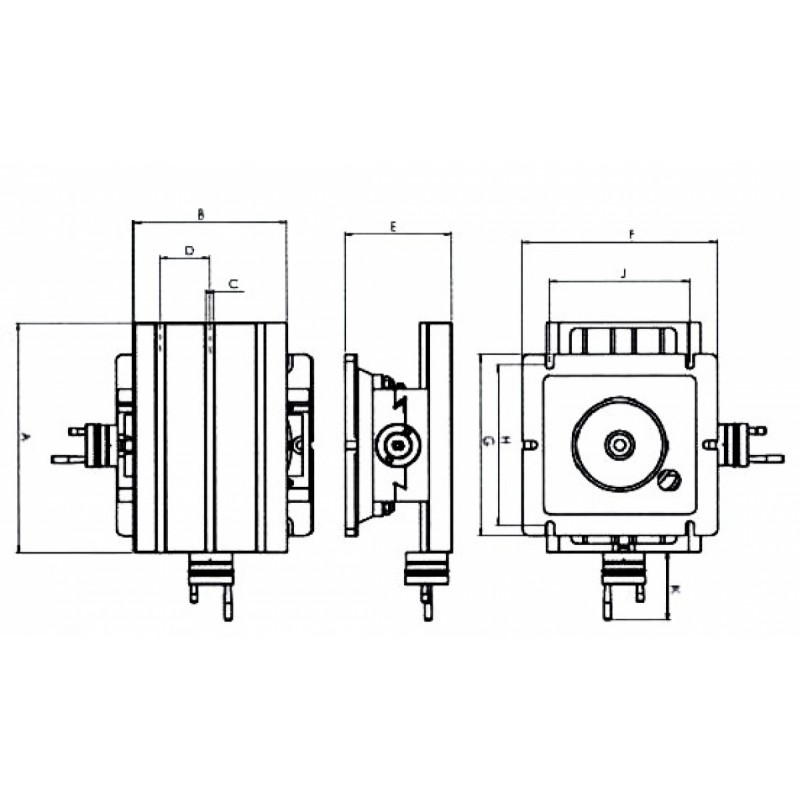

| A | B | C | D | E | F | G | H | J | K |
Travel X-axis |
Travel Y-axis |
Dimensions | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
330 [mm] |
220 [mm] |
12 [mm] |
72 [mm] |
155 [mm] |
280 [mm] |
260 [mm] |
220 [mm] |
200 [mm] |
96 [mm] |
190 [mm] |
100 [mm] |
410x350x210 [mm] |
33 [kg] |
