Reference:
5070z
Manufacturer:
CORMAK

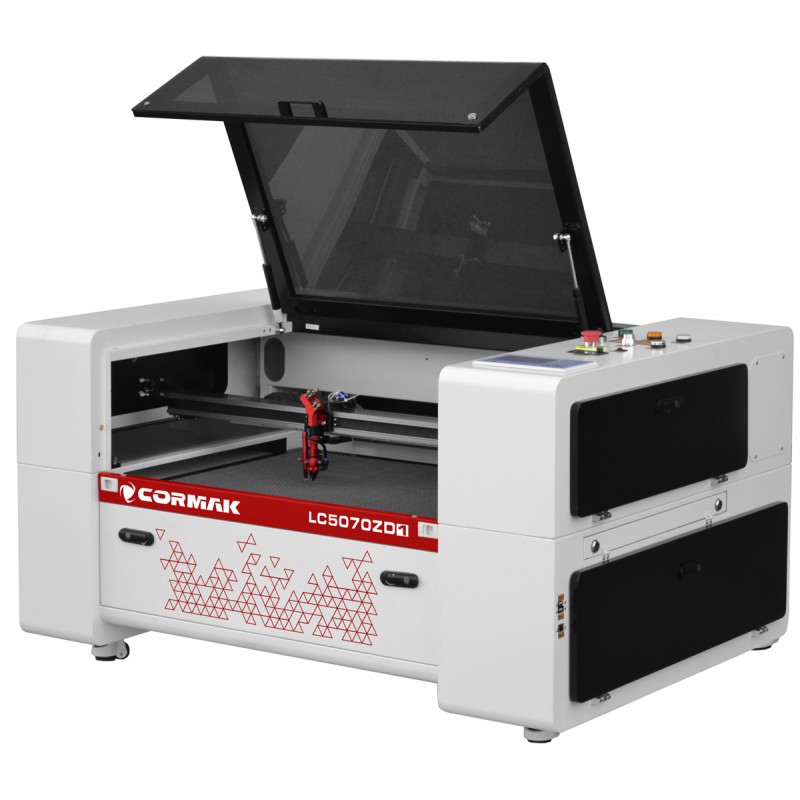

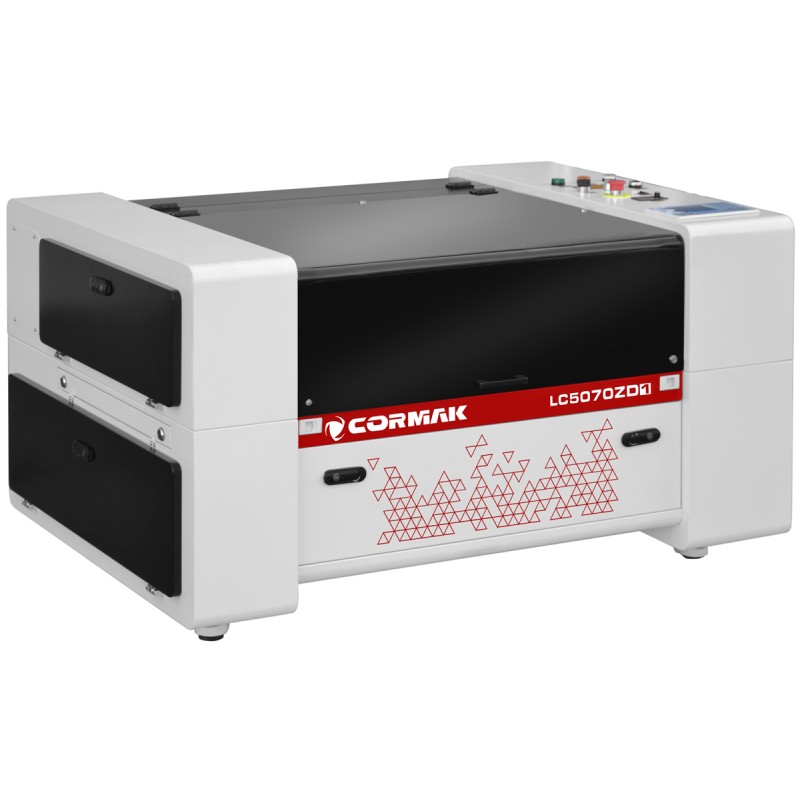

Ideal for engraving, marking and cutting. The working area of the laser plotter measures 700x500 mm.
Included with the laser plotter: red dot pointer, honeycomb table, fume extraction system, waste drawer, integrated compressor activated during operation, fan and cooling unit.
The advantage of this engraving machine is the “through table”, which allows processing of materials of any length, 700 mm width and 100 mm height, or any width and length of 500 mm.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
CO2 ULTRAFAST LASERS
The latest series of high-speed lasers for cutting and engraving. Save your time and increase your competitiveness.
The fast Ultrafast laser series is your guarantee of success!
- Up to 200% faster compared to standard models available on the market.
- Innovative drive system ensures much higher precision, especially when processing fine, complex details.
- Only top-quality components from the best, proven manufacturers are used.
- Guaranteed original RECI brand tubes.
LASER CUTTING PROCESS
Laser cutting is a modern and widely used material processing technique. The cutting tool in this technique is a laser beam with high energy density that cuts through the material.
Course of the laser cutting process
The process is based on the interaction of the laser beam at its focal point, where its power is at its highest, causing rapid melting, vaporisation, ablation and heating of the material up to ignition temperature. The point of impact of the beam on the material is blown by a fast-flowing gas that removes the molten material along the axis of the beam.
NEW!
MACHINE EQUIPPED WITH AN UPGRADED CONTROLLER MODEL
- Independent control of 4 axes,
- Larger 5" TFT display,
- 13 languages,
- Numeric keys for easy input of cutting parameters,
- External buttons for direct control of the “Z” and “U” axes (significantly speeding up operation),
- External “FOCUS” button – focus adjustment with one press without searching through menus,
- Ability to handle larger file sizes.
- Significantly higher performance compared to previous controller models.
- Possibility of remote control similar to other CNC machines.
| LASER POWER | 80 W (RECI W1 tube) (option*: 90W, 130W, 160W, 180W) |
| WORKING AREA | 700 x any / any x 500 mm |
| DIMENSIONS | 1320x950x750 mm |
| WEIGHT | 205 kg |
| POSITIONING ACCURACY | ± 0.05 mm |
| VOLTAGE | 230V |
| POWER | 800W |
| OPERATING TEMPERATURE | 0–45 ℃ |
| OPERATING SYSTEM | Windows 95, 98, 2000, XP, Vista, 7, 8, 10 (32/64 bit) |
| INPUT FILE FORMATS | PLT, AI, DST, DXF, BMP |
| COMPATIBLE SOFTWARE | CorelDraw, AutoCAD, Photoshop |
| DRIVE TYPE | Stepper motors |
| TUBE COOLING | Chiller CW3000 |
| MATERIAL COOLING | Air |
Professional liquid chiller included
Equipped with a cooling medium which, when the liquid reaches the alarm temperature, rapidly cools the laser tube system using the integrated compressor unit.
Features of the LASER LC5070ZD1 set
- Honeycomb table indispensable for cutting materials – designed for smoke extraction.
- Knife table ideal for cutting materials such as acrylic or aspect-type sheets.
- Lower extraction system for fume removal.
- Waste drawer.
- Electrically lowered table – adjustable from the program or control panel, can be lowered up to 300 mm, allowing engraving of tall objects.
- “Red dot pointer” precisely shows the working position of the laser beam – essential for positioning.
- Integrated compressor – activated only during operation, protects the lens from contamination and cools the material during cutting.
- Fume extraction fan.
- Laser head 80W (RECI W1 tube) (option*: 90W, 130W, 160W, 180W).
- Professional chiller.
- USB communication allows connection to a computer or laptop via USB port. The machine is equipped with an LCD display that allows, among others, adjustment of table height.
- USB port and built-in memory enable transferring work parameter files directly to the machine without computer operation.
- 512MB USB memory for file transfer.
Access to the table from four sides
Four-side material feeding allows you to cut and engrave material on a large scale.
U.S. II-VI optical lenses
American optics from American Photonics. Proven 14% better transmission compared to other optical systems. High-durability mirrors and aspheric focusing lenses manufactured by II-VI, USA.
High sharpness and transmission rate. The lenses not only ensure machine quality but also allow the optical system to operate for a long time with high efficiency and low cost.
Dual platforms for cutting and engraving
Includes both a knife table and a honeycomb table.
Applications
Wood, acrylic, plastics, textiles, paper, leather, rubber and other non-metallic materials.
We are a certified supplier of RECI® CO2 tubes
