CO₂ Flatbed Laser Cutter and Engraver CORMAK LC2050EVO

LASER CUTTING PROCESS

Laser cutting is a modern and widely used technique for material processing. The cutting tool in this technology is a high-energy-density laser beam that cuts through the material.

Laser cutting process sequence

The laser cutting process is based on the interaction of the laser beam at its focal point, where its power is the highest, causing rapid melting, evaporation, ablation and heating of the material to ignition temperature. The area where the beam hits the material is flushed with a fast-flowing gas, which, moving along the beam axis, removes the molten material.

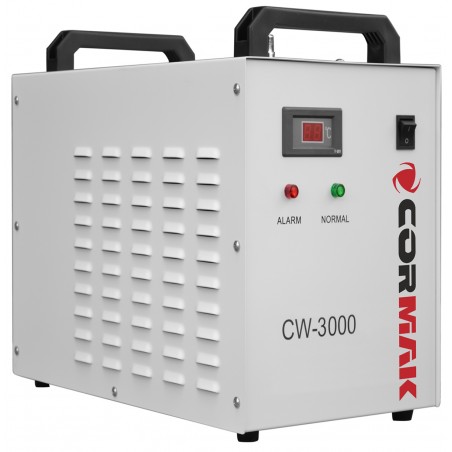

Professional liquid chiller included

It contains a cooling medium which, when the liquid reaches the alarm temperature, allows the built-in compressor to quickly cool the laser tube’s cooling system.

Features of the LASER-2050EVO set

• Blade table — ideal for cutting materials such as plexiglass, aspect, etc.
• Two lower fume extractors perform the exhaust function.
• Waste drawer
• "Red dot pointer" — precisely displays the laser beam working point, essential for positioning.
• Integrated compressor — activated only during operation, protects the lens from contamination and cools the currently cut area of the material.
• Fume extraction fan.

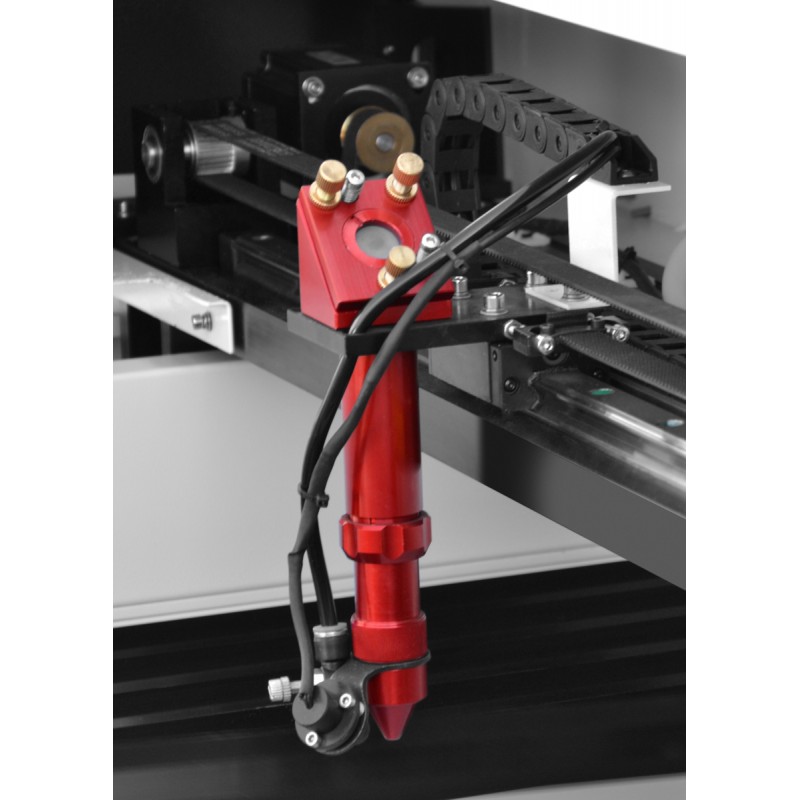

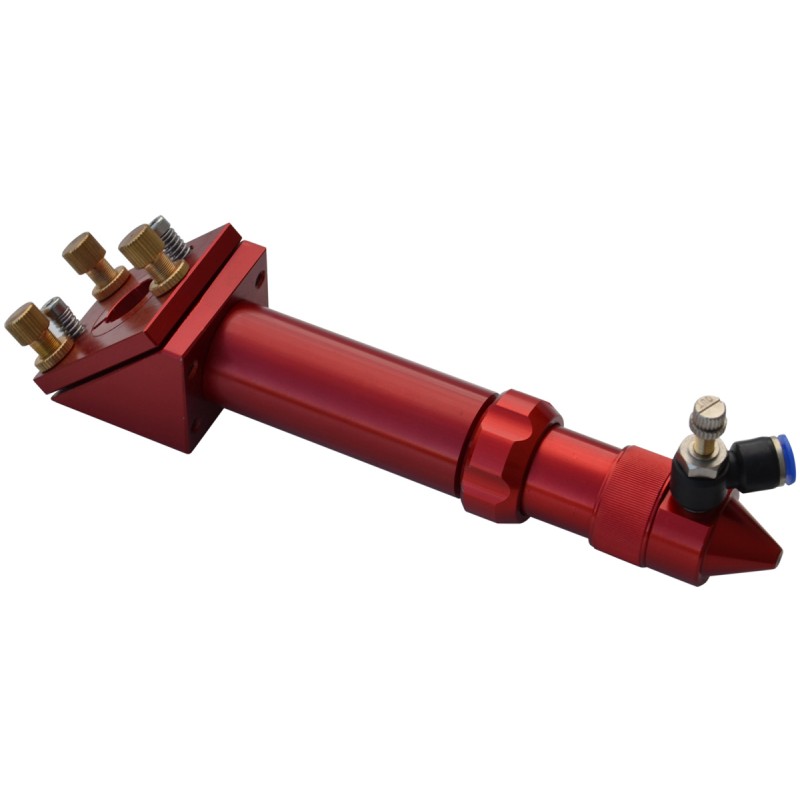

• Laser head with 160W (RECI W6 tube) (option*: 60W, 80W, 90W, 130W, 180W).
• Professional chiller.
• USB communication — allows connection of the machine to a portable computer (notebook) via USB port. The machine also features an LCD display that allows, among other things, table height adjustment.
• USB port — built-in memory enables transferring files with operating parameters directly to the device without using a computer.
• USB memory 512MB for file transfer.

U.S. II-VI optical lenses

High sharpness and high transmittance. The lenses not only ensure the quality of the device but also allow the optical system to work for a long time with high efficiency and low maintenance costs.

Applications

The machine meets the requirements for cutting and engraving large quantities of clothing fabrics, leather, wood, acrylic, paper and other non-ferrous materials.

We are a certified supplier of RECI® CO₂ tubes

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
