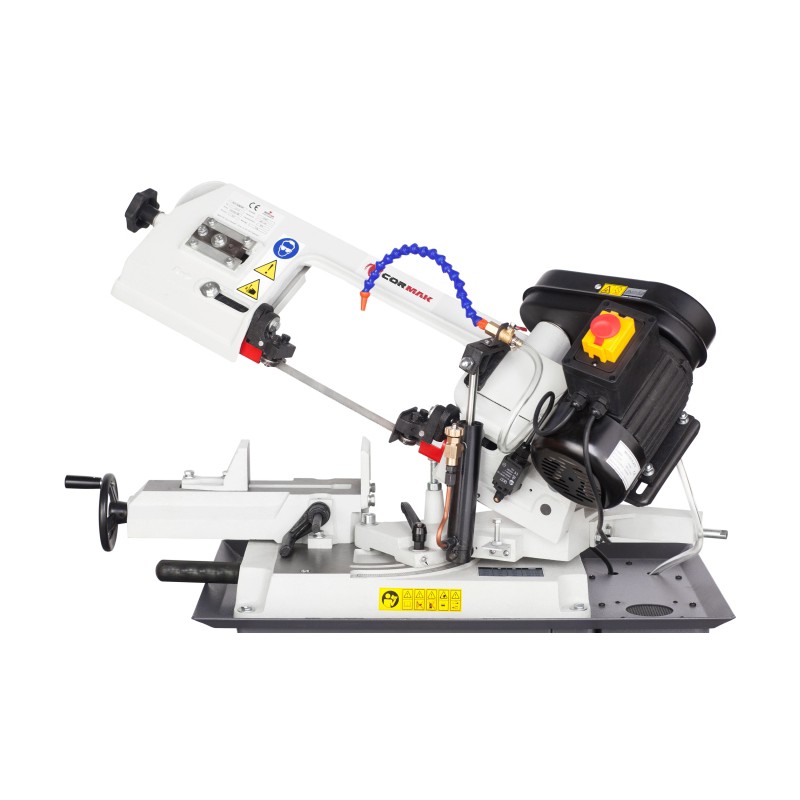

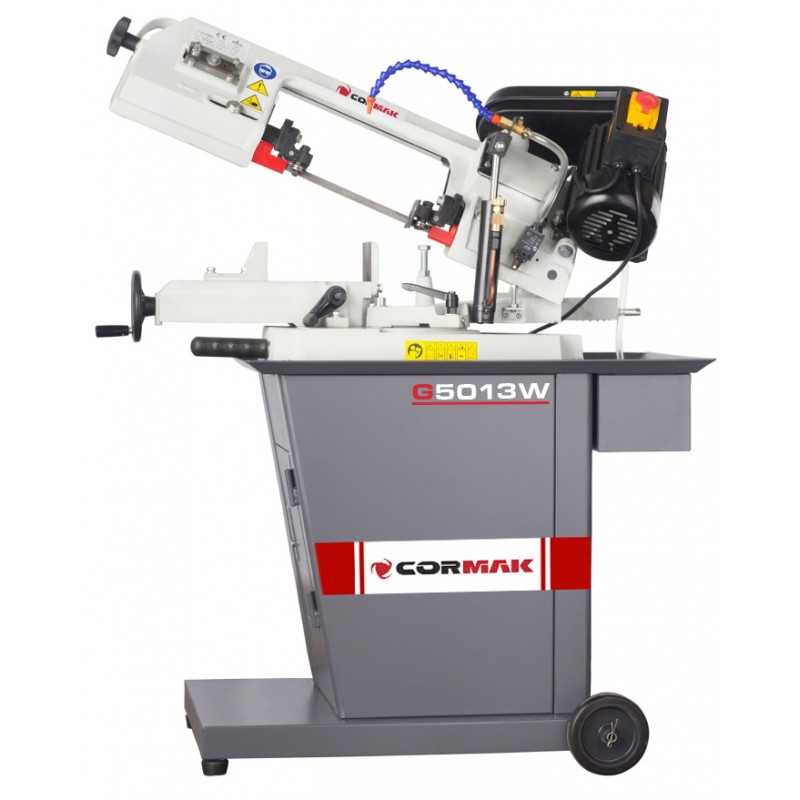

CORMAK G5013W 400V band saw with cooling

Machine description

Affordable band saw for metal with optimal cutting range, designed for professional craftsmen, distinguished by efficiency and easy handling. Arm swivelling in both directions is a very big advantage in angled cutting. Despite small dimensions, its big weight makes it very stable and vibration-free during cutting larger materials. Arm construction modified in such a way that the horizontal band saw can be quickly changed into a vertical band saw with a workbench. It is used not only for cutting metal, but can also serve as a vertical jigsaw machine for carpentry. Straight cut is achieved by a set of bearings guiding the band. Machines are equipped with a limiting switch and ON/OFF switch compliant with IP54. Swivelling saw frame for double bevelling within -45^o - + 60^o. Hydraulic cylinder for stepless arm adjustment.

Product features

• Machine arm made of shaped ductile iron, securing rigidity and absorbing all vibrations
• Three speeds of band, adjustable via blocking strip

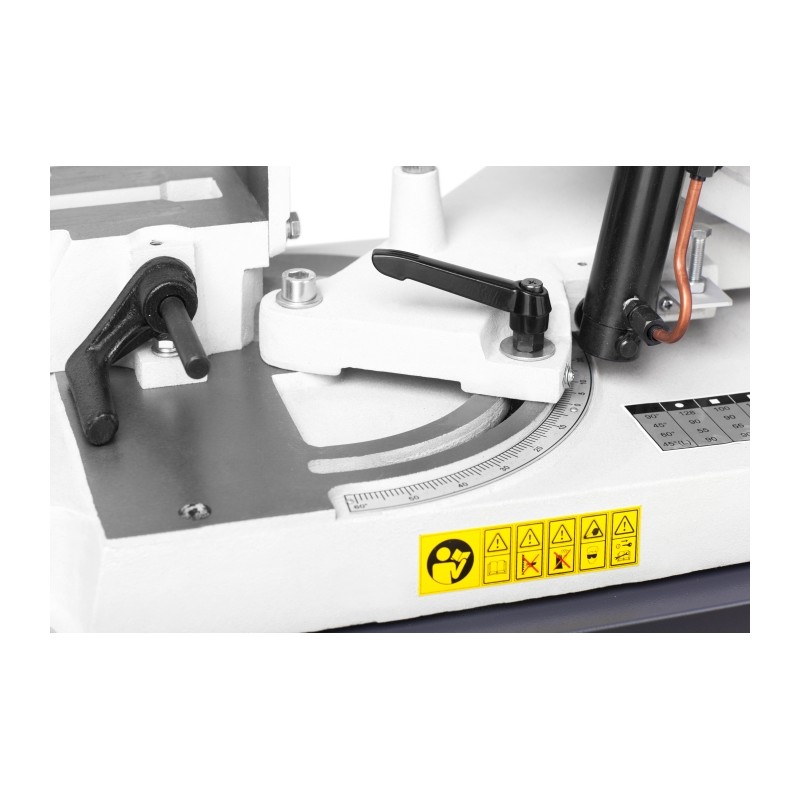

• Swivelling saw frame for double bevelling at -45^o – 60^o angles
• Appropriate band tilt angle ensured by roller bearings

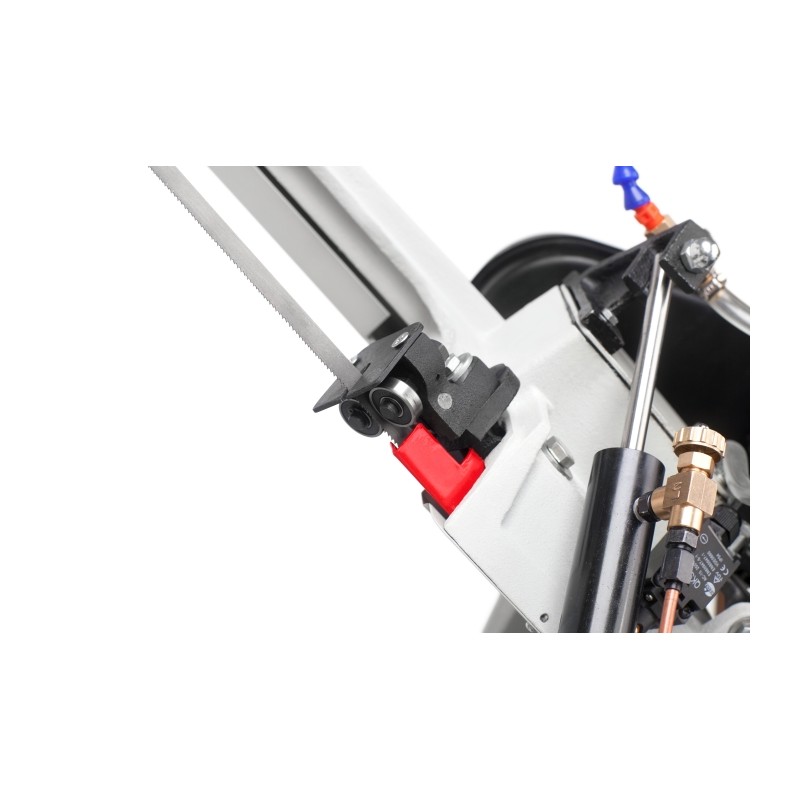

• Straight cut provided by a set of bearings guiding the band
• Cast iron worktable with a vice for material clamping, to which the machine arm is fixed, ensure machine stability
• Electric installation meets all CE requirements. The machine is equipped with a switch-off stopping the machine after cutting process is finished, an emergency button compliant with IP54
• The machine by default is equipped with a quick-clamping vice and a limiter of workpiece
• Band saw equipped with a closed circuit cooling system

Technical data

Angle 0° 125 mm 150×100 mm 120×120 mm 45° 95 mm 95×76 mm 85×85 mm 60° 50 mm 56×50 mm 45×45 mm

Default equipment

• Band saw with German RÖNTGEN blade
• Automatic limiting switch
• Table for vertical cuts
• Quick-clamping vice
• Material limiter
• Machine base
• Cooling system
