Wood Surface Planer CORMAK MB150

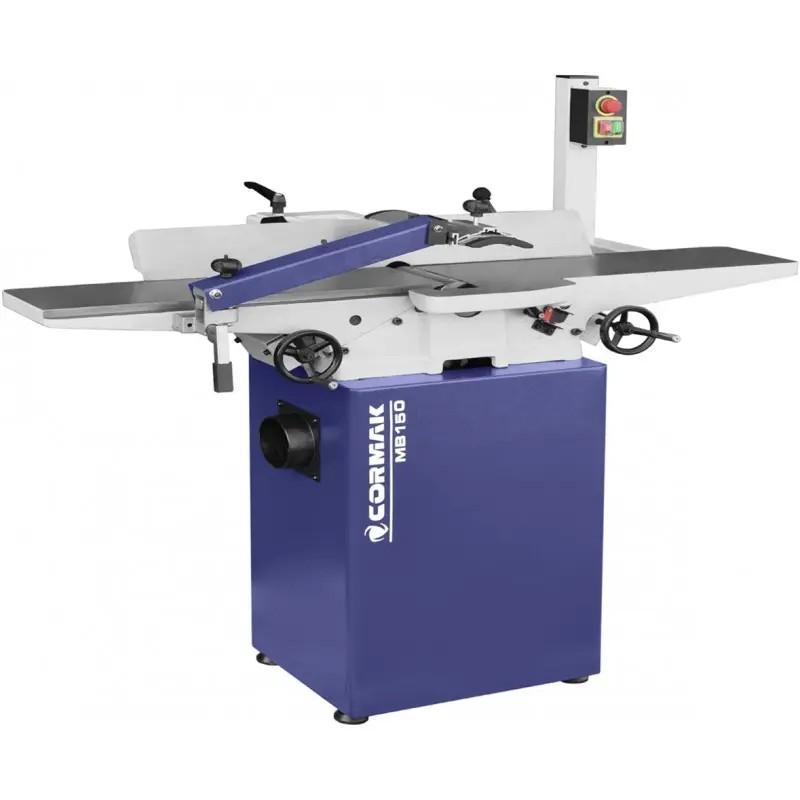

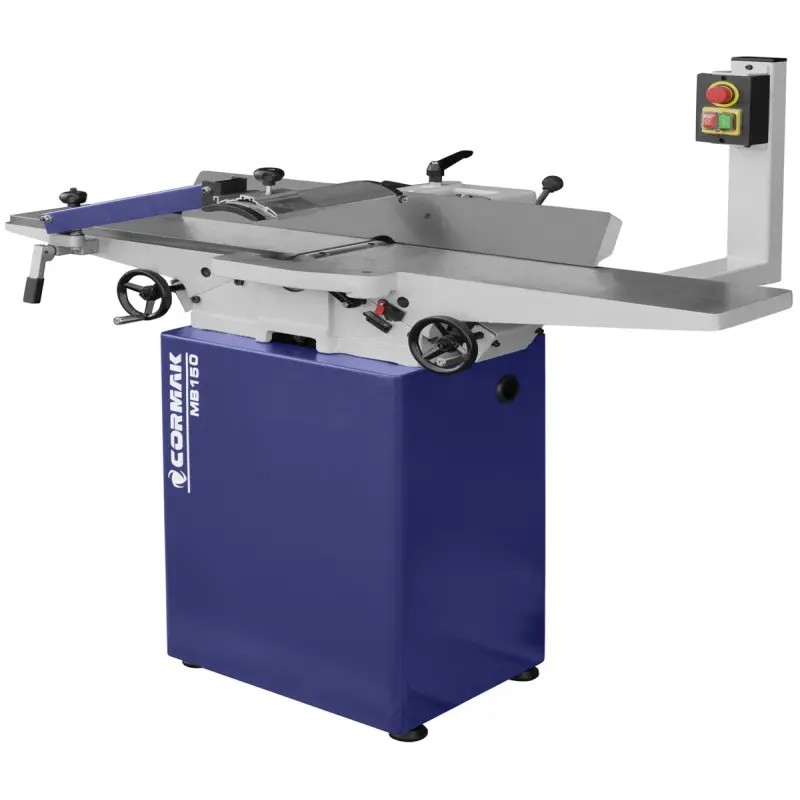

CORMAK MB150 surface planer is a compact yet solid machine designed for precise levelling of wooden workpiece surfaces. Its main purpose is to give machined materials a perfectly flat surface ready for further processing stages. Thanks to its robust construction, ground cast-iron tables and three-knife cutterblock, the wood surface planer provides a high level of accuracy and repeatability for both craft and semi-professional applications.

Main advantages of the CORMAK MB150 machine

• Three knives on the cutterblock – provide a smooth and precise surface after just one pass of the material.
• Cast-iron worktable – made of high-grade cast iron, providing stability, rigidity and resistance to deformation.
• Safe and convenient operation – safety switch mounted on an arm, easily accessible during operation.

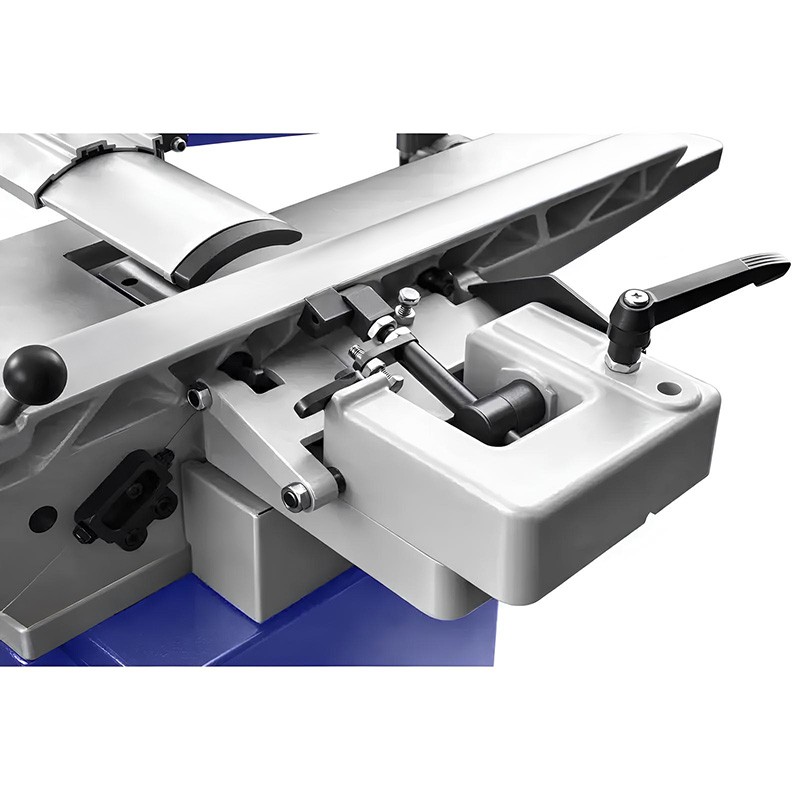

• Adjustable cutterblock guard – enables precise adjustment of the guard height, angle and extension, increasing operator safety.
• Noise reduction – noise dampers integrated into the planer tables reduce the noise level during operation.
• Compact dimensions and stability – despite its compact size, the machine weight of 105kg provides rigidity and helps eliminate vibration.

Construction and technology

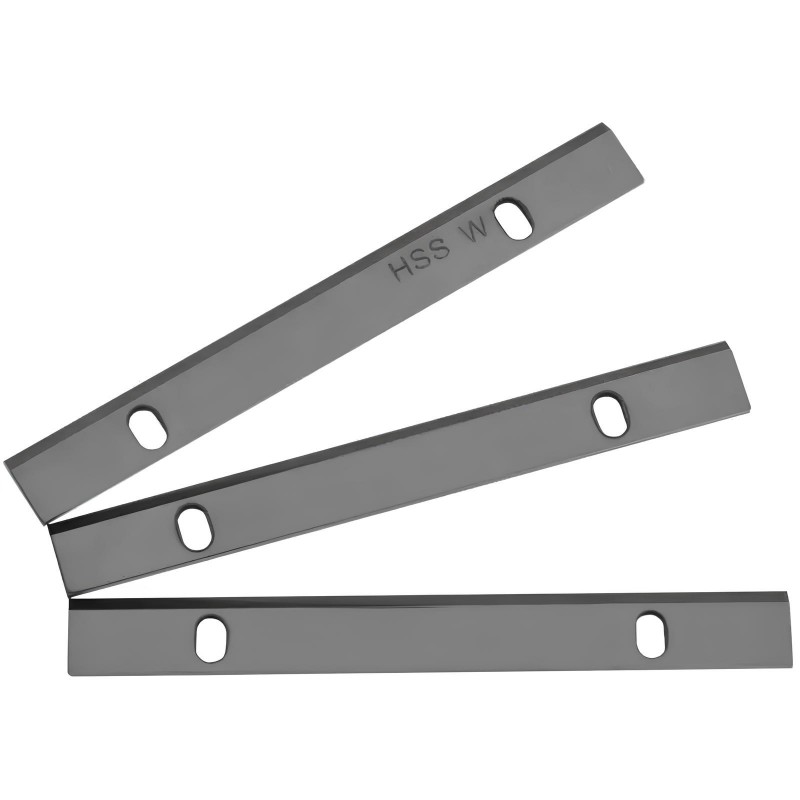

CORMAK MB150 planer is built around a cast-iron body that provides high durability and resistance to deformation. Working components such as the Ø62mm planer cutterblock are equipped with three replaceable knives measuring 170 x 15 x 3mm. This helps maintain high cutting accuracy and makes tool maintenance easy. The adjustable tilting fence enables the material to be positioned at an angle of up to 45°, allowing a wider range of applications in everyday woodworking.

Precision and operating efficiency

The machine is powered by an S1 1.1kW / S6 1.5kW motor, with the cutterblock reaching a speed of 4,500rpm. These operating parameters ensure smooth and efficient machining of softwood, hardwood, strips, beams and boards. A maximum working width of 152mm and a planing depth of up to 13mm make the MB150 highly suitable for precise preparation work before further material processing.

Applications

The MB150 surface planer is designed for:

• craftspeople and joiners who work with solid wood on a daily basis,
• service and model-making workshops,
• ambitious home users requiring stability and precision,
• preliminary machining of strips, boards, beams and bonded components.

Thanks to its high accuracy and solid construction, the MB150 planer is a tool that can significantly improve the quality of wooden components prepared for subsequent operations such as joining, gluing or routing.

Standard equipment

• three-knife planer cutterblock,
• adjustable planer cutterblock guard,

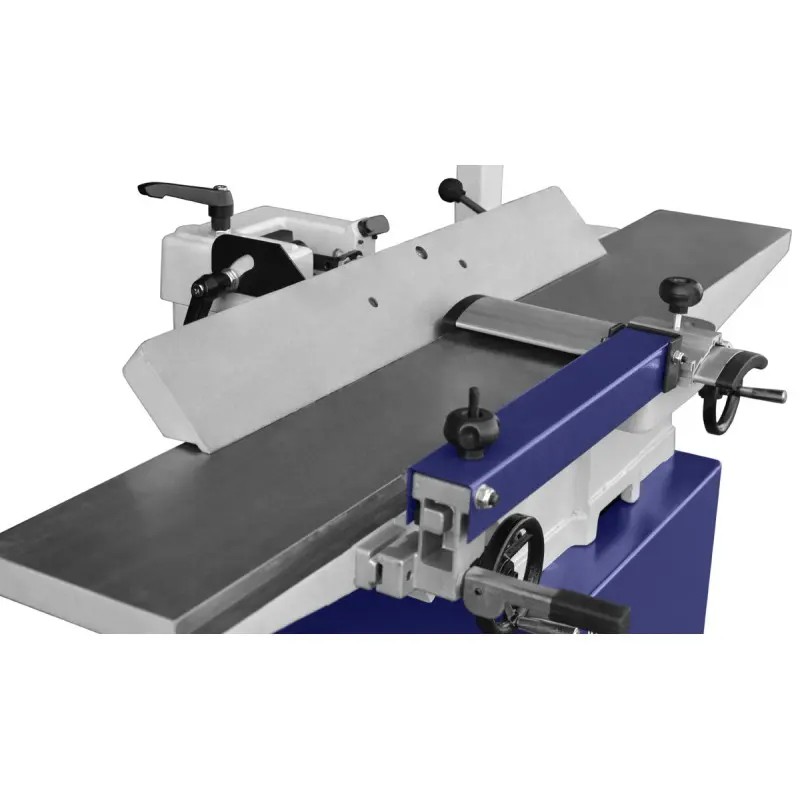

• tilting fence with angle adjustment,
• high-quality cast-iron tables,
• manual handwheel for setting the planing depth,
• integrated Ø100mm dust extraction port,
• power cable with plug.

Optional equipment*:

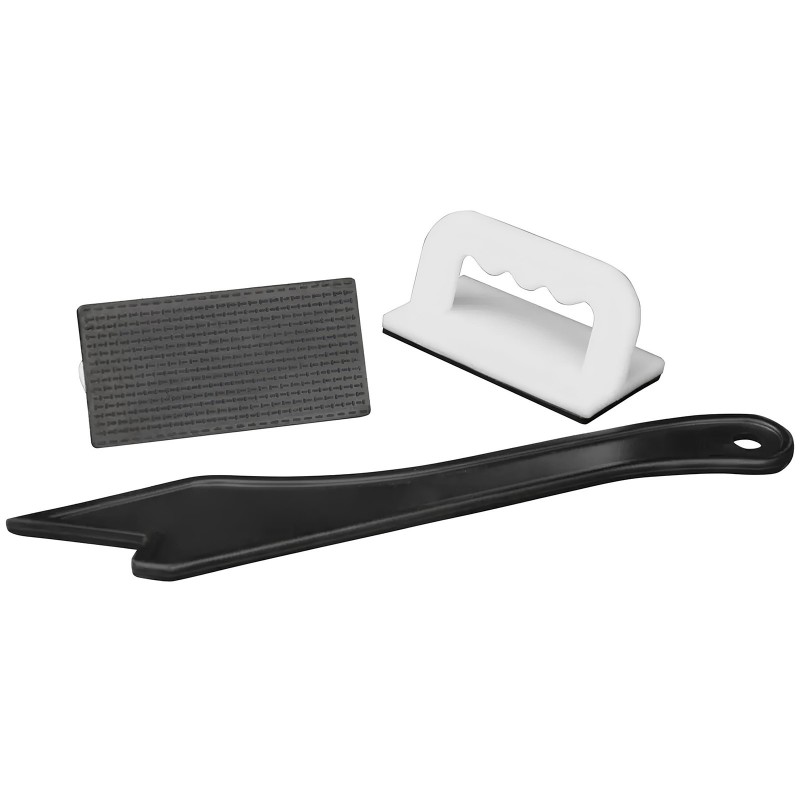

• knife precision-setting attachment,
• mobile transport base,
• chip and dust extraction system.

*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.

Technical specifications

Increase machining precision and quality in your workshop – choose the CORMAK MB150 surface planer. Contact our technical department or order online to receive an offer tailored to your production needs.
