How to dig a trench for an electrical cable?

Installing an electrical system in the ground requires more than the correct cable and properly designed protection. The cable route also needs to be prepared correctly. An electrical cable trench needs an appropriate width, depth and route, with the excavation method matched to ground conditions, installation length and the technical requirements of the project.

For short runs on private property, hand tools may be sufficient. Where tens or hundreds of metres of narrow trench need to be created, manual excavation becomes very time-consuming. In these situations, groundworks machinery, particularly specialised trenchers, can be much more productive.

What determines how the trench should be excavated?

Before excavation begins, the installation route needs to be accurately established. Important factors include ground type, route length, planned alignment and the depth required by the design and applicable technical requirements.

There is no single universal burial depth for every electrical installation. Requirements can vary according to cable type, voltage, location, mechanical protection, local conditions and project documentation. Before excavation, refer to the design, cable manufacturer's requirements and the applicable regulations or standards.

Ground conditions also matter. Garden soil, clay and moderately compacted ground are generally easier to work than very hard or stony ground or soil containing numerous roots.

Existing underground services also need to be identified before work starts. Power cables, water, drainage, gas, fibre-optic, telecommunications or irrigation services may cross the planned route.

How do you dig a cable trench?

The method depends mainly on route length and ground type. For a short section, a shovel, spade and mattock may be sufficient. This is straightforward but becomes slow where consistent trench dimensions are required over a long distance.

Before digging, clearly mark the route using string, marking paint or another visible method. This makes it easier to keep the excavation aligned with the design.

A typical sequence includes:

• setting out the cable route,
• checking for existing underground utilities,
• removing surface obstructions,
• excavating the trench to the design requirements,
• preparing the trench bottom,
• installing the cable in accordance with the technical requirements,
• installing required protection and warning layers,
• backfilling and compacting the ground correctly.

The trench bottom should be even and free from sharp stones or other objects that could damage the cable. Where a sand bed or another protective layer is required by the design, it should be installed in accordance with the technical documentation.

Excavated soil should also be managed carefully. If it is to be reused as backfill, avoid unnecessarily mixing it with rubble, large stones or waste.

Manual or mechanical excavation?

Manual excavation is appropriate for short routes, restricted access or areas containing a high concentration of existing services. It provides greater control when exposing the ground but is slow and physically demanding over long distances.

For long routes, mechanised excavation is usually much more efficient. A correctly selected machine can produce a narrow trench more quickly and reduce the quantity of excavated material.

Mechanical trenching is commonly used for:

• power cable routes,
• telecommunications and fibre-optic installations,
• external lighting,
• security and automation systems,
• irrigation and garden installations,
• technical services on industrial sites,
• long linear trenches with a relatively small width.

Chain trenchers for narrow trenches

Chain trenchers are particularly suitable for long, narrow trenches. Instead of a conventional excavator bucket, they use a guide bar and a moving cutting chain. The teeth enter the ground, loosen the material and carry it out of the forming trench.

This approach can create a more consistent trench width while opening only a relatively narrow strip of ground, which means less material needs to be handled during backfilling.

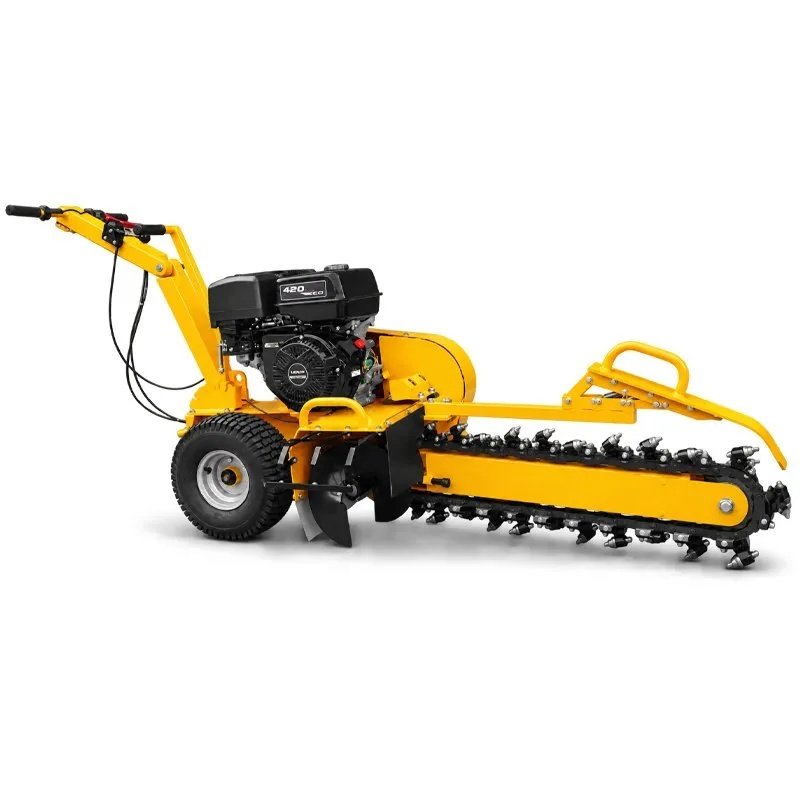

One example is the CORMAK GF1500 chain trencher. It produces a 100 mm wide trench and has working-depth settings of 150, 300, 450 and 600 mm. These figures describe the machine's working capability and should not be interpreted as the required burial depth for a particular electrical cable.

Selection should consider working depth and width, chain design, cutting teeth, ground conditions and availability of wear parts. CORMAK's wider groundworks and industrial machinery range also includes equipment for other site-preparation tasks.

How do you dig a cable trench quickly?

Where the route is tens or hundreds of metres long, productivity becomes a key planning factor. The largest time savings normally come from reducing manual soil removal and maintaining consistent trench geometry.

A chain trencher can work continuously along the marked route. As the machine advances, the cutting chain loosens the soil and removes it from the trench at the same time.

Actual performance still depends on site conditions. Stones, large roots, very hard ground, slopes and other obstacles can significantly reduce progress.

Good site organisation also makes a difference. A clearly marked route, removed obstructions, unrestricted machine access and a planned location for excavated material can reduce overall working time considerably.

Safety and existing underground utilities

The most important step before excavation is establishing whether existing underground utilities are present. Damaging an electrical cable, gas pipe, water main or fibre-optic service can create serious hazards, outages and expensive repairs.

Existing utility records should be checked and, where necessary, the service location should be confirmed on site using appropriate detection methods. Close to known services, careful manual exposure may be required instead of mechanical excavation.

When operating a chain trencher, follow the manufacturer's instructions and maintain the specified safety zone. Hands and clothing must be kept away from the moving chain, and bystanders should remain outside the working area and the path of discharged soil.

The electrical installation itself should be carried out in accordance with the design by suitably qualified personnel. Excavating the trench is only one part of the project and does not replace correct cable selection, electrical protection or final testing.

Cost of excavating the trench

The cost depends on much more than trench length. Ground type, depth, width, machine access, transport, operator time, site preparation, backfilling and reinstatement all need to be considered.

For a very short run, manual excavation may be economically reasonable because machine transport and setup are avoided. As the route becomes longer, however, labour hours increase rapidly.

For long trenches, a chain trencher can reduce both excavation time and the volume of soil moved. A narrower trench means less material to excavate, stockpile and replace.

Cost comparisons should therefore consider the complete process rather than the machine's hourly rate alone. Labour, spoil handling, backfilling and surface reinstatement can make a substantial contribution to the final project cost.

Summary

How do you dig a trench for an electrical cable? Hand tools may be sufficient for short, easily accessible routes. On long runs, mechanised excavation with a dedicated chain trencher is generally much more productive.

Trench depth, width and preparation should always be determined by the installation design, ground conditions and applicable technical requirements. A machine's working parameters do not replace these requirements.

Correct route planning and checking for existing underground utilities are essential. Choosing the right method can reduce excavation time, soil movement, reinstatement work and unnecessary disturbance to the surrounding area.
