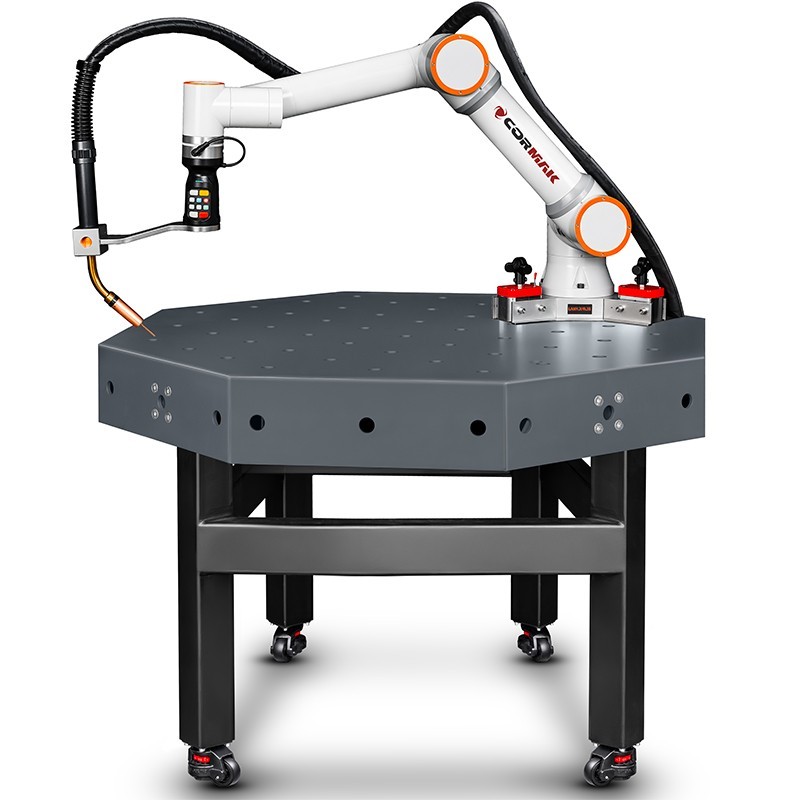

Welding cobot – when is automation cost-effective?

Welding cobot – when is automation cost-effective?

A welding cobot offers businesses a way to improve welding consistency, shorten production times and reduce the workload of welders performing repetitive tasks. Unlike conventional industrial robots, cobots are designed for easier operation, faster programming and use in smaller manufacturing spaces.

A welding cobot is a solution for companies that want to improve welding repeatability, shorten production times and relieve welders of repetitive batch-production tasks. Unlike conventional industrial robots, cobots are designed for easier operation, faster programming and use within smaller manufacturing spaces.

Automating welding does not always require a large production line. In many workshops, a station equipped with a cobot, welding power source, workbench and suitable fixtures is sufficient. This can be particularly beneficial for businesses that regularly manufacture similar components but do not want to invest in extensive robotic automation.

What is a welding cobot?

A cobot, or collaborative robot, is a machine that performs repeatable welding movements along a programmed path. The operator prepares the workpiece, sets up the program, starts the process and checks the result. The cobot guides the welding torch at consistent speed, angle and distance from the material. Examples of such solutions can be found in the welding cobots and collaborative robots category.

Process stability is particularly important in welding. Even an experienced welder can find it difficult to maintain identical quality over many working hours. A welding cobot repeatedly performs the same movement, helping to reduce differences between successive components.

This does not mean that the operator is replaced entirely. Someone must still prepare the components, select welding parameters, set up the fixtures, inspect welds and respond to problems. Automation works best when machine repeatability is combined with the experience of welding specialists and production engineers.

When does welding automation make sense?

Welding automation is most cost-effective when a company manufactures repeated components. The more frequently the same weld is produced, the easier it is to recover the time invested in programming, setting up the workstation and making fixtures.

A welding cobot is well suited to manufacturing frames, steel structures, brackets, supports, enclosures, machine components, tables, shelving, gates, fencing and parts produced in short or medium batches. Very large production volumes are not essential. Recurring orders are often enough, as saved programs can be retrieved and reused quickly.

Cobots also make sense where welders spend substantial time producing simple, repetitive welds. Transferring these operations to a robotic station allows employees to focus on more difficult welding, quality inspection, production preparation and tasks that require greater manual expertise.

When might a cobot not be cost-effective?

Not every business can immediately use the full potential of a cobot. If production mainly involves one-off parts, every component differs and welds are difficult to access, implementation may be less efficient. Programming, setup and changeover could then take longer than the welding itself.

A cobot will not solve problems caused by poorly prepared components either. If parts have excessive gaps, inconsistent dimensions, unstable clamping or poor repeatability after cutting and bending, the robot will reproduce those errors. Robotic welding requires a well-prepared process.

Before purchasing, a company should assess whether it has components suitable for automation. The best candidates are parts that can be clamped securely, positioned consistently and welded along a fixed path.

Key benefits of using a cobot

The greatest advantage is repeatability. The cobot moves the torch in the same way during every cycle. This can result in more uniform welds and make it easier to maintain quality in batch production.

Another benefit is productivity. While the cobot performs the weld, the operator can prepare the next components, monitor the process or carry out other tasks. With an efficiently organised workstation, this can shorten production times and reduce downtime.

Ergonomics also matter. Welding long, repetitive seams can be tiring and place strain on the eyes, hands and back. The cobot takes over monotonous work, allowing welders to concentrate on more demanding tasks. Nevertheless, the workstation still requires protection from arc radiation, welding spatter and fumes, even when a collaborative robot is used.

Automation can also reduce the effect of workforce shortages. When qualified welders are difficult to recruit, a cobot can help stabilise production and decrease reliance on manual labour for repetitive parts.

What should be prepared before implementation?

The most important consideration is workholding. Every component must be positioned consistently. A well-designed welding fixture reduces preparation time and helps maintain repeatability. For certain applications, welding positioners can make it easier to position workpieces correctly.

Next come the welding parameters. Current, voltage, travel speed, shielding gas, wire type and welding sequence all need to be selected. A cobot does not replace welding expertise; it carries out the established welding procedure consistently. Suitable power sources and accessories can be explored in the welding machines and equipment category.

It is also worth reviewing workflow. The station should allow the operator to load and unload parts quickly. If preparing a component takes too long, the cobot will sit idle and the potential of automation will not be fully realised. Suitable ventilation and welding fume extraction are also required.

How to assess the profitability of a welding cobot?

The simplest approach is to compare manual welding time with the cobot's cycle time, including loading, unloading, inspection and any rework. Important factors include the number of repeat parts made each month, weld lengths, changeover times and how often the same production batch returns.

A cobot is likely to pay for itself sooner when:

  • components are repeatable and easy to clamp,
  • welds follow similar paths,
  • production batches return regularly,
  • qualified welders are difficult to recruit,
  • consistent weld quality is essential,
  • the business wants to increase output without significantly expanding its workforce.

Profitability also improves if one operator can manage several stages or prepare more components while the cobot is welding. That is why the entire production process should be examined before purchase, rather than only the time needed for one weld. For help selecting equipment and accessories, companies can contact CORMAK.

Summary

A welding cobot pays off when a company produces repetitive welds and wants to improve production stability. It works best with batches of components that can be easily secured and welded along a fixed path.

A cobot is not suitable for every process, but in a well-prepared workstation it can shorten production time, improve repeatability and reduce the workload of welders. Success depends not only on buying the robot, but also on appropriate fixtures, good component preparation and carefully planned production organisation.
