Industrial Chip and Dust Extractor CORMAK DCV39150 Vibra Motor 39,150 m³/h

VIBRA MOTOR DCV39150 – top-class industrial extractor for demanding applications

VIBRA MOTOR DCV39150 is a professional industrial extraction unit designed for continuous operation in facilities with high dust emission levels. With its exceptionally large filtration area and 50 HP motor, the unit meets the requirements of the most demanding production environments. Its 39,150 m³/h capacity makes it ideal as a central extraction system in large-scale technological installations.

Main advantages

• Extremely high filtration capacity – 39,150 m³/h ensures effective dust removal even under extreme conditions.
• VIBRA MOTOR system – two vibration motors (2 × 0.16 kW) maintain constant filter efficiency without interrupting operation.

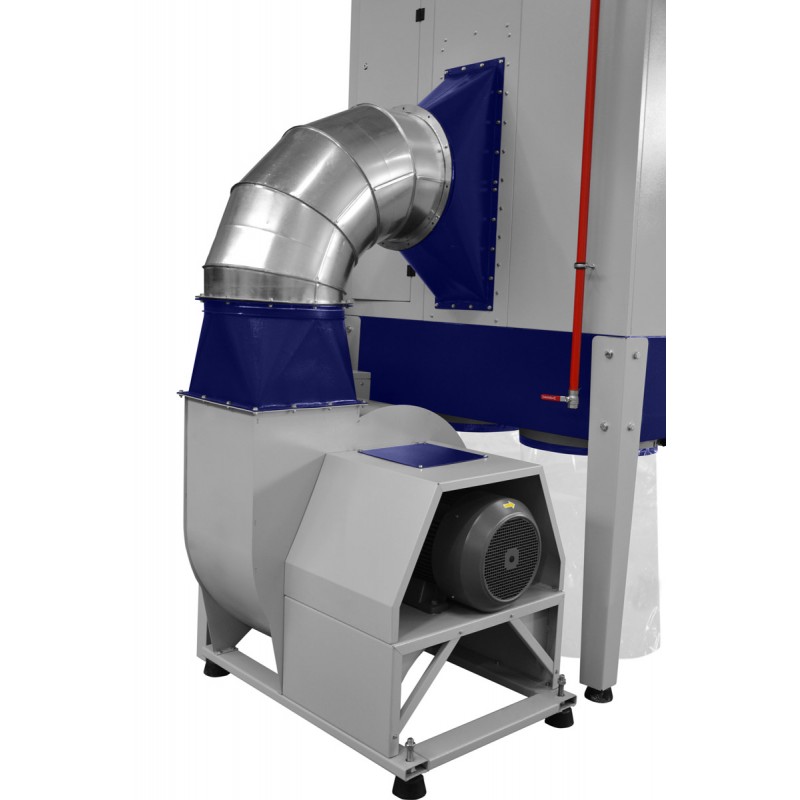

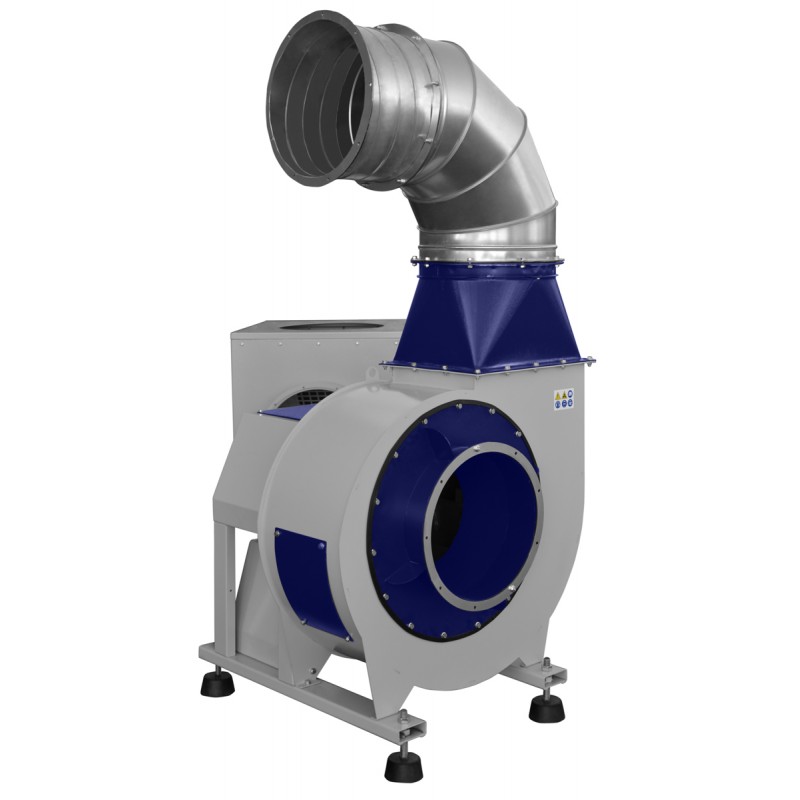

• High-performance radial fan – with 550 mm inlet and 560 mm outlet diameters provides optimal vacuum pressure.
• Sealed and sound-insulated construction – suitable for use both indoors and outdoors.
• Energy efficiency and quiet operation – aerodynamically shaped impeller blades and integrated heat recovery system.

Design and technology

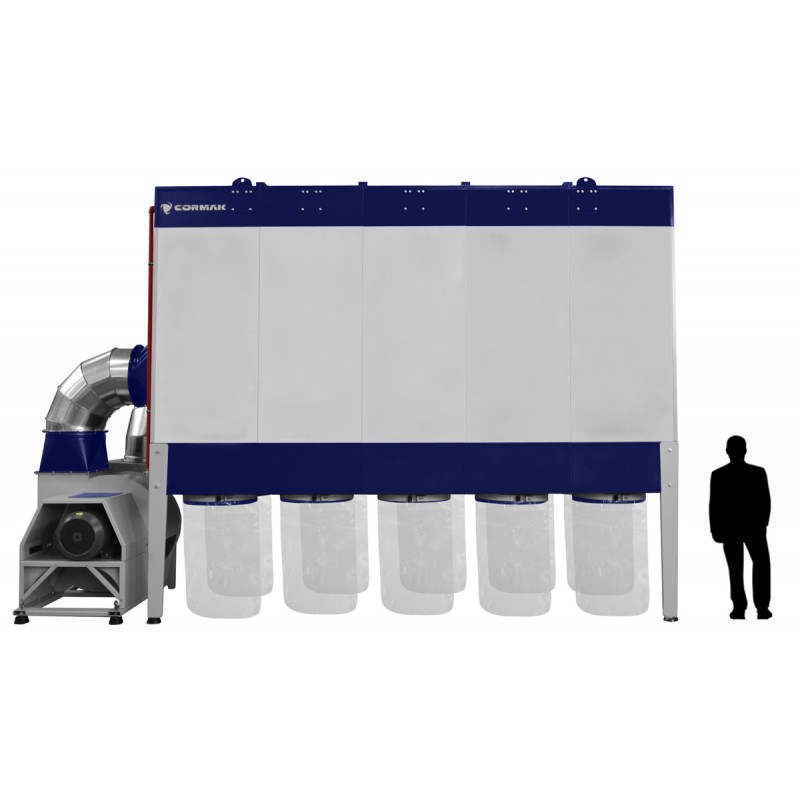

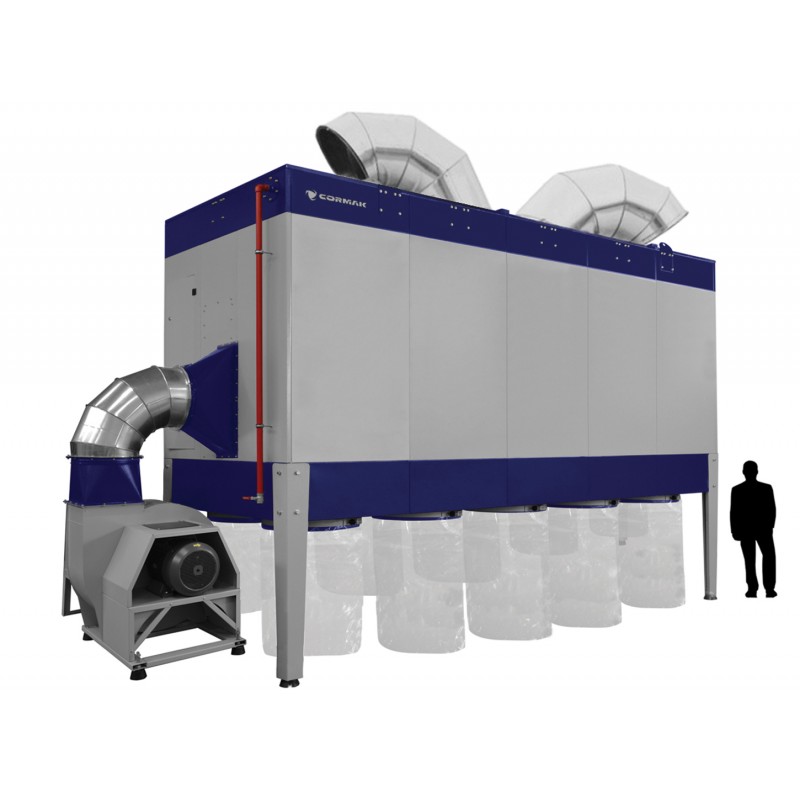

The DCV39150 extractor is equipped with 192 polyester fabric filters arranged within a structure measuring 2,030 × 4,960 × 3,600 mm. The suction system is powered by a powerful 50 HP motor (IP55) supported by a 440 kg fan. The construction enables operation in both negative-pressure and positive-pressure systems, making DCV39150 a flexible solution for a wide range of industrial applications.

Precision and performance

The VIBRA MOTOR system continuously monitors filter contamination levels and activates cleaning in real time. This ensures the chip and dust extractor maintains constant airflow and stable performance, regardless of workload intensity.

Applications

The VIBRA MOTOR DCV39150 is designed for furniture production plants, carpentry workshops, wood processing factories and CNC production lines. It provides continuous dust and chip filtration on an industrial scale.

Standard equipment

• 50 HP motor with radial fan
• Filtration system with 192 polyester filters
• Automatic Vibra Motor filter cleaning system
• Modular design resistant to mechanical damage

Optional equipment

• HEPA filters for particles below 5 microns
• Fire protection system with spark detector
• BIG-BAG system with automatic discharge

Technical data

Invest in reliable dust extraction with VIBRA MOTOR DCV39150

Choose a woodworking extractor with top-level performance and durability. Contact our technical consultant to configure the best setup for your production facility. Have questions? Get in touch or order online!
