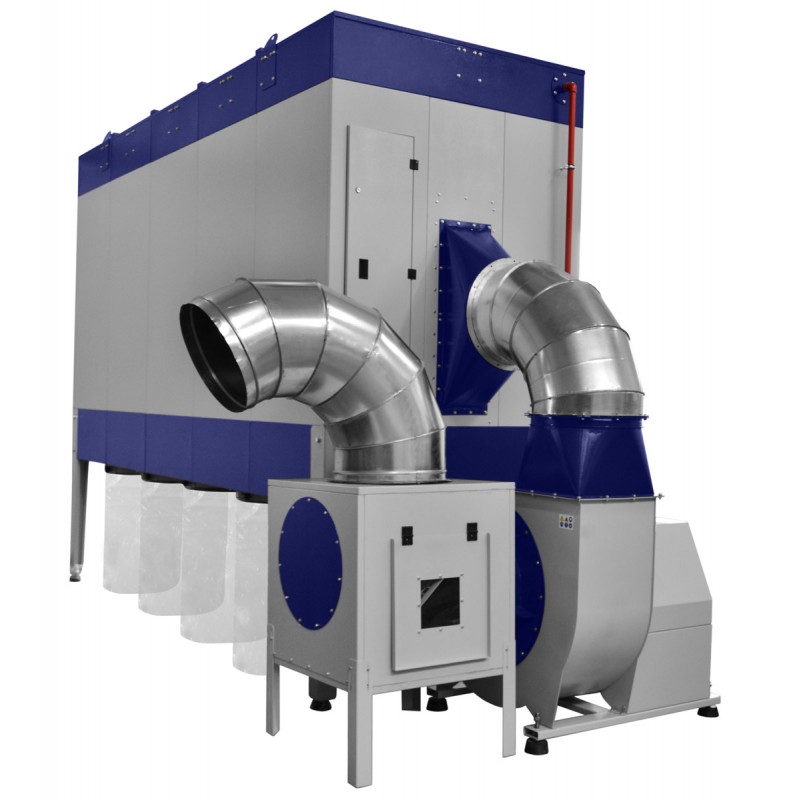

Industrial Chip and Dust Extractor CORMAK DCV30450 Vibra Motor 30,450 m³/h

VIBRA MOTOR DCV30450 – high-performance industrial extractor with dual turbine and automatic filter cleaning

VIBRA MOTOR DCV30450 is an advanced industrial extraction unit created for large woodworking plants and central dust extraction installations. Thanks to the use of two independent turbines and the innovative Vibra Motor filter cleaning system, it provides continuous, stable, and efficient operation under heavy load. The unit can function as a central extraction system or as an independent woodworking dust extractor for multiple machines.

Main advantages

• Extraction capacity of 30,450 m³/h – maximum efficiency even under high dust load and demanding working conditions.
• VIBRA MOTOR system – automatic filter cleaning maintaining constant airflow parameters.
• Sealed construction – suitable for operation both indoors and outdoors.
• Soundproofed housings – quiet operation despite high vacuum pressure.
• Warm air recovery system – improves the energy efficiency of production facilities.
• Compatible with positive and negative pressure systems.
• Control panel – with filter contamination level monitoring.

Design and technology

The DCV30450 unit features a rigid reinforced steel frame. It is equipped with two motors delivering a total power of 40 HP, working with radial chip fans that ensure an operating pressure of 28–30 m/s. The filtration system consists of 120 polyester filters and 12 waste collection bags. The machine is also equipped with a fire-safety connection port.

Precision and efficiency

Thanks to its modular configuration, the extractor can be easily expanded with additional sections. The aerodynamically profiled impeller blades reduce noise and energy consumption. The unit operates reliably even with high airflow volumes, essential in facilities with heavy dust generation.

Applications

The DCV30450 is a professional chip and dust extractor designed for large carpentry shops, furniture factories, CNC machining parks, and central extraction systems. It can be successfully integrated with panel saws, milling machines, wide belt sanders, and edgebanders.

Standard equipment

• High-surface polyester filter system
• Vibra Motor automatic filter shaker
• Control cabinet with diagnostic panel
• Dual turbine system with radial fans
• Sound-insulated housing for quiet fan operation

Optional equipment

• Fine filters (e.g. HEPA – for particles below 5 microns)
• Fire-protection system with spark detector
• BIG-BAG collection system for large-capacity chip storage

Technical data

Invest in professional dust extraction with VIBRA MOTOR DCV30450

Choose a chip and dust extractor that combines performance, reliability, and advanced filtration technology. DCV30450 is an investment in cleanliness, safety, and production efficiency. Contact our consultant and order yours today!
