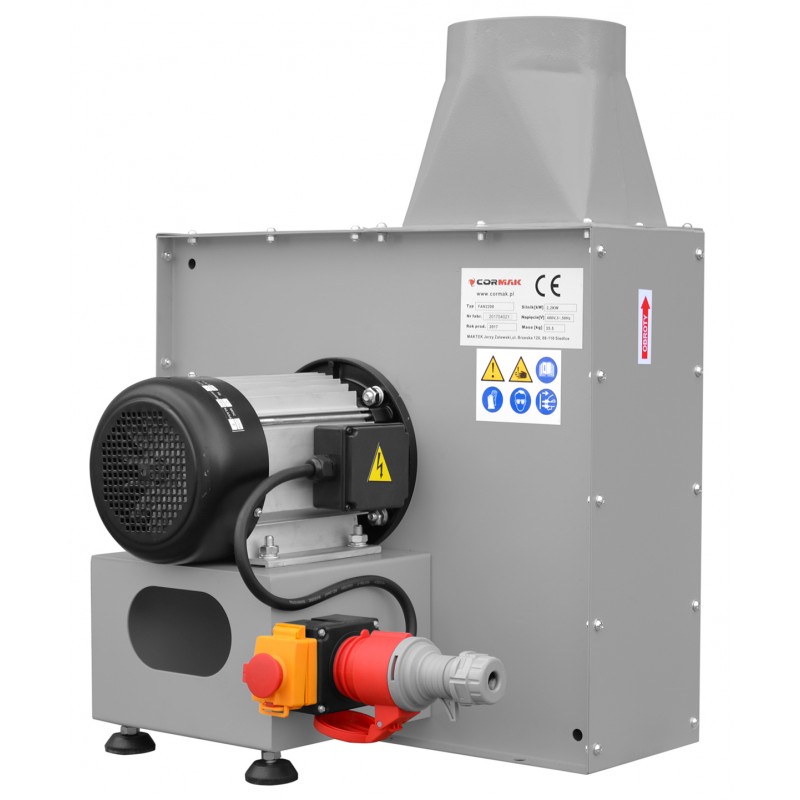

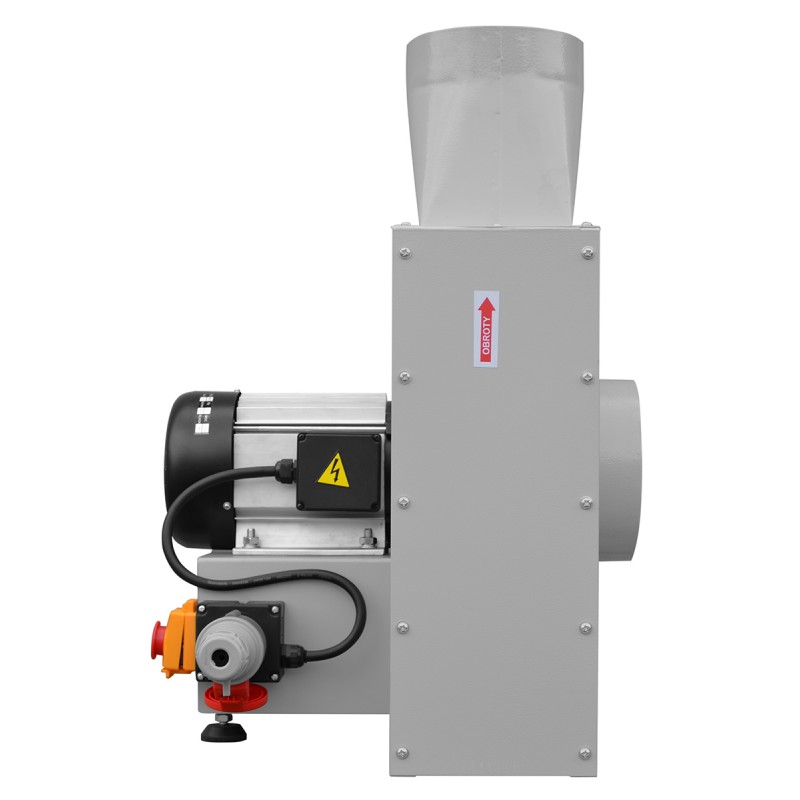

Radial Extraction and Blower Fan CORMAK FAN2200

FAN2200 – industrial radial extraction and transport blower for sawdust, dust and chips

Extraction and Transport Blower FAN2200 is a high-performance industrial device designed for the extraction of sawdust, dust and chips generated during the processing of wood, wood-based materials and plastics. Thanks to the use of a radial fan and a 2.2kW motor, this model offers a maximum airflow of 4000m³/h, ensuring clean air in the production hall and reliable support for dust extraction systems. It is a robust and functional sawdust blower designed for long-term operation in demanding industrial conditions.

Main advantages of the machine

• High efficiency – 4000m³/h – effective transport of bulk material and dusty air
• Motor 2.2kW / 400V – suitable for continuous operation in three-phase systems
• Rotational speed 2850rpm – ensures intensive airflow
• Large connection cross-sections – inlet Ø200mm, outlet Ø180mm
• Compact design – only 575 × 550 × 500mm, ideal for stationary or mobile installation
• Stable steel construction – durability and resistance to workshop conditions

Construction and technology

FAN2200 is equipped with a radial impeller mounted directly on the motor shaft, reducing power loss and increasing overall unit durability. The impeller is dynamically balanced to minimise vibration and noise, ensuring stable and failure-free operation. The fan housing is made of steel and coated with a powder paint resistant to abrasion and corrosion. The blower can operate as part of a central sawdust extraction system or as a point extraction unit for a single machine.

Precision and performance

The 4000m³/h efficiency and dynamic pressure generated by the radial fan enable effective removal of even heavier sawdust fractions produced when using thicknessers, milling machines or panel saws. The FAN2200 operates continuously and steadily, maintaining consistent suction parameters. It is a solution designed for high-dust environments, resulting in lower machine failure rates, longer filter life and improved air quality in the workspace.

Applications

FAN2200 extraction and blower fan is suitable for use in:

• joinery and furniture workshops,
• CNC workshops,
• plastic processing plants,
• central extraction systems,
• high-dust technological lines.

Thanks to flexible connection configurations, the FAN2200 can be used in mobile installations or as an independent sawdust blower supporting specific workstations.

Standard equipment

• Electric motor 2.2kW / 400V
• Radial impeller mounted directly on the shaft
• Powder-coated steel housing
• Inlet nozzle Ø200mm
• Outlet nozzle Ø180mm

Optional equipment

• Flexible suction and discharge hoses Ø180–200mm
• Adapters and connectors for system distributors
• Fabric or bag filters
• Timer controllers or remote start sensors

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.

Technical data – Radial Extraction and Transport Blower FAN2200

FAN2200 is a proven extraction and transport blower that combines high efficiency with a durable design and simple operation. Order today and ensure effective sawdust extraction in your workshop. Our technical consultants are available to help you choose compatible accessories and optimise your entire extraction system.
