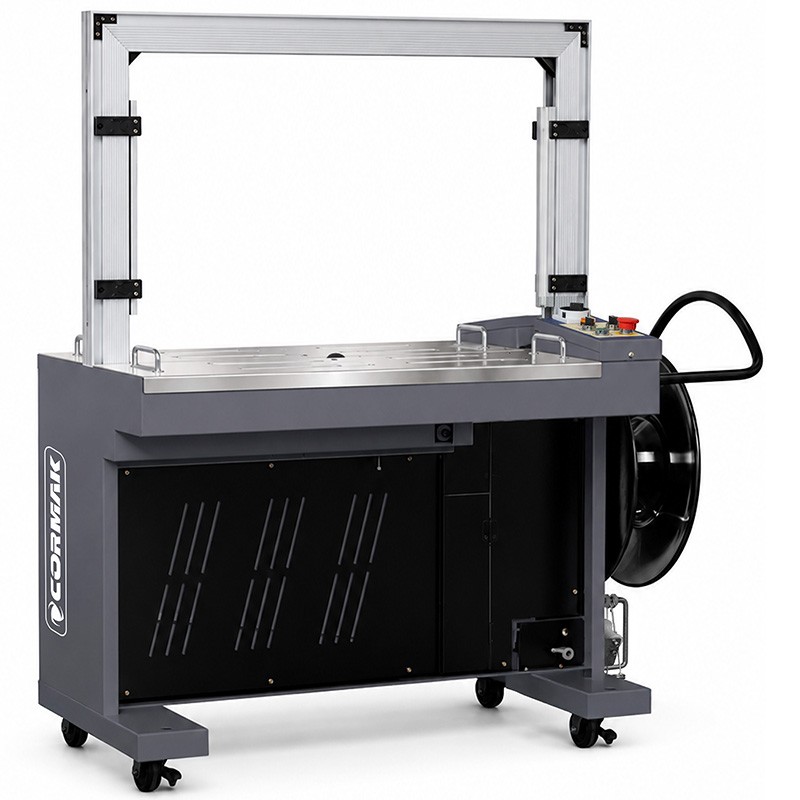

CORMAK BA200 automatic electric strapping machine for PP strapping

The CORMAK BA200 is an automatic frame-type strapping machine designed for securing cartons, parcels and bulk packaging with polypropylene (PP) strapping. The automatic strapping cycle speeds up the preparation of consignments and ensures consistent protection of each product.

Once the cycle is started, the strap is guided through the frame around the product being packed, tensioned to the set force, heat-sealed and cut. The seal is made from the underside of the item being packed, ensuring that the top surface of the cardboard box or parcel remains neat and easily accessible.

Adjustable strap tension within the range of 0–70 kg allows the tightening force to be adapted to the type and strength of the packaging. The BA200 automatic strapping machine is ideal for use in warehouses, production facilities, wholesale centres, logistics centres, e-commerce businesses and dispatch departments.

Benefits of purchasing the BA200 automatic strapping machine

• faster preparation of cartons, parcels and bulk packaging for dispatch,
• reduced manual labour thanks to automatic feeding, tensioning, sealing and cutting of the tape,
• more efficient handling of larger numbers of packages during batch processing,
• consistent strapping of successive products at a set tension,
• the ability to adjust the tape tension to suit the type and strength of the packaging,
• no need to use metal or plastic clips,
• a neat tape join underneath the packaged product,
• easier movement, positioning and rotation of packages thanks to rollers in the worktop,
• convenient cycle start via a foot control or control panel,
• the ability to quickly move the machine between packing stations,
• improved organisation of work in the warehouse, production plant or dispatch department,
• capable of handling products weighing up to 80 kg that fit within the frame’s clear opening.

Automatic strapping and heat-sealing

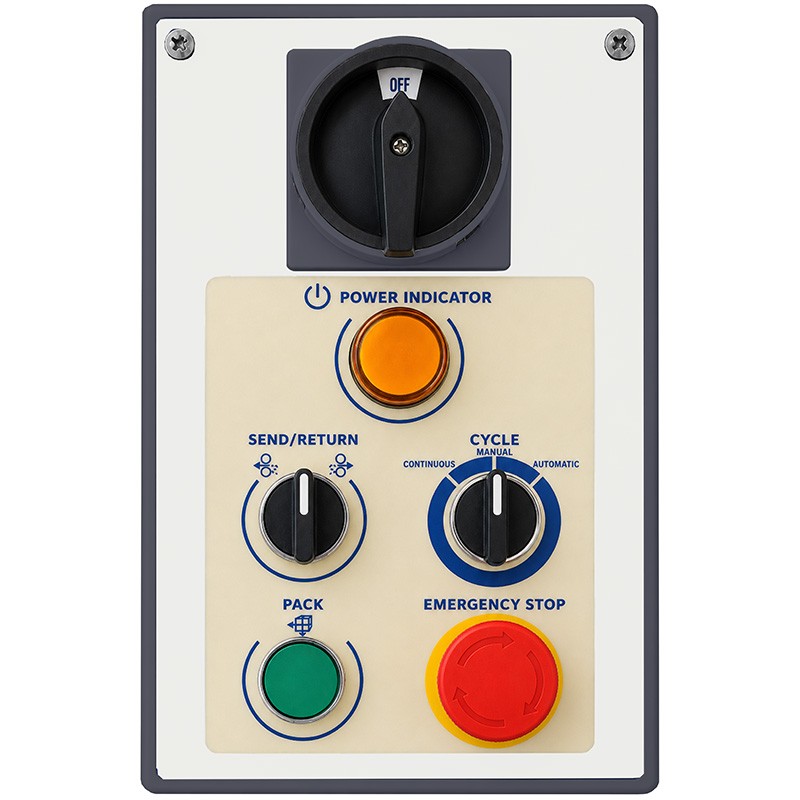

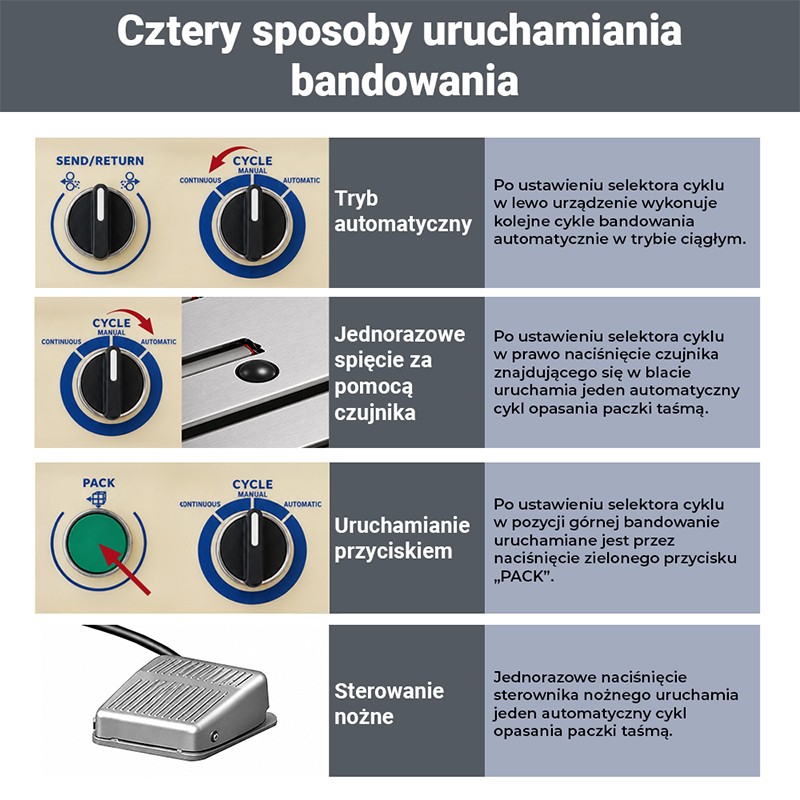

Once the product has been positioned within the frame, the operator starts the cycle using a foot control or a button on the control panel. The PP strap is automatically guided around the product and then tensioned to the set value.

The ends of the strap are joined at the bottom of the packaged item using thermal sealing. Once the join is made, the machine cuts the strap and prepares it for the next cycle. The process does not require the use of any additional metal or plastic clips.

Strap tension adjustment

The adjustment range from 0 to 70 kg allows the tension force to be tailored to the type of product being packed. Lower tension is suitable for light and more delicate cartons, whilst higher tension enables more secure fastening of heavier parcels and bulk packaging.

A correctly selected tension value reduces the risk of packaging deformation and improves the repeatability of the strapping process.

Rollers to aid product positioning

The rollers fitted to the worktop make it easier to move and position cartons, parcels and other items to be strapped. They also make it easier to reposition the product when multiple straps are required.

Mobile design

Transport rollers make it easier to move the electric strapping machine between workstations and allow for flexible organisation of the workspace.

Application

The CORMAK BA200 automatic frame strapping machine is used for strapping:

• shipping cartons,
• courier parcels,
• boxes and bulk packaging,
• parcels prepared by online shops,
• mass-produced goods,
• goods intended for transport or storage,
• battens, profiles and other wooden components that fit within the frame opening.

The machine can operate as a stand-alone strapping station or be integrated into an existing packaging line. Automatic electric strapping machines streamline repetitive operations involved in preparing products for transport and storage.

Included in the set

• a CORMAK BA200 automatic frame strapping machine,
• a foot-operated control unit for starting the strapping cycle,
• user manual.

Technical specifications

The CORMAK BA200 streamlines batch packaging, reduces the number of operator actions required and ensures consistent securing of products with PP tape.

The colours of the machine may differ from those shown in the photographs.
