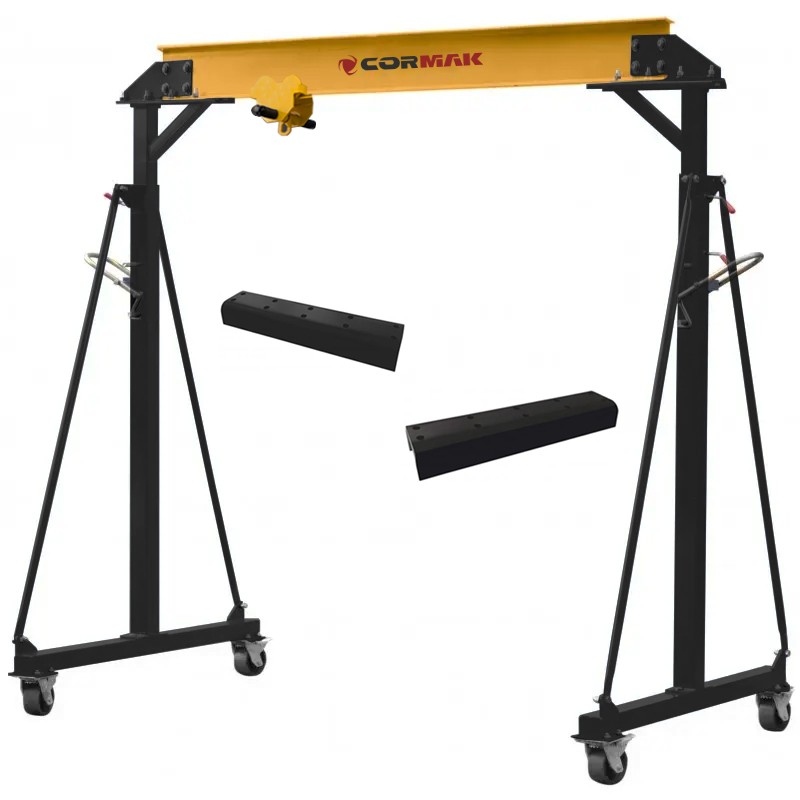

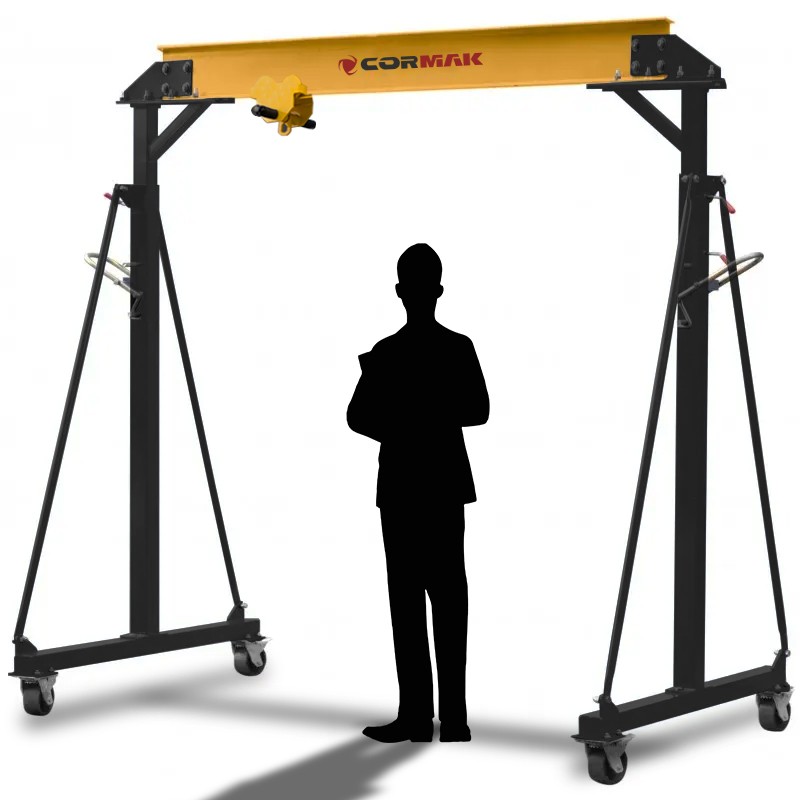

Gantry Crane 1T – Mobile Solution for Lifting and Transport in Workshops and Industrial Halls

The 1000kg gantry crane is an indispensable tool for workshop, assembly, and warehouse operations. Thanks to its mobile structure, adjustable height, and the option to be fitted with a manual trolley (option*), it provides full flexibility and safety when lifting and transporting heavy elements. It is the perfect solution for places where stationary cranes or overhead hoists are unavailable, yet precision and reliability are required.

Main Advantages of the Crane

• Load capacity up to 1000kg – safe handling of engines, gearboxes, structural components, and other heavy parts.
• Adjustable working height from 2500mm to 3600mm – adaptable to various working spaces and load heights.
• Mobility ensured by four swivel castors with parking brakes – easy movement across smooth, even floors.
• Stable steel construction with additional braces – high torsional resistance and rigidity under load.
• Possibility to equip with a manual trolley (option*) – even greater flexibility in moving loads along the beam.
• Simple and safe height adjustment – lever and dual locking screws on each support post.

Construction and Technology

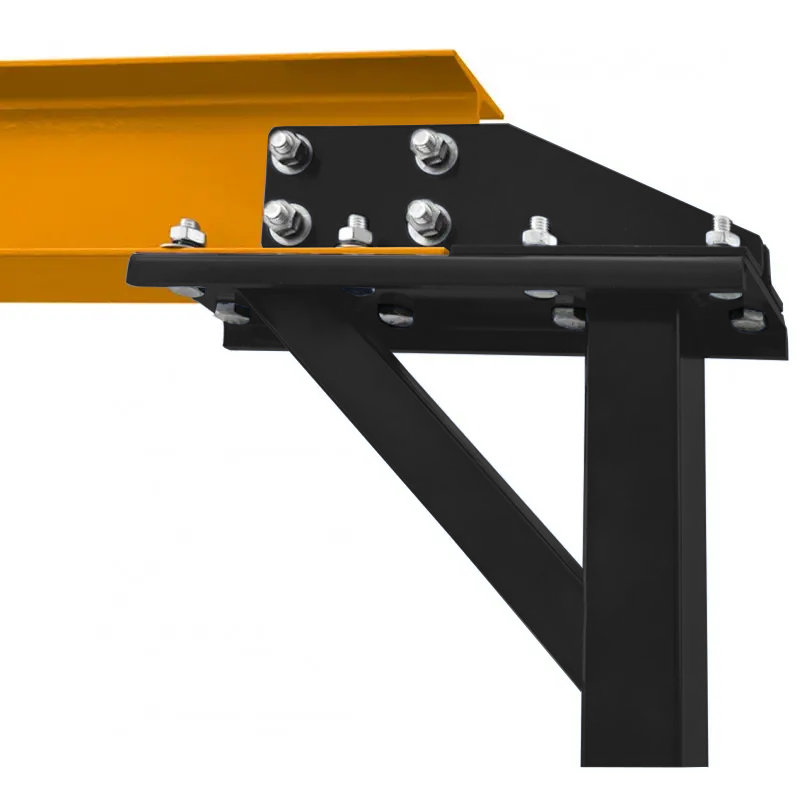

The crane is made from durable steel profiles, and the use of a I-beam 76 × 120mm as the main support beam allows cooperation with professional chain hoists and trolleys. The 1750mm working width is suitable for most manual hoist models available on the market. Additional cross reinforcements and frame tensioners ensure high rigidity, minimising deformation risks when working at maximum load.

The travel wheels are made of wear-resistant and mechanically durable materials, ensuring quiet and smooth movement of the crane. Parking brakes on each wheel allow safe locking in place. This ensures the operator can focus on precise load positioning without the risk of unintentional crane movement.

Safety and Ergonomics

Height adjustment in an unloaded state is achieved via a convenient lever and two locking screws on each post, eliminating the risk of accidental frame descent. All structural elements have been designed with user safety in mind — ensuring both stability and precision in positioning.

This model does not include a hoist in the set, giving the user full freedom in choosing accessories depending on their operational requirements — both chain and wire rope hoists can be used.

Applications

The 1T gantry crane is ideal for:

• Mechanical workshops – removing engines, gearboxes, and suspension systems.
• Production and assembly halls – lifting structural elements, machines, and components.
• Warehouses – loading and unloading goods where fixed lifting infrastructure is unavailable.
• Service work – temporary lifting setups for repairing machinery or components.

Standard Equipment

• Steel frame with adjustable height
• 4 swivel castors with parking brakes
• I-beam 76 × 120mm load beam
• Cross reinforcements and frame tensioners
• Manual trolley (option*)

Professional Support for Every Lift

The 1T gantry crane is a versatile lifting solution designed for operations where mobility, flexibility, and safety are crucial. Its easy height adjustment, mobility, and robust construction make it ideal for modern industrial plants, service facilities, and workshops. It’s an investment in efficiency and ergonomic working conditions.

Order now and take advantage of a professional lifting solution tailored to your operational needs.

Technical Parameters of the Crane:

Note: The crane does not include a hoist – images are for illustrative purposes only.

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
