Conventional Universal Lathe CORMAK TYTAN 220x750P VARIO DRO 230V

The CORMAK TYTAN 220x750P VARIO DRO 230V universal lathe is a modern conventional lathe designed for precision metalworking in workshops, maintenance departments, manufacturing plants and training workshops. Thanks to its stepless spindle speed control, powerful motor and robust cast-iron construction, the machine ensures high turning accuracy, ease of operation and repeatability of the workpieces produced. It is a versatile metal lathe that is ideal for both single-piece and small-batch production.

Key advantages of the CORMAK TYTAN 220x750P VARIO DRO universal lathe

The TYTAN 220x750P VARIO model has been designed for users who require high precision, stability and easy adjustment of operating parameters. The design features enable a wide range of turning, threading and finishing operations to be carried out whilst maintaining a high-quality surface finish.

• Stepless spindle speed control within the range of 50–2,500 rpm allows for the optimal selection of cutting parameters.
• The 1,100 W / 230 V motor ensures stable operation even during intensive use.
• The digital readout (DRO) for the longitudinal and transverse axes enables quick dimensional checks, increases the accuracy of positioning and improves machining repeatability.
• The LCD display allows real-time monitoring of the spindle speed.
• Hardened bed guides increase durability and maintain high feed accuracy.
• Automatic longitudinal feed improves machining repeatability and reduces part production time.
• Capability to cut both metric and imperial threads, both right-hand and left-hand.
• The 38 mm spindle bore allows for the machining of longer workpieces.
• The compact design allows for efficient use of workshop space.

Construction and technological features

The machine body is made of high-grade cast iron, designed to effectively dampen vibrations generated during machining. As a result, the conventional lathe maintains high stability even when turning harder materials. The 100 mm wide bed is fitted with hardened guideways, ensuring long-term accuracy of the cross-slide’s movement.

The spindle, mounted on precision tapered roller bearings, features an MK5 taper and a 38 mm diameter through-hole. Stepless speed control eliminates the need for frequent gear changes, which significantly streamlines the operator’s work. Electronic control and a digital LCD display allow the relevant parameters to be set quickly for any type of material.

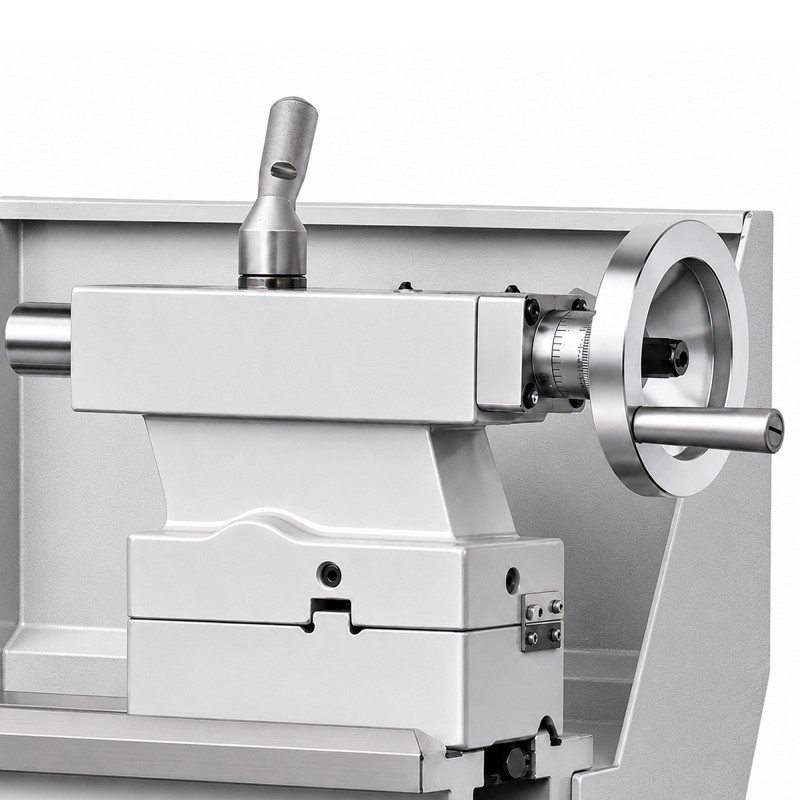

The slide ensures smooth movement and precise tool guidance, whilst the tailstock, fitted with an MK2 taper, allows for convenient support of long shafts and the use of additional tools.

An additional advantage of the lathe is the sump for coolant and swarf, which helps to keep the workstation clean during machining. The design effectively drains coolant and collects the chips produced, limiting their spread around the machine. This solution enhances the operator’s comfort, streamlines daily maintenance and allows for more efficient organisation of the machining process.

Precision and high machining performance

The CORMAK TYTAN 220x750P VARIO universal lathe has been designed to perform precise turning operations whilst maintaining a high-quality surface finish. Its rigid construction, automatic feed and smooth speed control ensure excellent dimensional repeatability and minimise vibrations during operation.

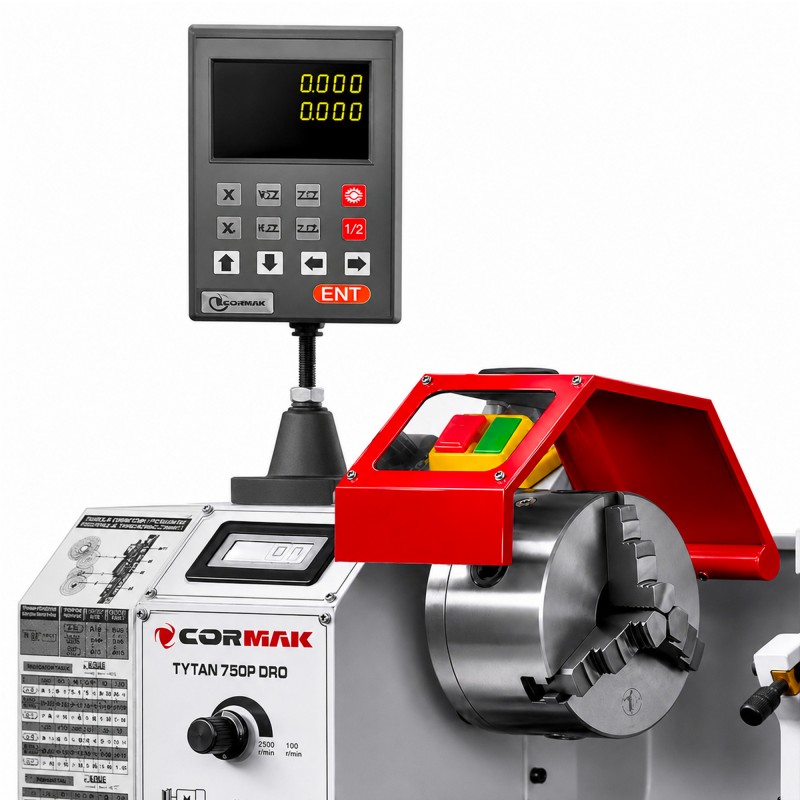

The lathe is equipped with a digital readout (DRO) for the longitudinal and cross axes, which enables precise control of the carriage’s movement during machining. Electronic measurement reduces the risk of errors arising from reading mechanical scales, shortens set-up time and improves the repeatability of the workpieces produced. The digital readout significantly streamlines operations requiring high dimensional accuracy, both in single-piece and small-batch production.

The machine enables the turning of workpieces with a diameter of up to 220 mm over the bed and a length of up to 750 mm, as well as the cutting of metric and imperial threads, facing, drilling, reaming and finishing operations. Thanks to the wide range of spindle speeds, the operator can easily select the appropriate parameters for structural steel, stainless steel, non-ferrous metals and plastics.

Applications

This metal lathe is suitable for use wherever precise and repeatable machining of workpieces is required.

• mechanical and metalworking workshops,
• manufacturing plants,
• maintenance departments,
• machine and equipment service centres,
• technical colleges and training centres,
• prototype and toolmaking workshops.

Standard equipment

• 2-axis digital readout (DRO)
• 125 mm 3-jaw chuck,
• fixed and movable support,
• indexing wheels,
• MK2 and MK4 fixed centres,
• lubricator,
• drip tray for coolant and swarf,
• wrench for the chuck and collet,
• set of maintenance tools,
• CE-compliant safety guards,
• user manual in Polish,
• CE Declaration of Conformity.

Optional equipment

• machine base,
• set of lathe cutting tools 12 × 12 mm (11 pcs.),
• MK2 rotating centre,
• MK2/B16 drill chuck,
• set of HSS-CO5 cobalt drill bits,
• universal cooling system,
• ES-12 cooling oil (1 l).

Technical specifications

Choose the CORMAK TYTAN 220x750P VARIO 230V universal lathe if you are looking for precise machining, a robust design and a wide range of technical capabilities. This is a reliable conventional lathe for professional metalworking, which will prove its worth both in day-to-day workshop use and when carrying out more demanding production tasks.
