Conventional Universal Metal Lathe CORMAK 330x700 with Stand and Cutting Tools

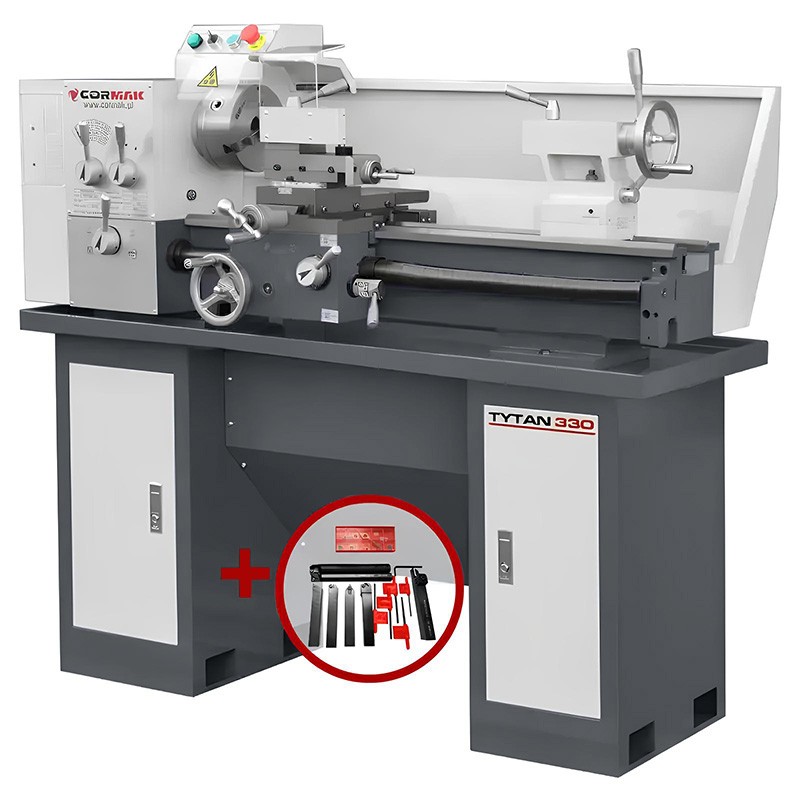

Universal Conventional Lathe CORMAK 330 x 700 230V with Stand + Tool Set – versatile turning centre for demanding professionals

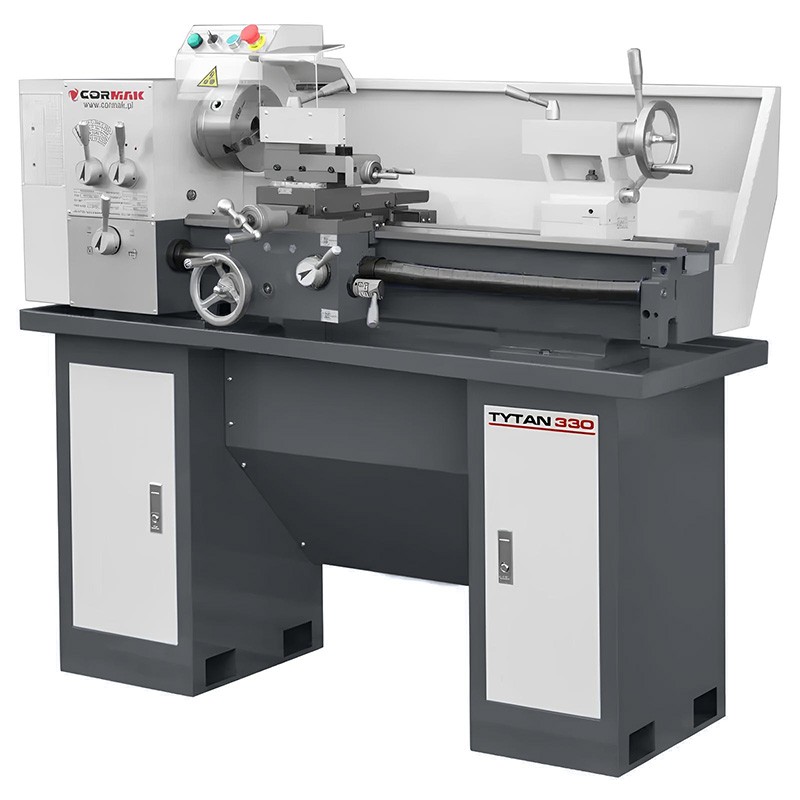

The universal lathe CORMAK 330 x 700 230V is a precise conventional metal lathe designed for machining steel, non-ferrous metals and engineering plastics. Supplied with a heavy-duty stand and a 7-piece 16×16 mm insert tool set, it forms a complete workstation ready for immediate operation. The reliable 1.1 kW / 230 V induction motor, 12-speed gearbox and 160 mm-wide bed ensure constant torque, high stability and repeatable accuracy across hundreds of components.

Main features

• 12-speed gearbox – full torque maintained across 65 – 1650 rpm without power loss.
• Meehanite cast-iron bed (160 mm wide) – induction-hardened and ground guides minimise wear and vibration.
• Spindle bore 38 mm with MK5 taper – allows machining of long shafts and use of a wide range of chucks.
• Leadscrew feed – automatic longitudinal feed and metric threading (0.5 – 4 mm) plus inch threading (9 – 40 TPI) as standard.
• 16×16 mm insert tool set – seven holders with replaceable inserts for turning, grooving, threading and boring.
• Tailstock offset ± 10 mm and compound slide swivel ± 45° – convenient taper turning and complex-shape machining.
• Full CE / DIN compliance – safety interlocks, protective guards and motor thermal protection.

Design and technology

The high-density cast-iron body effectively absorbs vibration, while precision class P5 angular-contact spindle bearings ensure run-out ≤ 0.015 mm. The ergonomic control panel allows quick spindle-speed and feed selection, and hardened gearbox gears ensure quiet operation and long service life. The supplied steel stand with tool cabinet eliminates the need for a separate workstation.

Precision and performance

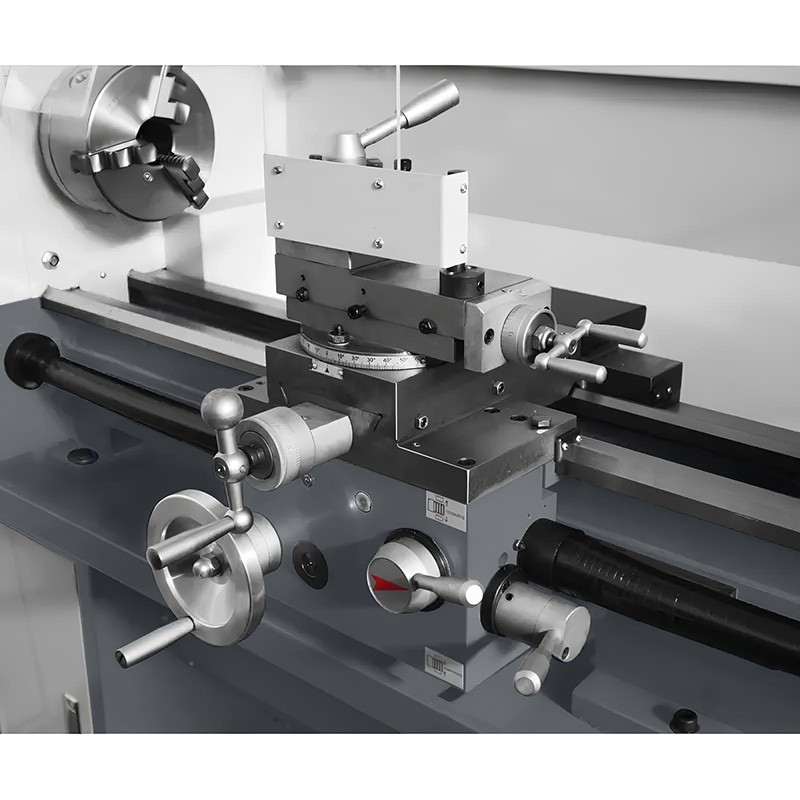

Automatic longitudinal feeds (0.105 – 1.396 mm/rev) and cross feeds (0.022 – 0.296 mm/rev) speed up cutting processes without compromising surface finish. Vernier dials 0.1/0.5 mm allow settings to tenths of a millimetre, and the wide spindle-speed range enables both high-speed finishing and rough turning of tool steels.

Applications

• mechanical and locksmith workshops,
• maintenance departments in production plants,
• training centres and prototype labs,
• machine-part repair services and small-batch manufacturing.

Standard equipment

• Steel stand with tool cabinet
• Set of turning tools 16 × 16 mm – 7 pcs

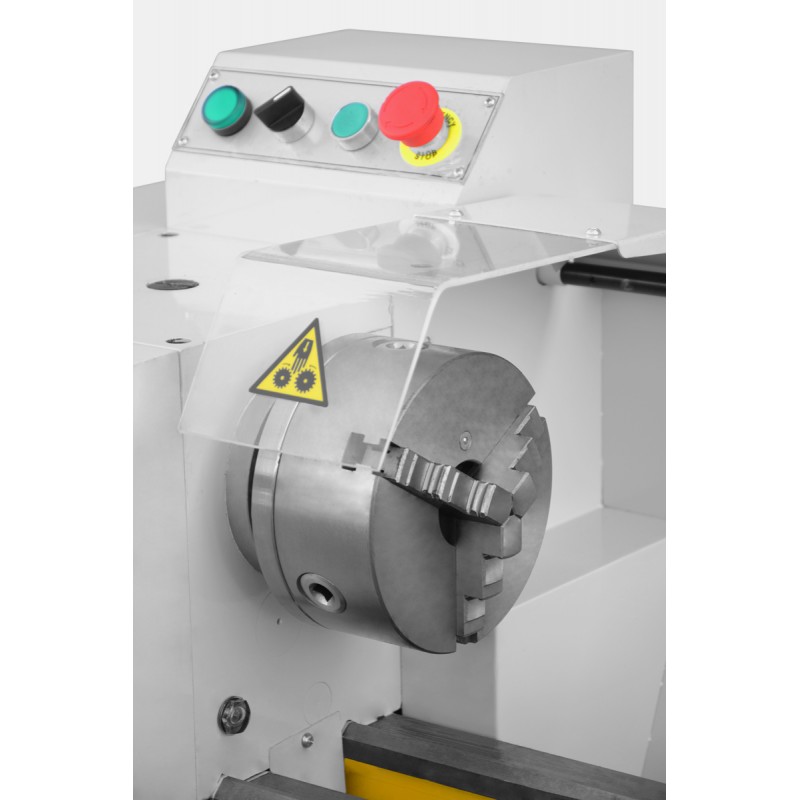

• 3-jaw chuck 160 mm + L/R jaws
• Fixed centre MK3
• Change gears for threading
• Oiler, wrenches, maintenance tool kit
• CE safety guards, user manual, CE declaration

Optional equipment

• Turning tool set 16×16 mm (8 pcs, P30 inserts)
• Fixed and travelling steady rests
• Drill arbor MK3/B16 + chuck B16 3-16 mm
• HSS-CO5 drill set 1-10 mm
• Reducing sleeve MK3/MK2
• Taper shank drill set MK2-MK3 14.5 – 30 mm
• Cutting fluid ES-12 1 L

Technical parameters

Order your CORMAK 330 x 700 230V with stand and tool set today – add it to your cart or contact our technical advisor to select additional accessories and expand your workshop capabilities.
