MILL 1042 Machining Centre – precision and reliability in CNC machining

The MILL 1042 machining centre is an advanced vertical CNC machining centre, designed for precise and efficient metal machining. Equipped with state-of-the-art technology and a robust design, it ensures reliability and high-quality workpieces across a wide range of industrial applications.

Key advantages of the MILL 1042 machining centre

The MILL 1042 vertical machining centre is a solution that combines advanced technology with a robust design, providing a competitive edge in demanding production processes. This machine is the ideal choice for companies seeking CNC machining centres that offer precision, efficiency and durability. Key benefits include:

• High machining precision: Thanks to top-quality linear guides and precision ball screws, the machine achieves a positioning accuracy of 0.006 mm, ideal for workpieces with complex shapes.
• Structural stability: The solid cast iron body ensures excellent rigidity, minimising vibrations even when machining workpieces weighing up to 300 kg.
• Productivity: A 7.5 kW spindle with speeds of up to 8,000 rpm (with an optional 10,000 rpm) and servo drives ensure dynamic machining and reduced cycle times.
• Operator safety: The sealed working chamber protects against dust and swarf, creating a safe working environment.
• Configuration flexibility: The option to upgrade with advanced control systems (Siemens 828D, Fanuc Oi-TF) and features such as a 4th axis or spindle cooling allows the machine to be tailored to specific requirements.

Design and technology of the MILL 1042 machining centre

The MILL 1042 metal milling centre has been designed for maximum durability and precision in demanding industrial conditions. Key components include:

• Solid cast iron body: This ensures excellent stability and vibration reduction, which is crucial for machining high-hardness materials.
• Linear guides: High-quality guides on the X, Y and Z axes guarantee smooth movement and precision at a rapid feed rate of 24 m/min.

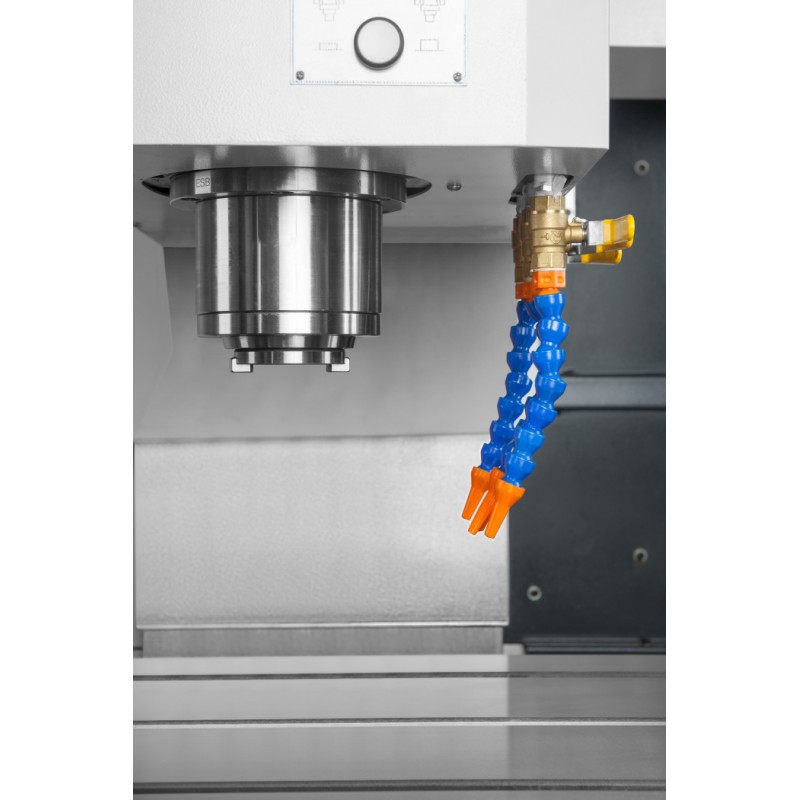

• BT40 spindle: With a power output of 7.5 kW and speeds of up to 8,000 rpm (10,000 rpm optional), it ensures efficient machining.
• Ball screws: Precision ball screws on all three axes ensure high accuracy and repeatability of movement.
• Automatic lubrication system: Minimises component wear, extending the machine’s service life.
• Tool magazine: A 16-position magazine (with an optional 24-position version) enables rapid tool change in approximately 3 seconds.

Precision and productivity

The MILL 1042 CNC machining centre guarantees high precision thanks to advanced technological solutions. Positioning accuracy (0.006 mm) and high feed rates (24 m/min for the X and Y axes, 20 m/min for the Z axis) enable the efficient machining of workpieces with complex geometries. Advanced control systems, such as Siemens Sinumerik or Fanuc Oi-TF, optimise toolpaths, reducing production time and minimising errors.

Applications of the MILL 1042 vertical machining centre

Vertical machining centres such as the MILL 1040 are used across many industrial sectors, including:

• Automotive industry: Production of precision components, such as engine parts, gearboxes and suspension systems.
• Aerospace industry: Machining of parts requiring tight tolerances, e.g. turbine components or structural elements.
• Machine building: Manufacture of components for industrial equipment and precision tools.
• Toolmaking industry: Production of injection moulds, dies and other components requiring high precision.

The machine is ideal for small and medium-sized manufacturing plants seeking to increase productivity whilst maintaining the highest quality.

Standard equipment

• SIEMENS SINUMERIK 808 Advanced control system with a 2-year warranty
• Spindle speed: 8,000 rpm
• 16-position tool magazine
• 3-colour warning lights
• Work area lighting
• Closed cooling system
• Sealed housing
• Automatic lubrication system
• Pneumatic system

Optional equipment

• Siemens Sinumerik 808D, 828D or Fanuc Oi-TF control systems
• Spindle speed: 12,000 rpm
• Spindle cooling
• Horizontal tool magazine (24 positions)
• Chip removal
• Tool measurement probe
• Workpiece measurement probe
• 4th rotary axis

Technical specifications

CNC controls – Siemens Sinumerik 808D, SINUMERIK 828D and Fanuc Oi-TF

The MILL 1040 machining centres are equipped with professional control systems from renowned manufacturers such as Siemens, Fanuc and GSK. These ensure precision, reliability and flexibility in adapting to various production requirements, from simple operations to complex machining processes.

Siemens Sinumerik 808D – a compact CNC control system for basic applications

The Siemens Sinumerik 808D is a cost-effective CNC control system designed for entry-level lathes and milling machines, ideal for small and medium-sized workshops. Its key features include:

• Intuitive operation: The graphical interface and Teach-In function simplify programming, minimising the time required for operators to learn the system.
• High reliability: A robust, dust- and moisture-resistant design ensures stability in harsh workshop environments.
• Compatibility: Designed for machines with standard requirements, with easy integration of SIEMENS servo drives.
• Cost optimisation: Low energy consumption and minimal maintenance requirements, ideal for first-time CNC users.

CNC controls – Siemens and Fanuc

The MILL 1040 machining centre offers advanced CNC control systems, such as the SIEMENS SINUMERIK 808 Advanced, Siemens Sinumerik 828D, and Fanuc Oi-TF, which ensure precision, reliability and ease of use:

%20kraw% C4%99dziowych/Sterowniki %20centra% 20obr %C3% B3bczke.jpg" alt="CNC control systems Siemens and Fanuc" width="870" height="330" style="display: block; margin-left: auto; margin-right: auto;" />

SIEMENS SINUMERIK 808 Advanced

• Intuitive interface: Easy to use, ideal for smaller workshops and novice users.
• Reliability: Robust design capable of withstanding harsh industrial conditions.
• Cost-effectiveness: Designed for basic turning and milling applications.

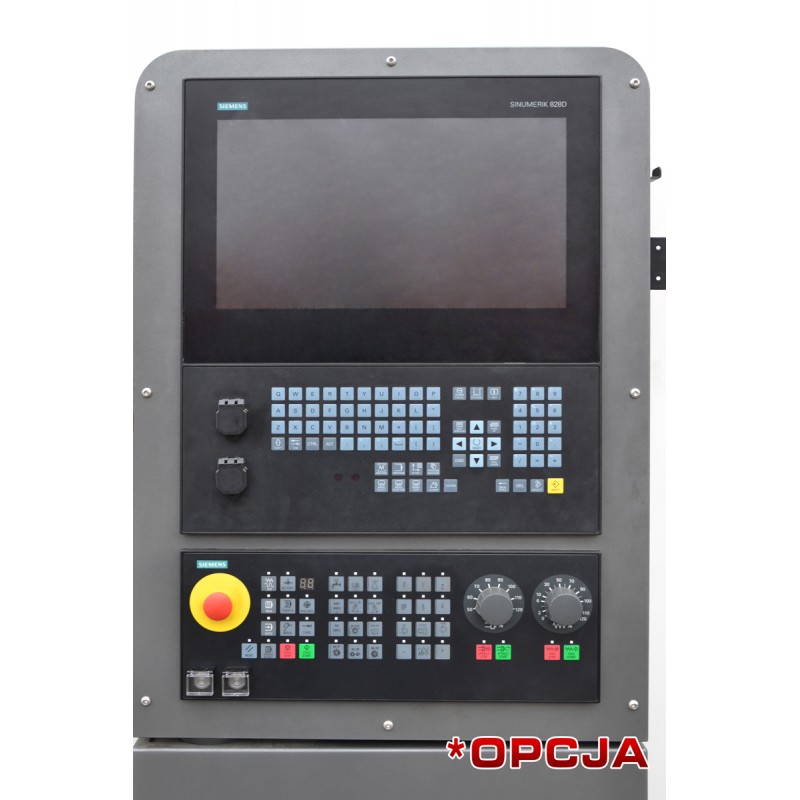

Siemens Sinumerik 828D

• High computing power: Enables dynamic machining and the execution of complex cycles.
• CAD/CAM integration: Facilitates collaboration with design software.
• Advanced features: Toolpath optimisation and the option to expand with additional modules.

Fanuc Oi-TF

• Stability: Reliability in mass production and long-term operation.
• Advanced turning cycles: Ideal for precision machining operations such as thread turning and grooving.
• Intuitive operation: A clear interface speeds up programming.

Download the Siemens Sinumerik 828/840 manual

Download SIEMENS SINUMERIK 808 Advanced manuals

Trust CORMAK’s experience

With over 20 years’ experience in supplying industrial machinery, CORMAK offers reliable turning centres and comprehensive technical support. Our machines comply with European safety standards, whilst our professional warranty and post-warranty service ensures uninterrupted production. Contact us to find out more!

Ask for details or arrange a machine demonstration! Contact us
