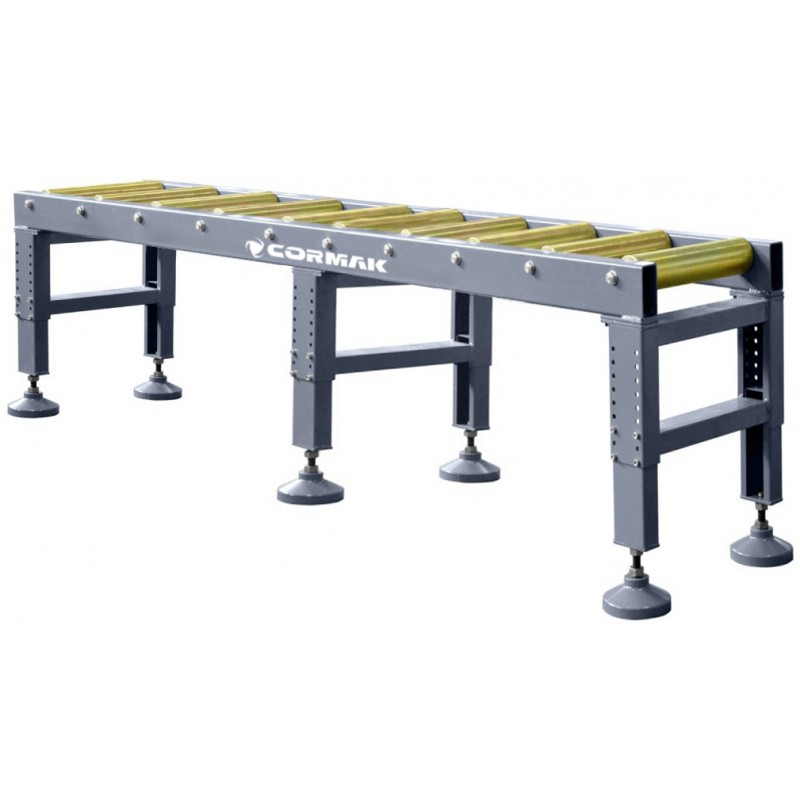

Heavy-Duty Roller Conveyor 3m with 2 Tonne Capacity CORMAK

Heavy-Duty Roller Conveyor 3m – Efficient Conveyor for Heavy Component Transport

3m roller conveyor is a professional roller conveyor designed for feeding and receiving heavy and oversized workpieces in technological lines and at machine tools. A robust construction, precision bearing rollers and a 2,000kg load capacity make it a reliable tool even under the most demanding industrial conditions.

Main advantages

• High load capacity – 2 tonnes allows handling of heavy metal components
• 10 bearing-mounted steel rollers with 90mm diameter – smooth, uninterrupted material flow

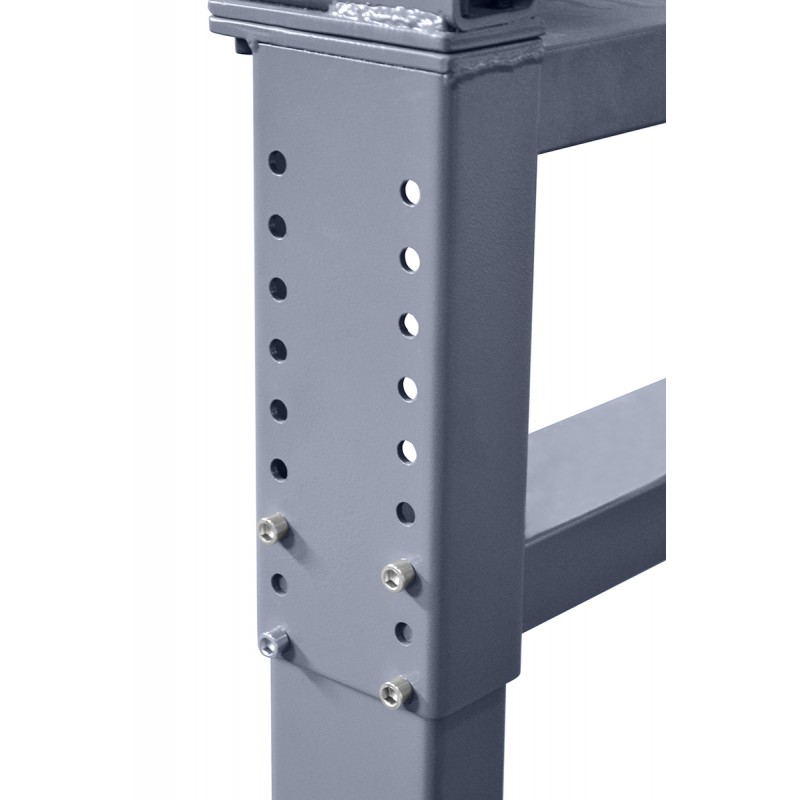

• Height adjustment 545–855mm – adaptable to different workstations
• Working width 600mm – suitable for wide or non-standard components
• Stable welded steel structure – resistant to twisting and deformation

Construction and technology

The roller table is equipped with 10 steel rollers, each with a working length of 470mm. The rollers are mounted on precision ball bearings, providing low rolling resistance and smooth transport of heavy parts. The main frame is made from reinforced steel profiles, ensuring high structural rigidity and long service life of the entire unit.

Precision and efficiency

The 3m length and the large number of rollers allow for stable workpiece guidance along the entire feed path, which results in higher cutting quality and fewer trimming errors. The sturdy design guarantees stability even at maximum load, significantly improving ergonomics and operator safety.

Applications

The CORMAK roller conveyor is used in metalworking plants, production facilities, mechanical workshops and processing lines where accurate guidance and support of the workpiece is required during machining or material transport. It is ideal as an extension for band saws, drills and other machine tools.

Standard equipment

• 10 bearing-mounted steel rollers
• Welded steel frame
• Adjustable legs (545–855mm range)
• Mounting holes for floor anchoring

Technical parameters

Invest in the CORMAK 3m roller conveyor and gain stable, safe and efficient handling of heavy workpieces. Choose proven solutions for professional industrial processes.
