Laser Welding Machine CORMAK WL1000 | Industrial Metal Welding | CORMAK

Category: Laser Welding Machines

Laser Welding Machine CORMAK WL1000 1000W

Reference:

WL1000

Manufacturer: CORMAK

Compact device using FIBER technology designed for welding various types of metals with precision far exceeding that of traditional welding methods.

Advanced technological solutions used in this welder allow for the creation of high-quality, repeatable welds on thin-walled materials and components without the risk of deformation.

CORMAK LASER WELDERS COME WITH A 24-MONTH WARRANTY!

Not available for purchase

Find out more about financing

Any questions? Give us a call!

export@cormak.eu

+48 25 6310027 ext. 105

+48 25 6310027 ext. 130

+48 721939797

+48 609939400

+48 609939051

+48 609939741

+48 721939787

+48 501944934

tax included kr6,406.25

excl. tax kr5,125.00

Polish manufacturer

Top Quality

Warranty service

and post-warranty service

CE certificates

We comply with EU standards

12 / 24-month warranty

Secure purchase

Description

CORMAK provides instructional videos on its YouTube channel, which can be very helpful during the first commissioning of the device. These materials make it easy to learn about the operation and key functions of our machines. Feel free to explore them to make starting work with our products easier!

Advantages of the laser welder

Easy to use – thanks to its design and applied solutions, the operator can start work after a short training period.
Low indirect radiation — during operation, wearing protective glasses to filter strong light is sufficient.
Much faster welding compared to traditional methods — efficiency can increase from 3 to 10 times.
Concentrated beam: minimal structural change due to the small heat-affected zone,
Repeatable welds — the weld seam is neat, and the joints are highly durable.
Capable of welding very thin materials such as 0.5mm stainless steel.
Welding with or without filler wire (option*).

Technical specifications

Maximum power	1000 W
Laser wavelength	1080 nm
Penetration depth (stainless steel 1 m/min)	2.68 mm
Penetration depth (mild steel 1 m/min)	2.06 mm
Penetration depth (aluminium 1 m/min)	2.0 mm
Penetration depth (brass 1 m/min)	2.0 mm
Welding speed	0–120 mm/s
Automatic wire feeder	Ø 0.8–1.2 mm
Maximum power consumption	≤3 kW
Cooling system	Water-cooled
Operating voltage	230V
Shielding gas consumption	approx. 10–12 L/mm Ø wire
Dimensions	600 × 1100 × 1100 mm
Weight approx.	120 kg

THICKNESS OF WELDED MATERIALS
Material	WELDER POWER
Material	1000 W	1500 W	2000 W	3000 W
Stainless steel	0.5–3.0 mm	0.5–4.0 mm	0.5–5.0 mm	0.5–8.0 mm
Mild steel	0.5–2.5 mm	0.5–3.5 mm	0.5–4.5 mm	0.5–8.0 mm
Galvanised steel	0.5–1.2 mm	1.5–1.8 mm	1.5–4.0 mm	1.5–7.0 mm
Aluminium	0.5–1.2 mm	1.5–1.8 mm	1.5–4.0 mm	1.5–7.0 mm
Brass	0.5–1.2 mm	1.5–1.8 mm	1.5–2.5 mm	1.5–4.0 mm

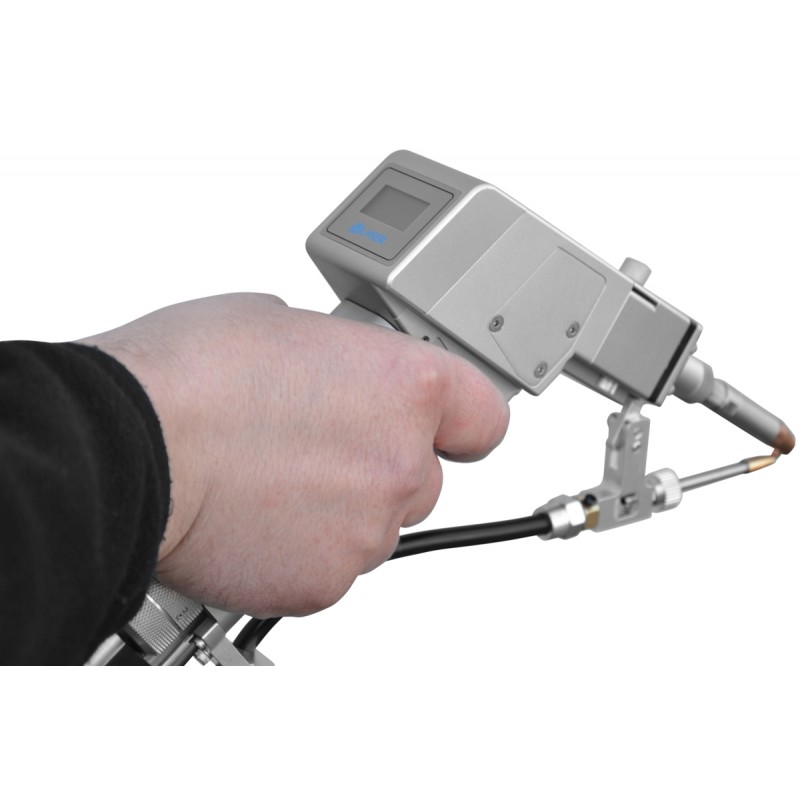

LATEST GENERATION WELDING HEAD

WOBBLE-type head;
Automatic wire feeder included;
Adjustable spot size 0–5mm;
High-power welding head allows multiple beam patterns: ○,―,•, ꓷ, 0, ▲, 8;
Integrated connections for shielding gases and cooling system;
Interchangeable nozzles allow welding at various angles;
10 m fibre cable connecting the head to the source;
Welding parameters adjustable directly on the head — no need to approach the control panel;
Fully ergonomic — lightweight, flexible head allows welding even in hard-to-reach areas;
Easy to service — quick and simple replacement of the protective lens.

Automatic wire feeder included

The wire feeding system is synchronised with the welder’s software. Its purpose is to feed filler material, allowing the operator to fully focus on working with the head.

WELDING MODES

Choosing the right welding mode allows achieving optimal results. The mode should be selected depending on the type and thickness of the welded material.

*Infinity symbol mode – EXCLUSIVE TO US, AVAILABLE AS AN ADDITIONAL OPTION

Mode dedicated to hard-to-weld materials with preheating. Produces a flat seam that requires no further processing — particularly useful when welding very thin materials.

Set includes

Laser welder with built-in cooling system
Welding gun with adjustable focal length and full set of accessories
Fibre laser source
Automatic wire feeder
Set of cables
Starter set of nozzles and protective lenses

The appearance of the housing may vary depending on the order date, but the technical specification remains unchanged, ensuring consistent quality and performance.

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

See instruction videos
