Reference:
XN835SERVO
The CORMAK XN835 SERVO Toolroom Milling Machine is equipped with a swivelling vertical head ±90° and a horizontal milling setup. Designed for toolrooms and workshops producing complex, high-quality parts. Despite its compact size, the machine enables the machining of relatively large workpieces.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
Machine Description
-
Stable and rigid construction with wide, hardened flat guides on all axes
-
High precision ensured by ball screws on all axes
-
Central lubrication system for all guides
-
Easy operation appreciated by users
-
Large and high-load working table
-
Tilting milling head
-
Stepless spindle speed adjustment
-
Cooling system
Technical Parameters
| Table dimensions | 750 mm x 320 mm |
| T-slots (number x width x spacing) | 5 x 14 x 63 mm |
| Vertical table dimensions | 890 x 225 mm |
| Vertical table T-slots (number x width x spacing) | 3 x 14 x 63 mm |
| Distance between spindle nose and table surface | 50 - 450 mm |
| Distance between horizontal spindle axis and table surface | 145 - 545 mm |
| Minimum distance between horizontal spindle axis and table surface | 140 mm |
| X-axis travel | 405 mm |
| Y-axis travel | 305 mm |
| Z-axis travel | 400 mm |
| Spindle taper | ISO40 |
| Spindle speed (stepless adjustment) | 40–2000 rpm |
| Quill travel | 65 mm |
| Head swivel range | ±90° |
| Feed speed X, Y, Z | 0–1000 mm/min |
| Rapid feed speed X, Y, Z | 1200 mm/min |
| Main motor power | 3.7 kW / 400 V |
| Overall dimensions | 1500 x 1700 x 1800 mm |
| Weight | 1450 kg |
Are you interested in this product?
Contact our consultant

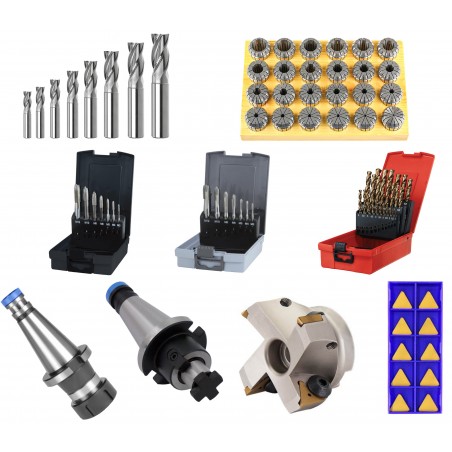

Optional equipment
