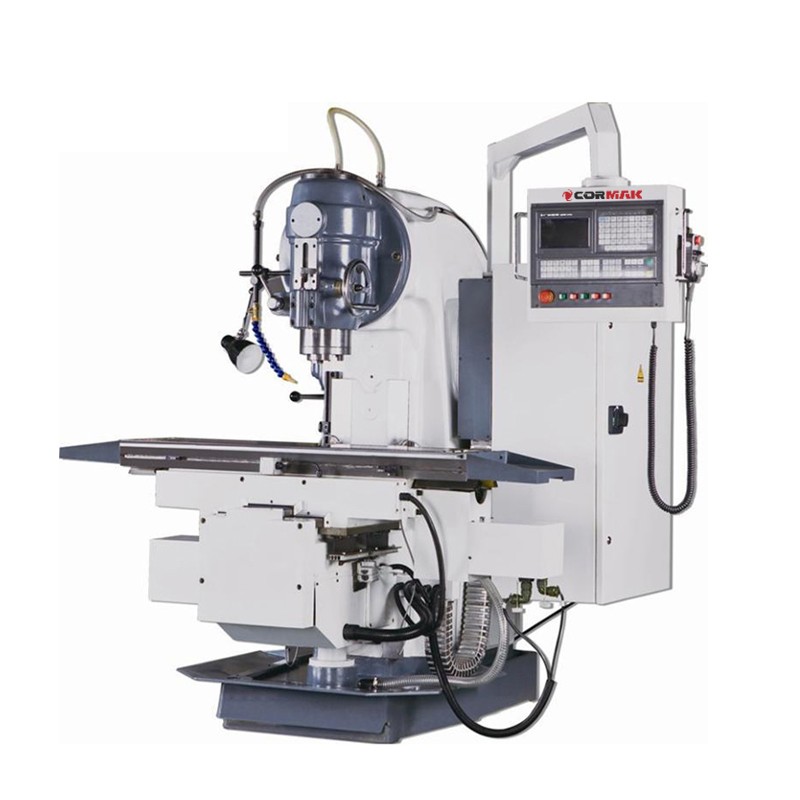

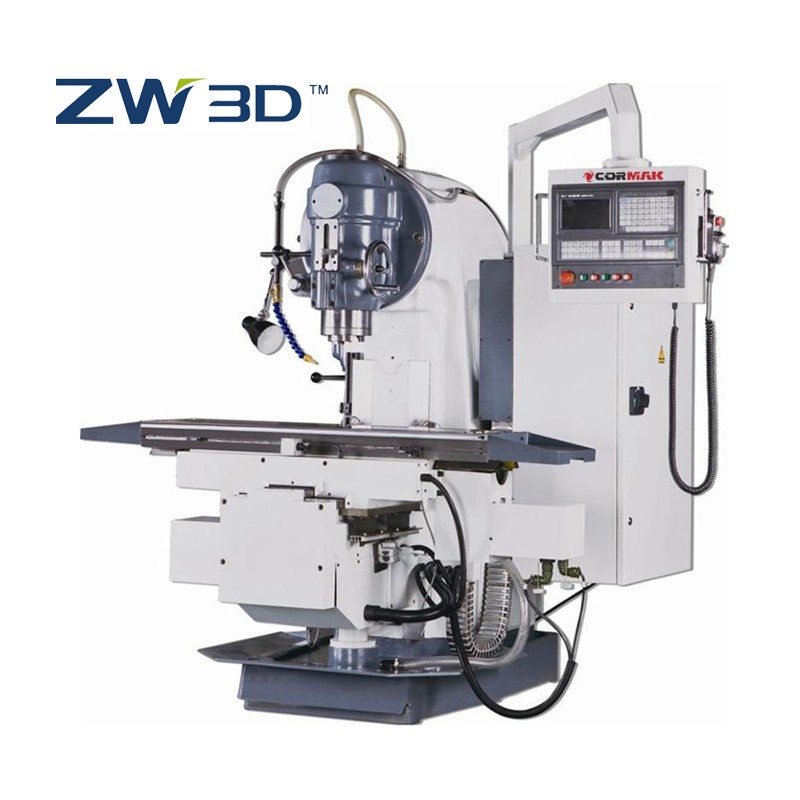

CNC Milling Machine CORMAK VM1320

CNC Milling Machine CORMAK VM1320 is an advanced CNC machine designed for precise metal machining in a wide range of industrial applications. Equipped with modern CNC control and a solid, compact structure, this milling centre for metal offers high performance, reliability and versatility.

Main advantages of the CORMAK VM1320

The CORMAK VM1320 combines compact size with advanced technology, delivering significant benefits for manufacturing processes:

• Optimised working area: Worktable of 1320 × 320 mm with a maximum load capacity of 320 kg and travel range of 800 × 280 × 350 mm, ideal for small and medium-sized workshops.
• High precision: Excellent positioning accuracy and repeatability ensure perfect surface finishes even for complex components.
• Efficient spindle: Spindle speed range 30–1500 rpm, taper ISO 50, driven by a 7.5 kW motor, suitable for machining steel, aluminium and titanium alloys.
• Structural stability: The 2800 kg weight minimises vibration, ensuring accuracy during intensive cutting operations.
• Flexible configuration: Optional 4th axis, through-spindle cooling and advanced CNC systems (GSK, Siemens 828D, Fanuc) provide outstanding versatility.
• Intuitive operation: Modern CNC control ensures easy programming and CAD/CAM compatibility, optimising productivity.
• Energy efficiency: Compact dimensions (1930 × 2055 × 1960 mm) and a 7.5 kW motor reduce power consumption and operating costs.
• Versatility: Capable of machining a wide range of materials, from light alloys to hardened steels, in a single setup.

The CORMAK VM1320 CNC Machining Centre is an excellent choice for production facilities seeking a reliable and precise milling machine for versatile metalworking applications.

Design and technology of the CORMAK VM1320

The CORMAK VM1320 has been engineered for durability, precision and operator convenience. Key components include:

Machine structure and worktable

The rigid cast-iron structure provides outstanding stiffness and vibration damping. The 1320 × 320 mm table with 320 kg load capacity allows stable clamping of workpieces of various sizes and shapes.

Spindle and drive system

The ISO 50 spindle, operating at 30–1500 rpm and driven by a 7.5 kW motor, ensures high cutting performance. The optional through-spindle cooling system increases machining efficiency and extends tool life.

Guides and servo drives

Linear guides and precision servo drives ensure smooth movement in the X, Y and Z axes (800 × 280 × 350 mm travel) with a feed rate of 6–3200 mm/min, minimising positioning errors and improving dynamics.

CNC control system

Advanced CNC control (standard GSK, optional Siemens 828D or Fanuc) allows precise programming and process optimisation. Integration with CAD/CAM systems provides flexibility for complex machining operations.

Precision and productivity

The CORMAK VM1320 ensures excellent precision thanks to its robust construction and advanced CNC system. Feed rates of 6–3200 mm/min and spindle speeds of 30–1500 rpm enable tool-path optimisation, shorter cycle times and improved productivity. Its compact design and 7.5 kW motor make it ideal for both serial and single-part production.

Applications of the CORMAK VM1320

The CORMAK VM1320 milling centre is suitable for demanding industries such as:

• Automotive industry: Machining precision engine parts, housings and gears.
• Machinery manufacturing: Machining shafts, frames and machine components.
• Mould and die making: Manufacturing injection moulds and dies for plastics and metal processing.
• Aerospace industry: Precision machining of aluminium, titanium and stainless-steel components.
• Workshops and toolrooms: Ideal for both single and small-batch production requiring flexibility and accuracy.

Thanks to its compact size and versatility, this CNC machining centre is a perfect solution for small and medium-sized production plants.

CNC control systems – GSK, Siemens Sinumerik 828D and Fanuc

The CORMAK VM1320 offers professional CNC systems from renowned manufacturers such as GSK, Siemens and Fanuc, ensuring precision, efficiency and ease of use.

GSK – cost-effective solution for versatile use

• Intuitive interface: Simple graphical display for easy programming and operation.
• Reliability: Stable performance under varied workshop conditions.
• Compatibility: Designed for versatile machining applications.

Siemens Sinumerik 828D – advanced control for demanding machining

• High processing power: Rapid data handling for dynamic machining.
• Advanced functions: Machining cycles, interpolation and path optimisation.
• CAD/CAM integration: Seamless connection with design software.

Fanuc – stability and accuracy

• Long-term stability: Consistent precision in continuous production.
• Advanced features: Supports complex machining operations.
• User-friendly interface: Easy programming and setup.

Choose the CNC system that best suits your needs to enhance productivity and precision in metalworking.

Technical specifications

Standard equipment

• CNC control system
• 3-axis digital readout
• Spindle drawbar
• 24V lighting system
• Cooling system

Optional equipment*

• GSK / Siemens 828D / Fanuc control system
• Through-spindle cooling
• 4th axis
• Automatic tool measuring probe
• Automatic workpiece measuring probe
• Fully enclosed machine housing

*The quoted price refers to the machine only and excludes optional/additional equipment, installation, transport and training — please contact our consultant for more details.

Why choose CORMAK?

As an experienced CNC machine manufacturer, CORMAK has been providing reliable industrial solutions for over 20 years. Our CNC machines meet the highest quality standards, are CE certified and supported by professional service. With a 15,000 m² warehouse base and a team of specialists, we offer full technical support and expert advice.

• Experience: 16 years servicing Siemens CNC systems.
• Quality: Machines built to European safety standards.
• Support: Professional consultation and fast warranty and post-warranty service.

Choosing CORMAK CNC milling machines means investing in precision, reliability and long-term performance.

Order your CNC Milling Machine CORMAK VM1320 today!

Boost your production precision and efficiency with the CORMAK VM1320. Contact our team for detailed information, a personalised offer or to arrange a demonstration.
