Sandblaster Cabinet 1000L CORMAK KDP1000 + Dust Extractor DC15

Sandblaster cabinet KDP1000 – industrial sandblaster for rims, structures and metal components

KDP1000 sandblaster cabinet is an advanced machine designed for intensive operation in industrial environments such as automotive, shipbuilding, aerospace and commercial services. A tank with an impressive capacity of 1000 litres and a spacious working area of 850 litres allow processing of large components – from rims and wheels to housings and heavy structural elements. High build quality and reliability make the KDP1000 a professional sandblaster for metal for the most demanding users.

Main advantages of the machine

• Working capacity of up to 1000 litres – enables processing of large-sized components.
• Dust-free operation thanks to tight perimeter seals – protecting the environment and operator health.
• Closed-loop circulation system – reduced dust emission in the workplace.

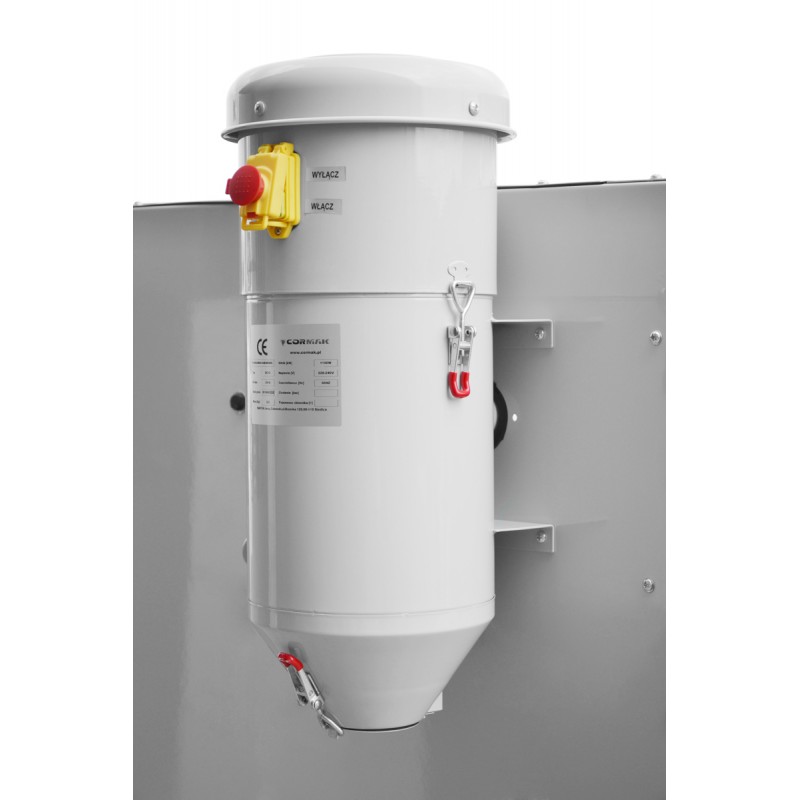

• Efficient cyclone dust extractor DC15 supplied as standard – effective removal of abrasive particles.
• Compatible with various abrasives: aluminium oxide, glass beads, quartz sand, emery.
• Easy abrasive replacement – thanks to the built-in drain at the bottom of the tank.

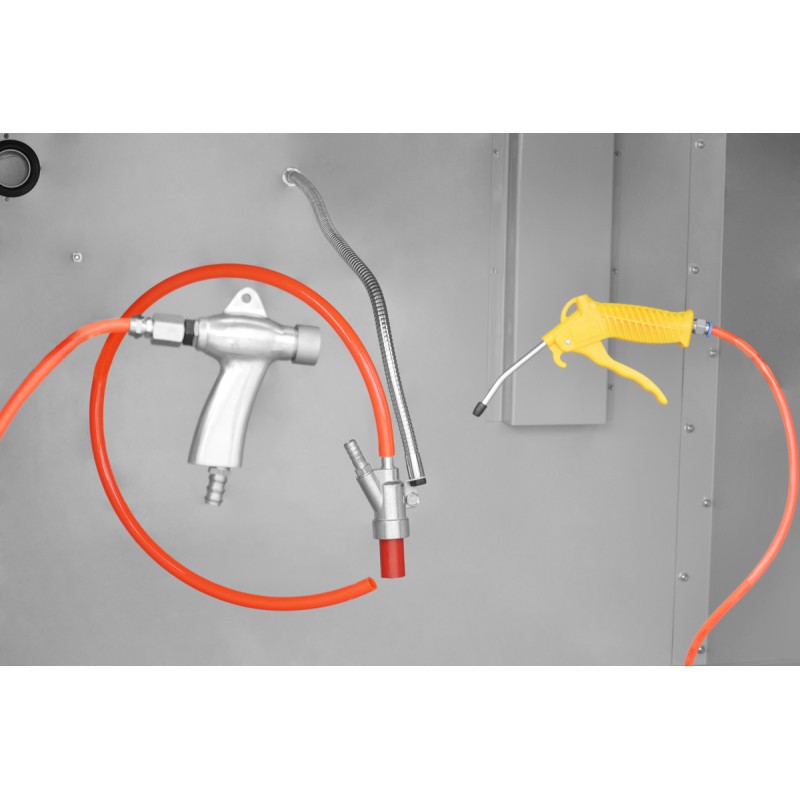

• Complete equipment: gloves, hand sandblasting gun, fixed blasting gun, air blow gun.

Design and technology

The KDP1000 sandblaster cabinet has been designed for intensive use. The robust powder-coated steel construction ensures resistance to abrasion and environmental factors. The housing is easy to maintain, while the sealed operating system limits dust generation and increases operational safety. The hose-type sandblasting system located in the lower part of the tank ensures stable abrasive flow. The large working area and convenient access to the cabinet interior enable efficient handling of components and maximum utilisation of the available workspace.

Precision and work efficiency

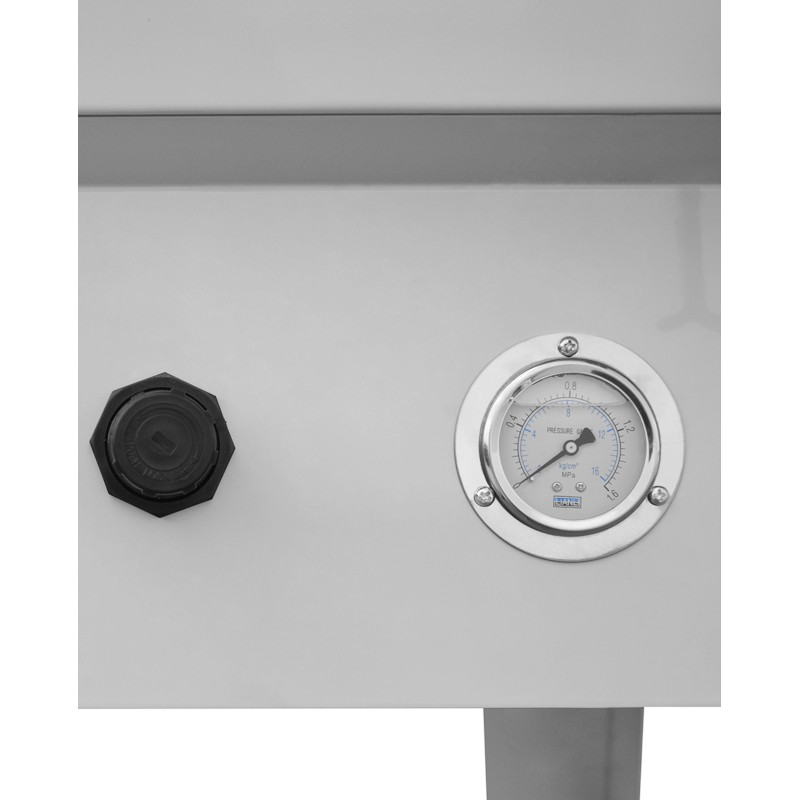

A working pressure range from 4 to 8 BAR allows the sandblasting intensity to be adjusted to the type and condition of the surface. Thanks to 230 V power supply and a reliable pneumatic system, the KDP1000 sandblaster cabinet guarantees high repeatability of processing results. Integrated lighting and visibility through a wide viewing window provide full control over the cleaning process, even when working on complex or hard-to-reach areas of the components.

Applications

The KDP1000 model is widely used across many industrial and service sectors. It performs excellently as:

• A sandblaster for rims – refurbishment of steel and aluminium wheels,
• Equipment for surface preparation prior to powder coating, welding or galvanising,
• A sandblaster for metal – removal of corrosion and paint coatings from steel profiles, fittings and structures,
• Equipment for cleaning engine components, housings, casings, suspension parts and mechanical components.

The ability to use various types of abrasive makes the KDP1000 sandblaster cabinet a versatile tool for processing metal components and more.

Standard equipment

• 2 integrated rubber working gloves
• Hand sandblasting gun
• Fixed blasting gun (mounted inside the cabinet)
• Air blow gun
• 7 ceramic nozzles
• DC15 cyclone dust extractor

Technical data of the KDP1000 sandblaster cabinet

Note: the KDP1000 sandblaster cabinet is supplied in a self-assembly version.

Order the industrial KDP1000 sandblaster cabinet from CORMAK and gain a reliable tool for professional surface treatment of metal components!
