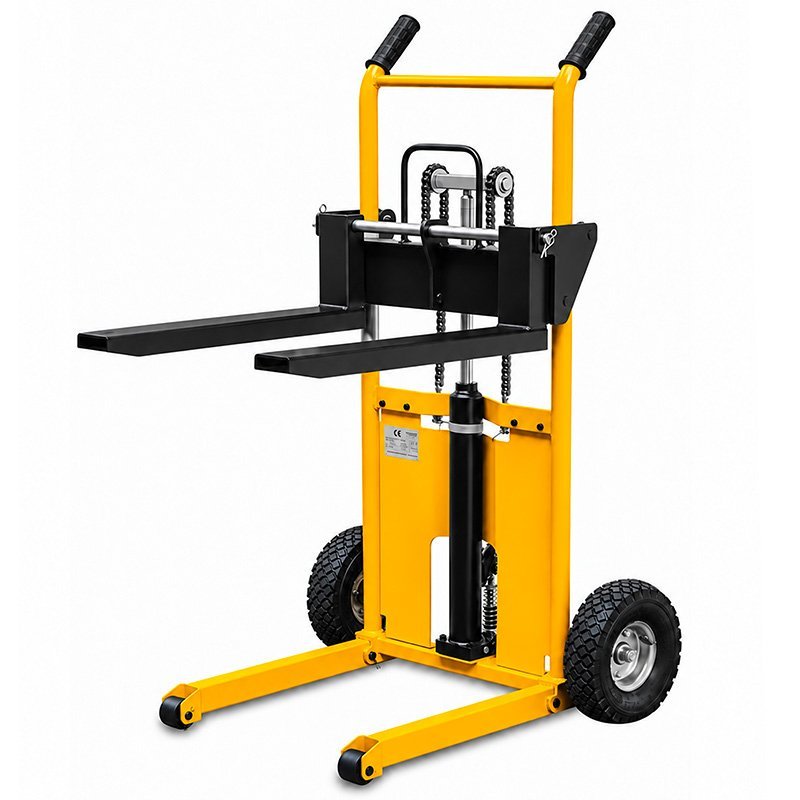

Manual Stacker with Pneumatic Wheels CORMAK WLT-T – 200kg Load Capacity, 900mm Lifting Height

The WLT-T manual stacker with pneumatic wheels and a 200kg load capacity is designed for lifting and moving loads in warehouses, workshops and manufacturing facilities. It combines a mast structure with load forks and a compact chassis, supporting material handling at workstations. The 250mm diameter pneumatic wheels help absorb vibrations during movement, improving comfort when guiding the stacker manually.

Main advantages of the WLT-T 200kg manual stacker

• Rated load capacity of 200kg – allows components, crates and equipment items to be handled during transport and assembly operations.
• Large Ø250mm pneumatic wheels – help absorb vibrations generated during movement and make the equipment easier to guide.
• 535mm fork length – provides load support during lifting and transport.
• Lowered fork height of 65mm – makes it easier to pick up loads with limited ground clearance.
• Overall width of 540mm – facilitates manoeuvring around workstations and reduces the space required for storing the stacker.
• Lifting and transport in one piece of equipment – helps reduce manual handling of heavy components between successive stages of work.

Mast construction and forks for load handling

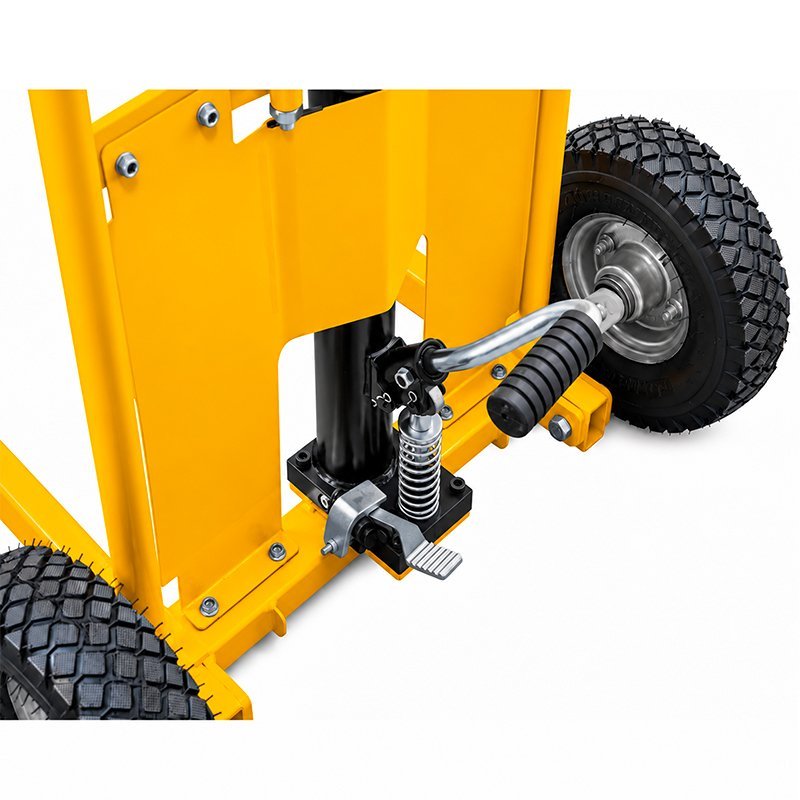

The WLT-T mast stacker uses a vertically guided fork assembly, allowing the load support height to be adjusted. The construction combines lifting capability with chassis mobility, enabling the equipment to be used both for delivering materials and preparing them for transfer at a workstation. Two handles provide the operator with comfortable grip points when manually guiding and positioning the stacker.

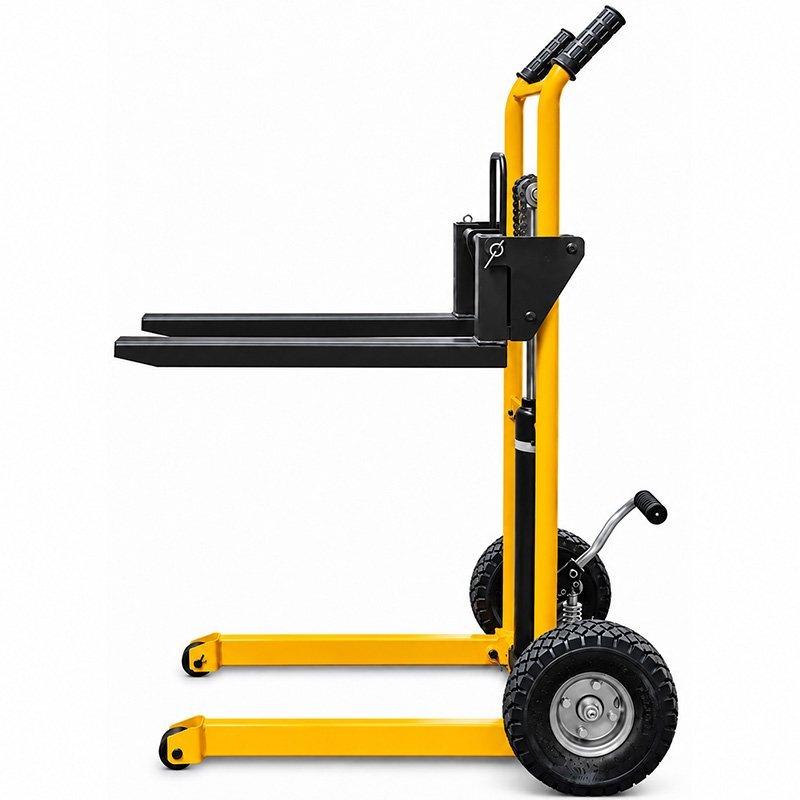

535mm forks with a maximum spacing of 515mm

The forks form two separate support elements for the transported item. Their 535mm length and maximum spacing of 515mm allow the stacker to handle loads with dimensions suited to the available support surfaces. The open construction makes it easier to observe the fork positions when approaching a load and aligning it with the workstation.

Low fork height in the lowered position

The initial fork height of 65mm makes it easier to insert the forks beneath items positioned close to the floor. This is useful when picking up crates on feet, components placed on supports and equipment with sufficient clearance for fork insertion. The low support position simplifies preparing loads for lifting and subsequent transport.

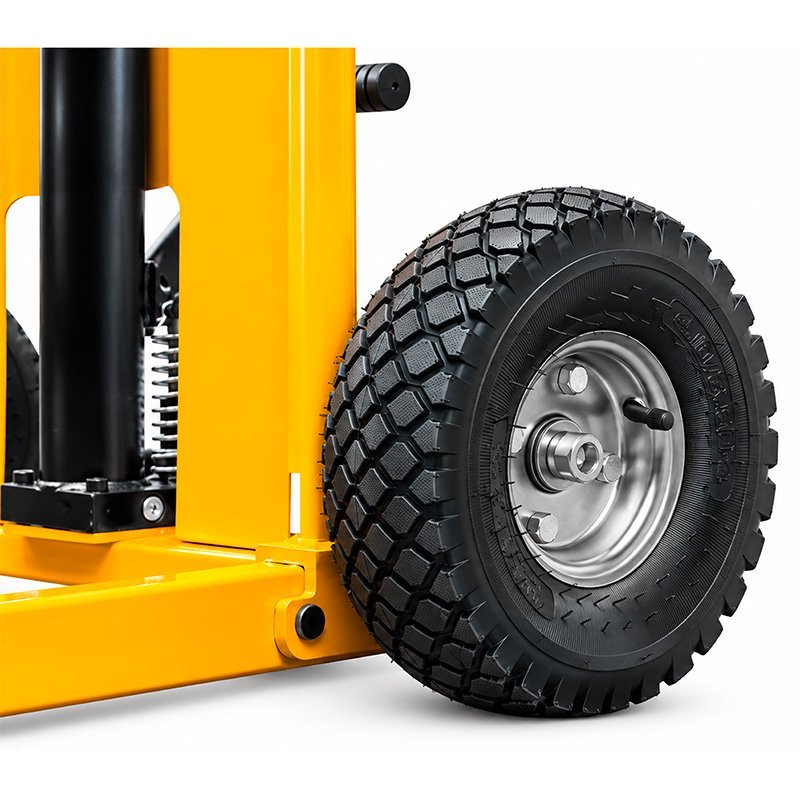

Pneumatic wheels – comfortable stacker manoeuvring

The manual stacker with pneumatic wheels uses the elasticity of its tyres to reduce vibrations transferred from the floor to the chassis. Large 250mm diameter wheels support smooth movement across hard surfaces, which is particularly useful when frequently travelling between workstations.

The chassis also features small 50mm diameter wheels positioned at the front of the base. Their compact size allows the front supports to maintain a low profile. The combination of large main wheels and small front wheels is suited to the stacker's intended function of lifting and transporting loads over short distances.

Compact dimensions and efficient workflow organisation

Overall dimensions of 860 x 540 x 1210mm make the WLT-T suitable for use in workshop and warehouse environments. Its 540mm width facilitates approaching workstations, while the compact footprint makes it easier to allocate storage space for the equipment. The stacker can be moved between material collection and delivery points, allowing it to serve several workstations.

Combining lifting and transport reduces the need to lift and carry components manually. The 200kg manual stacker supports repetitive tasks involving component delivery, preparing equipment for assembly and moving materials within a facility.

Applications of the WLT-T stacker in warehouses and workshops

The WLT-T is suitable for use in maintenance departments, mechanical workshops, technical warehouses and assembly workstations. It facilitates transporting machine parts, transport crates and equipment items with suitable points for fork engagement. It is useful for supplying workstations, reorganising working areas and moving components during servicing operations.

Equipment and construction components

• Mast construction with a lifting fork assembly.
• 535mm long load forks.
• Large 250mm diameter pneumatic wheels.
• Small 50mm diameter front wheels.
• Handles for guiding the stacker.

Technical specifications of the WLT-T manual stacker

Order the WLT-T manual stacker with pneumatic wheels from CORMAK and improve load lifting and transport operations in your facility. Contact our adviser to discuss selecting equipment suited to the dimensions of the transported items and your workstation layout.
