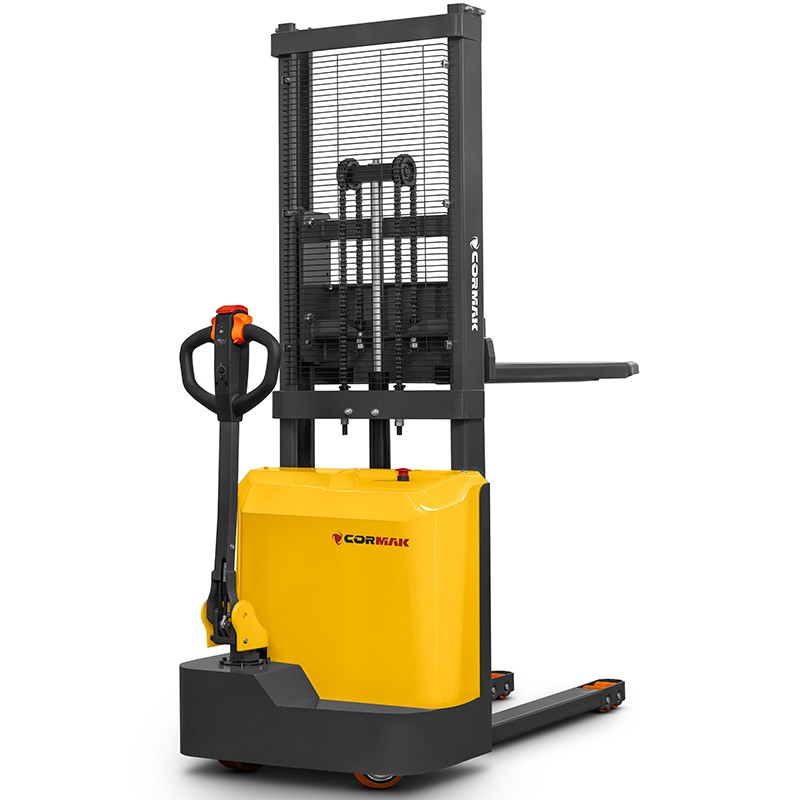

Electric Pallet Stacker CORMAK Q15E16-2 (load capacity 1500kg, lift height 1600mm)

CORMAK Q15E16-2 electric mast truck – lifting capacity 1,500 kg, lift height 1,600 mm

The CORMAK Q15E16-2 electric mast truck is a compact warehouse truck designed for the transport, lifting and handling of loads weighing up to 1,500 kg. The maximum lift height of 1,600 mm enables efficient pallet handling, the loading and unloading of goods, and the placement of loads on low racks and platforms.

The truck is operator-guided and fitted with electric drive and lifting systems, thereby reducing physical effort and increasing the efficiency of day-to-day transport tasks. Its compact dimensions, with an overall width of 780 mm and a turning circle of 1,350 mm, make it easy to manoeuvre in warehouses, production halls and other confined spaces.

Key features of the Q15E16-2 mast truck

• Lifting capacity of 1,500 kg – enables the handling of heavier pallets and warehouse loads.
• Lifting height of 1,600 mm – suitable for loading, unloading and stowing goods on raised platforms and lower racking levels.
• Electric drive – a 0.75 kW motor streamlines load transport and reduces operator effort.
• Electric lift – a 2.2 kW lift motor ensures efficient load handling.
• Compact design – a width of 780 mm and a turning radius of 1350 mm facilitate work in narrow aisles.
• 2 × 12 V / 85 Ah batteries – power the electric drive and lift systems.
• Polyurethane wheels – perform well on typical warehouse and industrial floors.
• Electromagnetic brake – aids safe stopping and control of the truck during operation.
• 1150 mm forks – suitable for typical palletised transport operations.

Efficient warehouse operation

The CORMAK Q15E16-2 has been designed with everyday internal transport in mind. A lifting capacity of 1,500 kg, combined with a centre of gravity of 500 mm, allows for efficient load handling whilst maintaining the truck’s compact dimensions.

The travel speed is 3.5 km/h with a load and 4 km/h without a load, making the truck ideal for both precise manoeuvring and the transport of goods between workstations.

A lifting speed of 85 mm/s with a load and 110 mm/s without a load enables the smooth execution of repetitive warehouse operations.

Compact dimensions and easy manoeuvrability

The truck’s overall length is 1,770 mm and its width is just 780 mm. Combined with a turning circle of 1,350 mm, this allows it to manoeuvre efficiently in confined spaces.

The truck can therefore be used in warehouses with narrow aisles, small production halls, the back-of-house areas of shops and wholesalers, and for servicing production workstations.

The forks are 1,150 mm long, with an outer width of 560 mm. The minimum fork height when lowered is 80 mm.

Electric drive and battery power

The Q15E16-2 truck utilises two independent drive systems:

• a 0.75 kW travel motor,
• a 2.2 kW lift motor.

Power is supplied by a set of two 12 V / 85 Ah batteries. The electric drive allows for convenient operation of both travel and load lifting, reducing the effort required by the operator compared to trucks equipped with manual drive or lifting systems.

Stability and operational safety

The truck’s unladen weight is 390 kg, ensuring a stable design whilst maintaining the machine’s compact dimensions. The electromagnetic braking system assists in controlled stopping of the truck during transport.

The polyurethane wheels are designed for use on typical warehouse and industrial surfaces. The truck can negotiate gradients of up to 3 per cent when laden and up to 10 per cent when unladen.

Applications of the Q15E16-2 electric mast truck

The CORMAK Q15E16-2 electric mast truck is particularly well-suited for use in:

• warehouses and wholesale centres,
• logistics and distribution centres,
• production halls,
• industrial plants,
• back-of-house areas in shops and shopping centres,
• goods reception and dispatch areas,
• the transport of pallets between workstations,
• the loading and unloading of goods,
• lifting loads onto platforms and lower racking levels.

Equipment and key components

• electric drive system,
• electric lifting system,
• forks 1150 mm long,
• 2 × 12 V / 85 Ah batteries,
• polyurethane wheels,
• electromagnetic braking system,
• mast with a maximum lifting height of 1,600 mm.

Technical specifications

Electric mast truck for everyday pallet handling

The CORMAK Q15E16-2 combines a 1,500 kg load capacity, electric travel and lift drives, and compact dimensions that make it easy to work in confined spaces. It is a practical solution for day-to-day internal transport, pallet handling and the loading and unloading of goods.

Electric drive and lift assistance reduces operator effort, streamlines the flow of goods and increases warehouse efficiency.
