High-performance edge belt sander designed for sanding edges and surfaces of workpieces of various sizes. Equipped with a large 850 × 300mm worktable, an additional worktable and sanding angle adjustment up to 90°. Its robust steel construction and weight of 172kg ensure stable operation. Maximum power of 3kW and a Ø120mm dust extraction port.

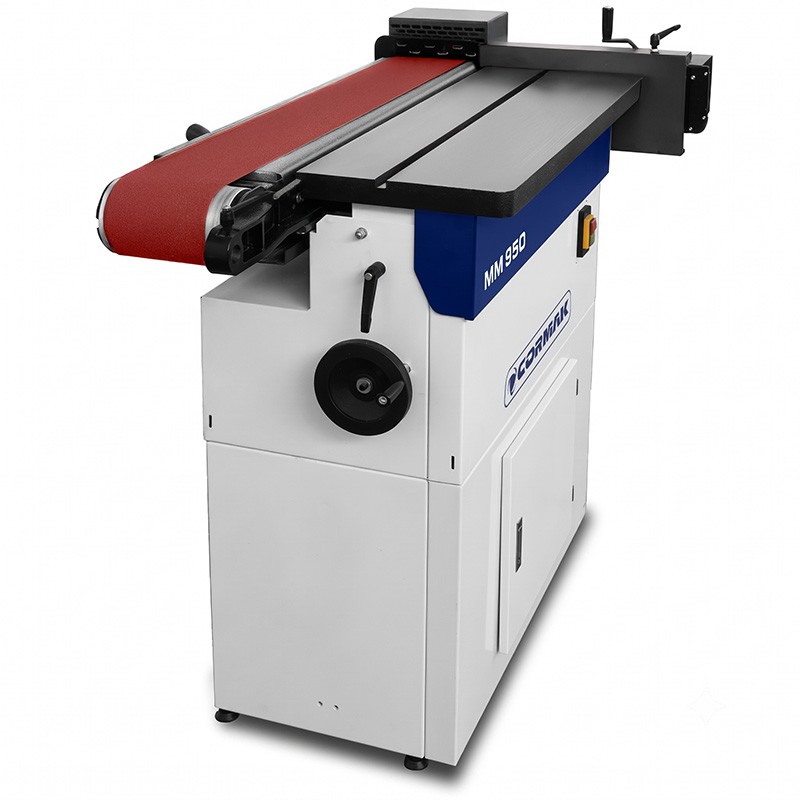

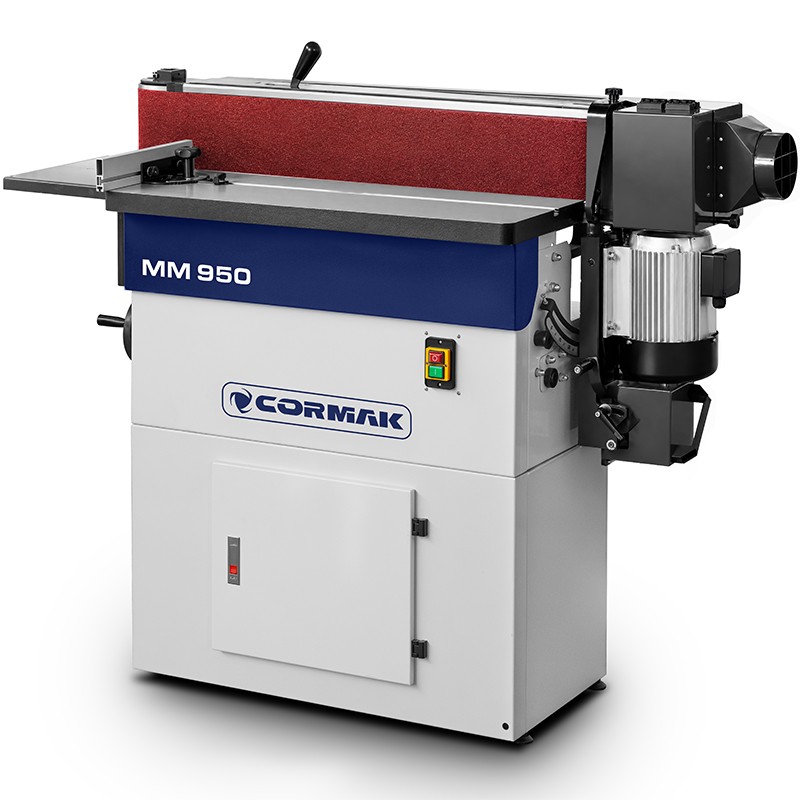

CORMAK MM950 Edge Belt Sander – Robust Construction and Large Working Area
The CORMAK MM950 edge belt sander is a high-performance machine designed for precise sanding of edges and surfaces of workpieces of various sizes. The large main worktable, adjustable sanding angle up to 90° and additional worktable allow the working position to be conveniently adapted to the task at hand.
The rigid steel construction and weight of 172kg provide a stable base during operation. The maximum power of 3kW enables efficient performance of demanding sanding operations, while the 120mm diameter dust extraction port allows the machine to be connected to an external dust extractor or central dust extraction system.
Key Advantages of the Machine
- Large 850 × 300mm main worktable provides convenient support for workpieces.
- Adjustable sanding angle up to 90° allows the working position to be adapted to the type of machining operation.
- Additional 340 × 340mm worktable facilitates sanding of smaller workpieces.
- Rigid steel construction supports stable material guidance and consistent sanding results.
- Maximum power of 3kW enables efficient operation under heavier loads.
- 150 × 2,515mm sanding belt provides a large working surface during sanding operations.
- 110mm diameter roller extends the range of machine applications.
- Ø120mm dust extraction port allows connection to a dust extraction system.
- Stable 800 × 400mm base reduces unwanted machine movement.
- 400V power supply provides suitable operating conditions for the machine in workshops and production facilities.
- 16A five-pin power socket provides a convenient connection for the machine.
Construction and Functionality

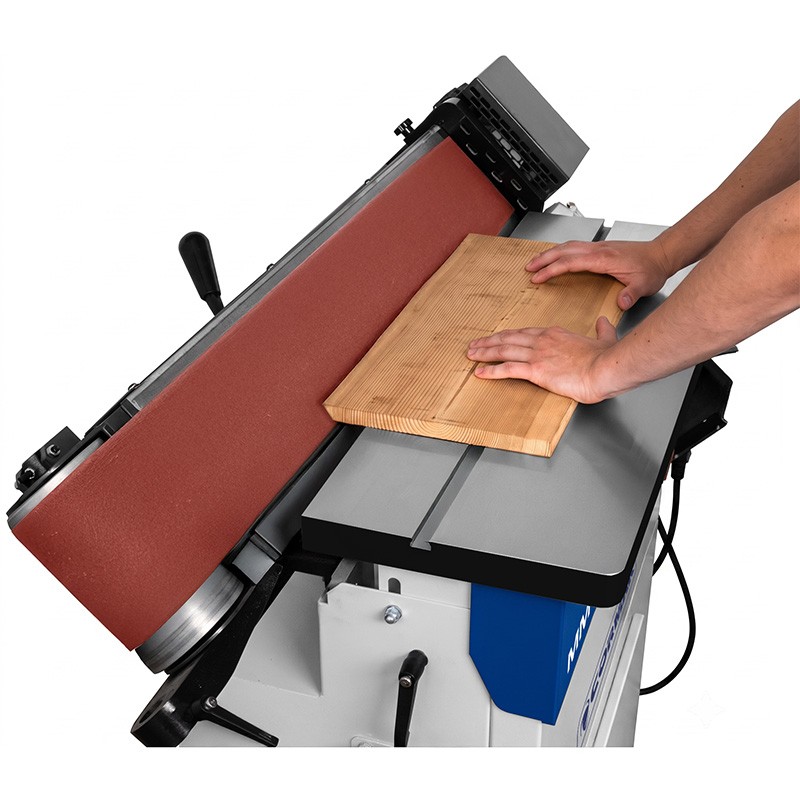

The CORMAK MM950 is equipped with a main worktable measuring 850mm in length and 300mm in width. The large table surface facilitates stable workpiece support and convenient material guidance along the abrasive belt.
The ability to adjust the sanding angle up to 90° allows the working position to be adapted to the shape of the workpiece and the required edge finish. The additional 340 × 340mm worktable extends the machine's capabilities when machining smaller components.
The steel machine body and weight of 172kg reduce vibrations and unwanted machine movement. The overall dimensions of the sander are 1,600 × 460mm, providing a large working area with a base footprint of 800 × 400mm.
Precision and Operating Efficiency
The wide 150 × 2,515mm sanding belt enables efficient sanding of both edges and larger workpiece surfaces. The maximum power of 3kW provides suitable operating performance for demanding workshop and production tasks.
The large worktable and stable construction facilitate controlled material guidance, helping to achieve even and consistent sanding results.
Dust Extraction
The sander is equipped with a 120mm diameter dust extraction port, allowing connection to a suitably selected dust extractor or central dust extraction system. Effective removal of dust generated during sanding helps keep the workplace clean and improves visibility of the workpiece.
Applications
The CORMAK MM950 edge belt sander is suitable for:
- sanding straight edges,
- levelling surfaces,
- machining workpieces at a set angle,
- smoothing surfaces and edges,
- preparing workpieces for subsequent machining operations,
- workshop and production tasks requiring a large working area.
The machine is a suitable solution for woodworking facilities, production workshops, craft workshops and companies machining workpieces of various sizes.
Standard Equipment
- 850 × 300mm main worktable
- 340 × 340mm additional worktable
- 150 × 2,515mm sanding belt
- 110mm diameter roller
- Ø120mm dust extraction port
- Stable steel base
- 16A five-pin power socket
Optional Equipment*
- Dust and chip extractor
- Abrasive belts with grit sizes suited to the machining operation
Technical Specifications
| Model | CORMAK MM950 |
| Main worktable dimensions [mm] | 850 × 300 |
| Additional worktable dimensions [mm] | 340 × 340 |
| Maximum sanding angle | up to 90° |
| Maximum power [kW] | 3 |
| Power supply | 400V |
| Sanding belt dimensions [mm] | 150 × 2515 |
| Dust extraction port diameter [mm] | 120 |
| Roller diameter [mm] | 110 |
| Power socket | 16A, 5 pins |
| Base dimensions [mm] | 800 × 400 |
| Overall dimensions [mm] | 1600 × 460 |
| Weight [kg] | 172 |
Choose stability, a large working area and versatile sanding capabilities – select the CORMAK MM950 edge belt sander and improve the sanding process in your workshop or production facility.
*The indicated price refers exclusively to the machine and does not include optional/additional equipment, installation, transport, or training; please contact our advisor for more information.
