Magnetic Surface Grinder CORMAK 200x480 MYS820

Magnetic Surface Grinder CORMAK 200x480 MYS820 – Compact Precision for Industrial Applications

The Magnetic Surface Grinder CORMAK 200x480 MYS820 is an advanced machine designed for precision grinding of small and medium-sized metal components. Its compact construction and modern technology ensure high machining accuracy and reliable operation in industrial environments.

Key Advantages of the Magnetic Surface Grinder 200x480 MYS820

The Magnetic Surface Grinder CORMAK 200x480 MYS820 is an ideal solution for industrial facilities requiring precision grinding in a compact machine. Designed for professional applications, it combines advanced technology, including automatic feed on two axes and precision guideways, with robust construction to ensure reliability and efficiency. Its compact dimensions (1,680 × 1,140 × 1,800mm) and weight of 800kg make it an excellent choice for smaller workshops and facilities with limited space. Key benefits include:

• High grinding precision: Precision guideways and automatic feeds enable a vertical feed accuracy of 0.01mm.
• Compact working area: The table measuring 400 × 200mm is ideal for machining small and medium-sized workpieces.
• Smooth automatic feed: The two-axis feed system provides precise movement of up to 530mm longitudinally and 220mm transversely.
• Stability and durability: The heavy-duty construction, weighing 800kg, minimises vibration.

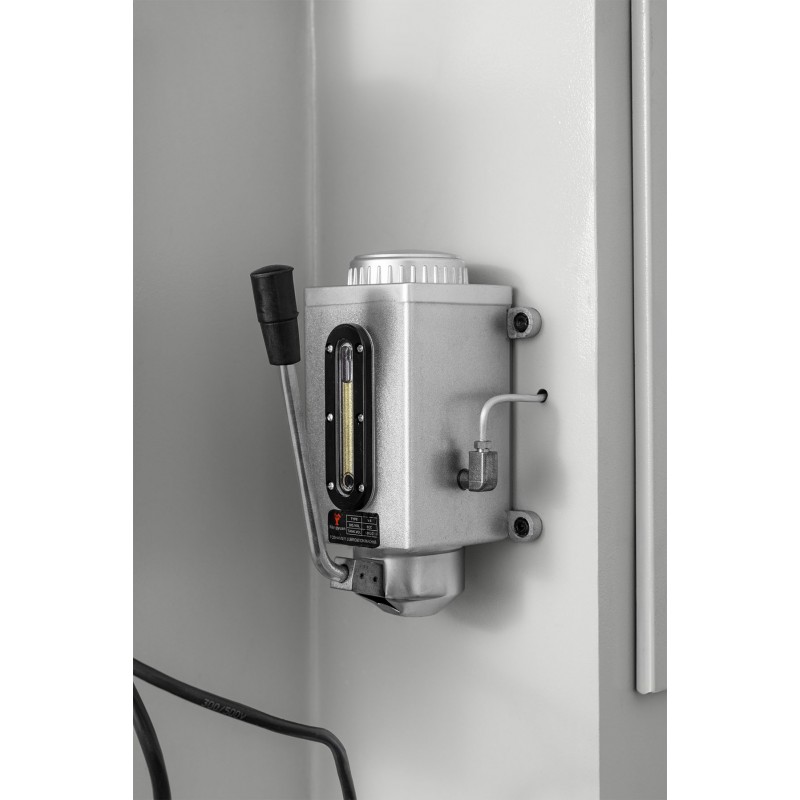

• Easy maintenance: Centralised guideway lubrication reduces the need for manual maintenance.
• Ready for operation: Equipped with a digital readout and fully prepared for an immediate start to production.

Machine Construction and Technology

Robust Construction and Precision Components

The Magnetic Surface Grinder CORMAK 200x480 MYS820 features a heavy-duty construction weighing 800kg, providing stability during machining. Hardened and ground linear guideways eliminate vibration, ensuring smooth table movement and high surface finish quality. The spindle, driven by a 1.1kW motor, operates with a grinding wheel measuring 200 × 19 × 32mm.

Advanced Feed System

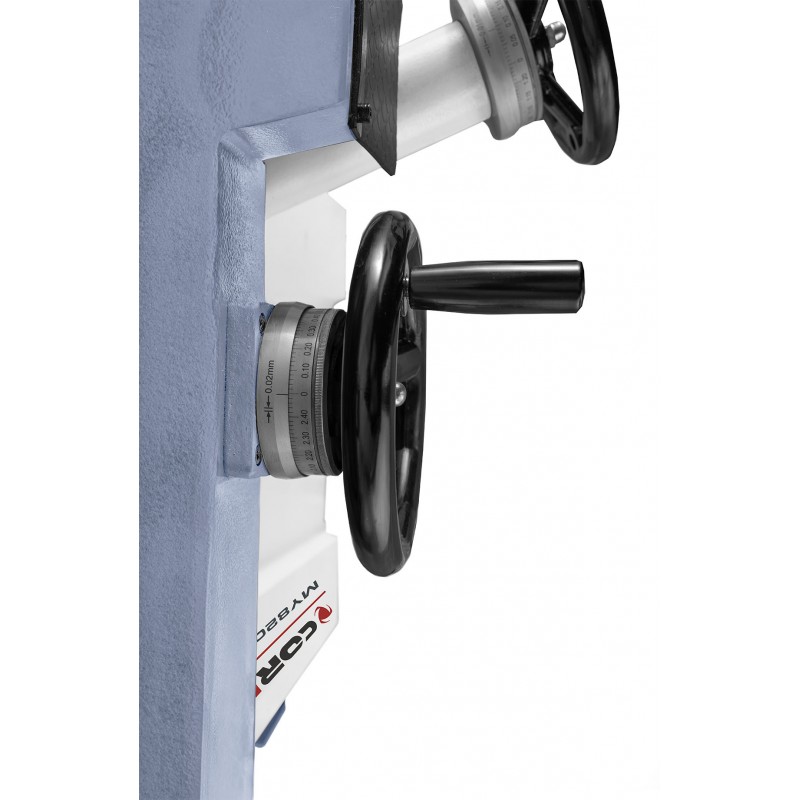

The machine is equipped with automatic feed on two axes, with a maximum longitudinal travel of 530mm and transverse travel of 220mm. The precise transverse feed per revolution is 2.5mm, while the vertical feed is 1.25mm.

Cooling System and Magnetic Table

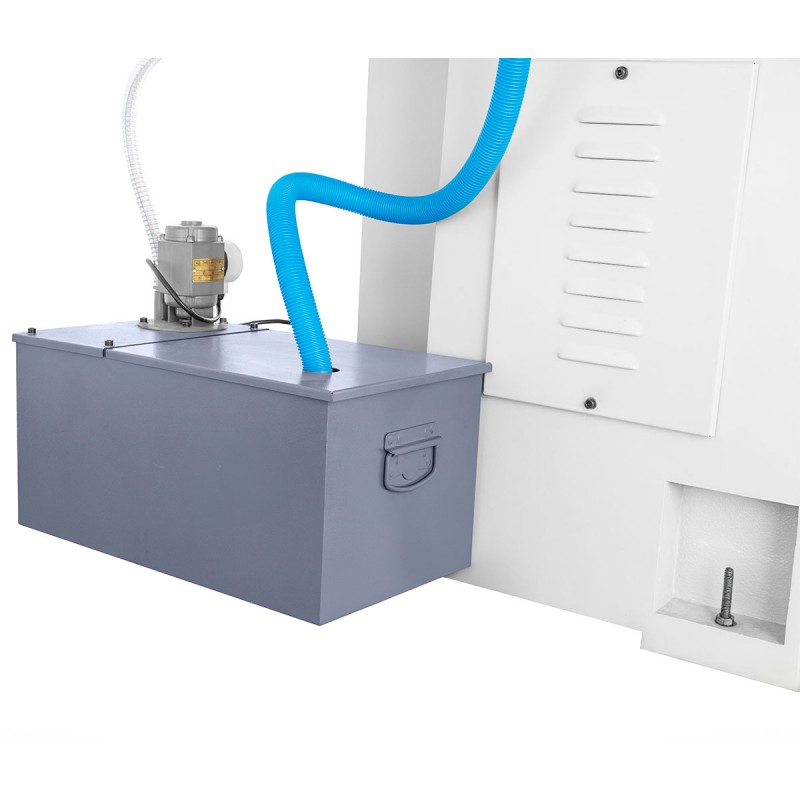

The magnetic surface grinder features an efficient cooling system that protects the workpiece and grinding wheel against overheating. The magnetic table measuring 400 × 200mm ensures secure workpiece clamping.

Grinding Precision and Efficiency

The Magnetic Surface Grinder CORMAK 200x480 MYS820 delivers a high-quality surface finish through precise feed control and stable construction. The maximum spindle-to-table distance of 490mm enables the machining of workpieces of various sizes.

Surface Grinder Applications

The Magnetic Surface Grinder CORMAK 200x480 MYS820 is designed for industrial facilities requiring precision grinding of small and medium-sized components. It is suitable for:

• Toolmaking industry: Manufacturing and reconditioning cutting tools and small injection moulds.
• Mechanical engineering: Grinding machine components such as base plates and precision parts.
• Repair workshops: Reconditioning small machine components requiring high precision.
• Precision engineering: Machining components for electronics, optics and small automotive parts.

Technical Specifications

Technical Parameters

Standard Equipment

• Magnetic table
• Digital readout
• Grinding wheel
• Grinding wheel holder
• Cooling system
• Halogen lighting system
• CE certification
• CE Declaration of Conformity
