CNC Press Brakes – ELITE DA-58T / DELEM

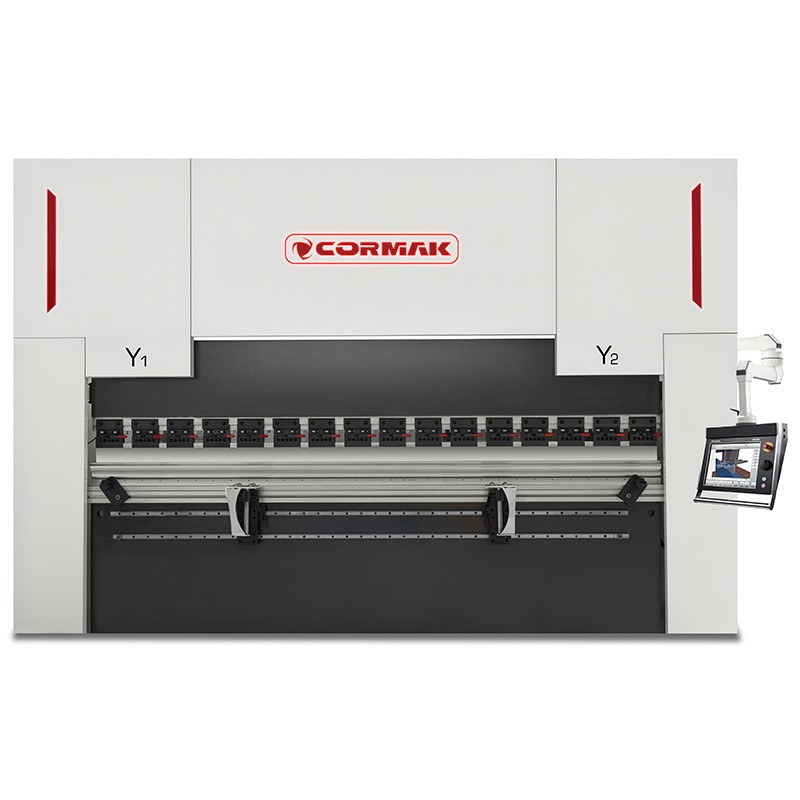

Hydraulic Press Brake CORMAK CNC SERVO ELITE 63×3200 DA-58T
Reference:
ELITE 63×3200
CORMAK hydraulic press brakes are advanced machines designed for precise sheet metal bending using properly selected punches and dies. Our offer includes models equipped as standard with the DELEM DA-58T controller and optionally with DELEM DA-53T, DA-66T, DA-69T or CYBELEC 12 controllers, providing a wide range of functions to perform even the most demanding bending tasks.
Polish manufacturer
Top Quality
Warranty service
and post-warranty service
CE certificates
We comply with EU standards
12 / 24-month warranty
Secure purchase
The presented configuration represents the most popular equipment chosen by customers – a proven and efficient choice for serial production.
Main Features:
-

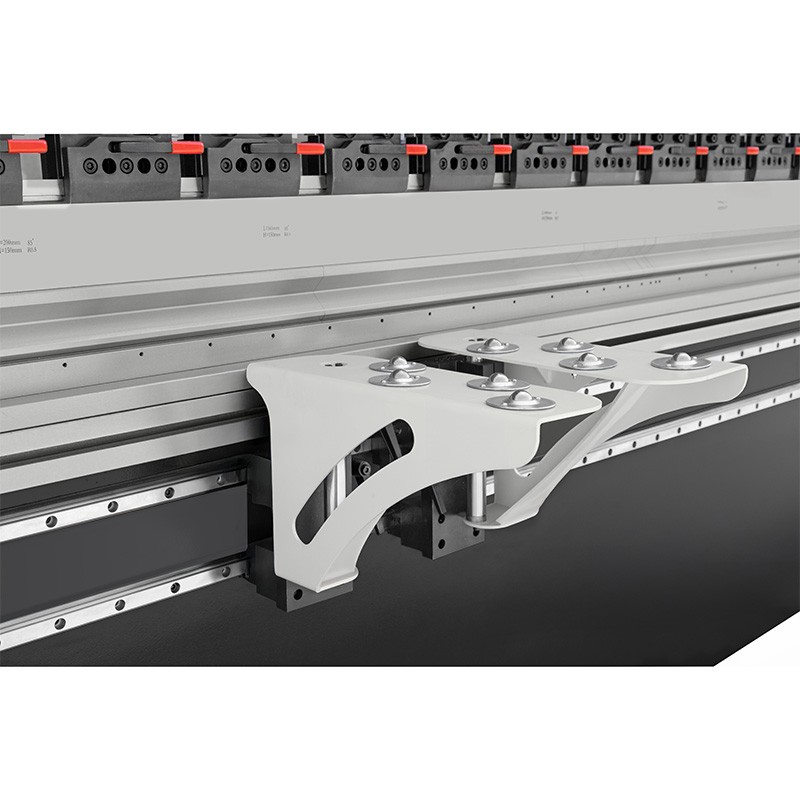

Front supports: 2 pcs on linear guides, ensuring stability during bending operations.
-
Axis Y1, Y2 adjustment: servo drive with encoders
-
Back gauge adjustment (X axis): servo drive with encoders
-
R axis adjustment: servo drive with encoders
-
Automatic deflection crowning system (compensation)
-

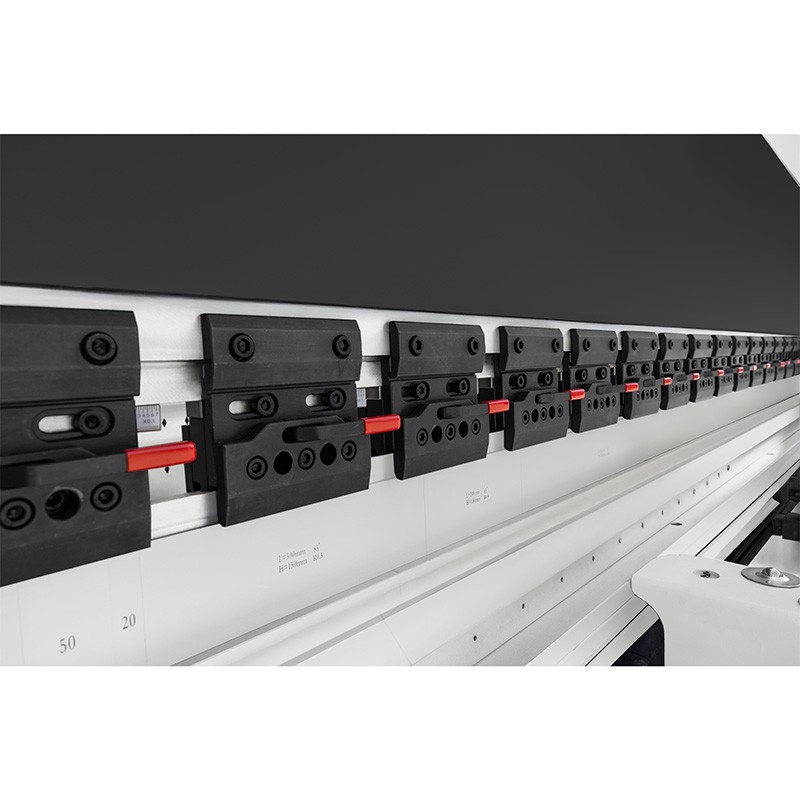

Double-sided punch clamping: quick AMADA-type mount system enabling fast tool changes
Available configurations are tailored to production needs and the type of workpieces – the machine specifications are individually selected according to application and technological requirements.
Technical Parameters
| Max. sheet thickness (S235) | up to 4.0 mm |
| Nominal pressure force | 630 kN |
| Maximum bending length | 3200 mm |
| Throat depth (gap in frames) | 250 mm |
| Maximum ram stroke | 120 mm |
| Maximum opening height | 370 mm |
| Distance between frames | 2700 mm |
| Back gauge travel distance | 600 mm |
| Motor power | 5.5 kW |
| Length | 3300 mm |
| Width | 1400 mm |
| Height | 2300 mm |
| Weight | 5000 kg |
Automatic adjustment of the back gauge (X axis) and R axis (manual option*). The R axis facilitates bending with larger radii, e.g. by a step bending system.
Optional regulation of backgauge fingers on axes Z1, Z2, R1, R2, X1, X2 driven by servomotors.
To achieve satisfactory results in step bending, certain calculations are necessary, which require knowledge of several key parameters related to the bending process — these are:
- Arc length – the distance between the ends of the bent sheet curve measured along the inner side of the bend;
- Number of bends – the number of single bends that must be performed to obtain a bent sheet with a specific radius; the greater the number of bends, the smaller the individual bending angle, resulting in a smoother curve;
- Distance between bends – the spacing between individual bends made during the process.
Although the step bending process may seem quite complex, CORMAK machines and software are so advanced that they take over many of these calculations and adjustments from the operator.
Automatic deflection crowning compensation
Ensures a constant bending angle along the entire bending length – (option*)
Manual deflection crowning compensation (option*)
Ensures a constant bending angle along the entire bending length – (option*)
High-quality components:
- Electrical system components by Schneider / Delta / Eaton
Control and functionality:
DELEM DA-58T
- Equipped with a 10-inch touchscreen mounted on a movable arm, allowing freedom of operation within the working area of the machine
- Programmability: ability to store up to 2,000 programs with 30 steps each, providing flexible adaptation to different production tasks
- Ergonomic operation: intuitive menu with English abbreviations ensures quick setup and efficient work
Optional controllers also available: DELEM DA-53T+2D, DA-66T and DA-69T, or CYBELEC 12
DA-53T+2D
Display
- 10.1" TFT LCD touchscreen
- Colour display
External software
- optional offline Profile-53TL workstation license (creation of bending sequences on a PC)
System
- Windows operating system
- 200 MHz processor
- 1GB internal memory
- Collision-free axis control logic
Functions
- Library of punches and dies (30 punches & 60 dies) – descriptive and graphic library
- Program library with graphic preview and product cataloguing
- Material database (possibility to enter new bending materials)
- Drawing of bent part on the controller display (2D)
- Program generation based on entered drawing (2D)
- Machine operation with real-time 2D sequence preview
- 2D bending simulation on the screen with collision preview (step-by-step simulation)
- Warning messages (e.g. tool overload)
- Possibility to change bending sequence or modify program steps
- Data correction and memory saving
- Manual mode operation
- Manual axis positioning
- Automatic calculation of ram stroke and bending force depending on material type
- Automatic calculation of back gauge position, inner radius and material development
- USB port and backup capability for products and tools
DA-58T
Display
- 15" TFT LCD touchscreen
- Colour display
External software
- optional offline Profile-53TL workstation license (creation of bending sequences on a PC)
System
- Windows operating system
- 200 MHz processor
- 4Mb operating memory
- Max number of programs: 9,999 (25 steps each)
- Max step repetitions: 99
- Collision-free axis control logic
Functions
- Library of punches and dies (30 punches & 60 dies)
- Descriptive and graphic library
- Program library with graphic preview and product cataloguing
- Material database (possibility to enter new materials)
- Creation of bent part drawing (2D)
- Automatic program creation based on part drawing (2D)
- Real-time 2D sequence preview during operation
- 2D simulation with collision detection (step-by-step)
- Warning and overload messages
- Option to edit, correct, and save programs
- Manual operation mode and manual back gauge axis positioning
- Automatic calculation of bending stroke and force depending on material
- Automatic calculation of back gauge position and internal radius
- USB backup capability for products and tools
DA-66T
Display
- 17” TFT LCD touchscreen
- Colour display
External software
- optional LITE T2D workstation license (creation of bending sequences on a PC)
System
- Intuitive Windows CE-based controller
- 64Mb RAM memory
- Up to 1,000 programs (1Gb storage)
- Step repetitions: 99
Functions
- Drawing creation and automatic bending program generation (2D)
- Automatic calculation of stroke and bending force depending on material
- Automatic setting of back gauge according to bending program
- 3D visualisation and step-by-step simulation
- Automatic finger positioning according to die and punch segments
- Collision and overload warning system
- Material and tool library with product database
- Manual mode and axis correction functions
- USB data backup
DA-69T
Display
- 17” TFT LCD touchscreen
- Colour display
External software
- optional LITE T3D workstation license (creation of bending sequences on a PC)
System
- Windows CE operating system
- 64Mb RAM
- Up to 1,000 programs (1Gb storage)
- Step repetitions: 99
Functions
- DXF file import
- 3D import (IGES & SAT formats)
- 3D program creation and simulation
- Automatic calculation of stroke, force and back gauge positioning
- Real-time 3D visualisation
CYBELEC 12
Display
- 12” TFT LCD touchscreen
- Colour display
System
- Windows CE operating system
- Max punches: 100
- Max programs: 300
- Max repetitions: 24
- Max materials: 10
Functions
- User-friendly HMI interface
- 2D graphic profile and 3D visualisation
- Automatic bending sequence
- High precision through advanced algorithms
- Tandem operation
- Tool import
- Pre-bend / Post-bend modes
- Angle measurement support
- Barcode reader compatibility
- Industry 4.0 ready
The machine combines advanced technology with ease of use, making it ideal for precise manual operations and efficient serial production. High-quality components and safety systems guarantee reliability and operator protection.
Safety
Laser safety system
Equipped as standard with a top-class laser safety system protecting the operator and more than doubling the bending process efficiency.
We never compromise on safety! Premium hydraulic connections and safety valves ensure long-term reliability.
Beware of pseudo safety systems like light curtains or gates, which do not meet CE standards and may endanger employees. As an employer, you are responsible for workplace safety!
CE-compliant safety guards
Ergonomics and additional features:
- Mobile controller on an adjustable arm
- LED lighting: improves comfort and work safety
- Supports on linear guides
- Servo-assisted following supports (option*)
Servo-driven following supports enable bending of large sheet metal parts by lifting the workpiece during the bending operation to maintain the desired angle and prevent material deformation.
We care about the safety of our customers and their teams — our press brakes are equipped with numerous advanced safety features, including clear markings, side guards, rear safety gates and easily accessible emergency stop buttons.
Each machine is supplied with a detailed and comprehensive operating manual.
A CE declaration alone does not guarantee safety — what matters are the actual safety systems used in the machine!
SCO – Oil Cooling System
Standard equipment includes an oil cooling system that ensures stable machine performance even during long, continuous operation.
Punch and die clamping:
- Standard equipment includes sectional, four-sided multi-groove dies and sectional punches.
- The standard system used in CORMAK press brakes is the manual AMADA (European) type quick-change system for fast and convenient tool changes.
- Punches are mounted from the side of the machine and locked with screws.
Selection of dies and punches
The final bending result also depends on the proper selection of the punch and die.
CORMAK press brakes continuously measure bending parameters and can automatically correct deviations during the process to achieve the optimal result.
Depending on the press force, sectional punches and dies may vary in length.
Telephone consultation with a specialist
You can always rely on expert support and assistance.
Terms of cooperation
- 24-month warranty
- Factory-new machine
- Warranty and post-warranty service provided by the seller
Training and Machine Commissioning
It is possible to arrange professional training and machine commissioning carried out by a Cormak technician — this service is priced individually.
Contact our advisor to get more information.
*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training — please contact our consultant for more details.
