The presented configuration represents the most popular choice among customers – a proven and efficient option for serial production.

• Front supports: 2 pcs on linear guides, ensuring stability during bending operations.

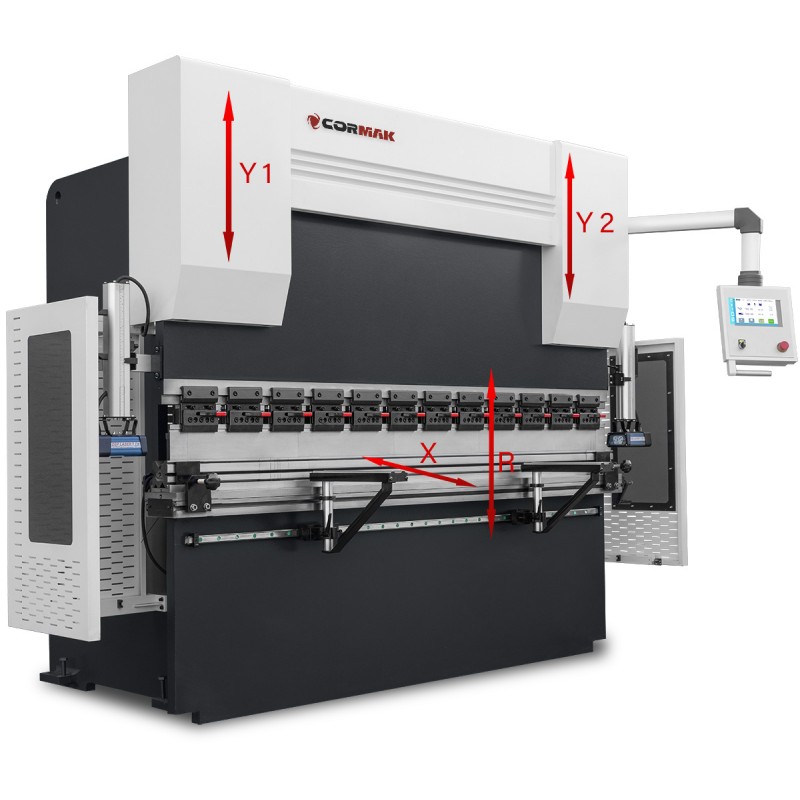

• Back gauge adjustment (X-axis): automatic

• Ram adjustment (Y1, Y2 axes): automatic

• Finger height adjustment (R-axis): manual (option* servo drive)

• Double-sided punch clamping: quick AMADA-type mounting system enabling rapid tool changes.

Available configurations are customised to production requirements and the type of processed workpieces – the machine specification is determined individually according to application and technological demands.

Technical parameters

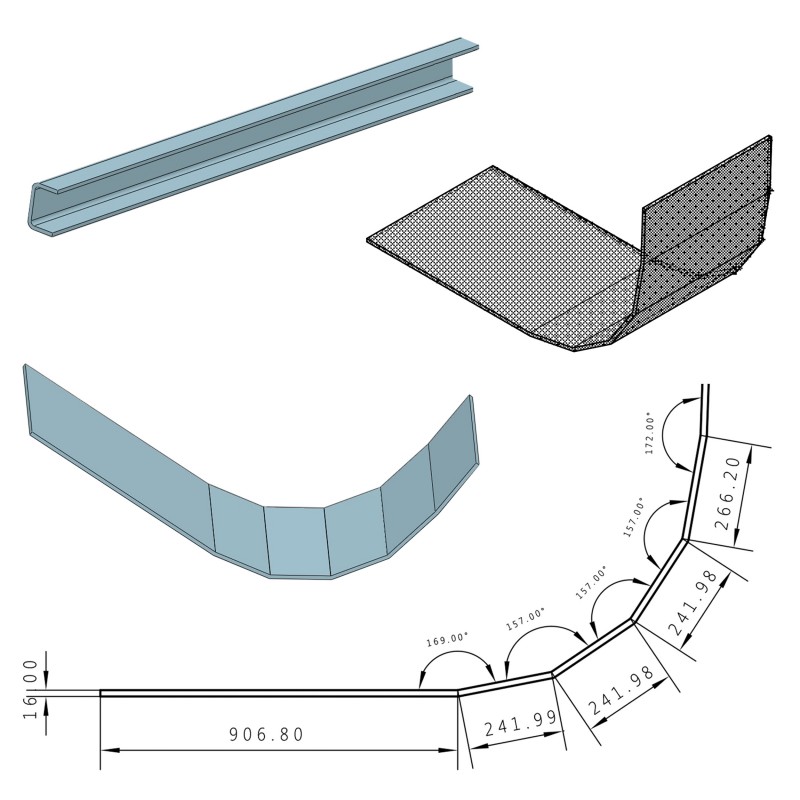

Manual or automatic adjustment of back gauge height. The R-axis facilitates bending of larger radii, e.g. with step bending system.

Although the step bending process may seem complicated, CORMAK machines and software are so advanced that they can perform many calculations automatically, relieving the operator of most tasks.

Automatic crowning compensation

Ensures a consistent bending angle along the entire working length – (option*)

Manual crowning compensation (option*)

Ensures the same bending angle across the whole working length – (option*)

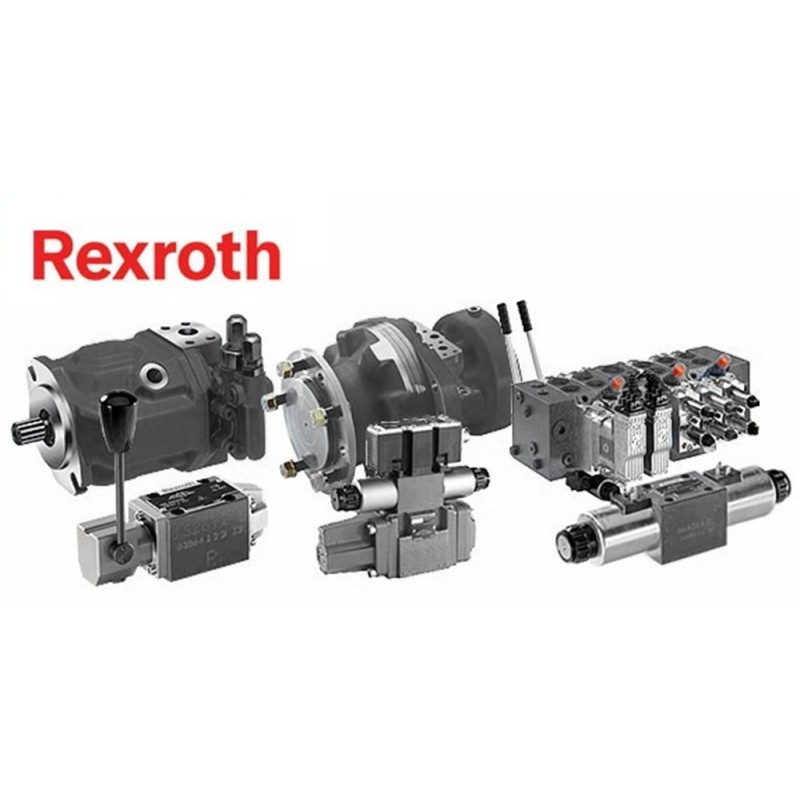

High-quality components:

• Electrical components by Schneider / Delta / Eaton

Control and functionality:

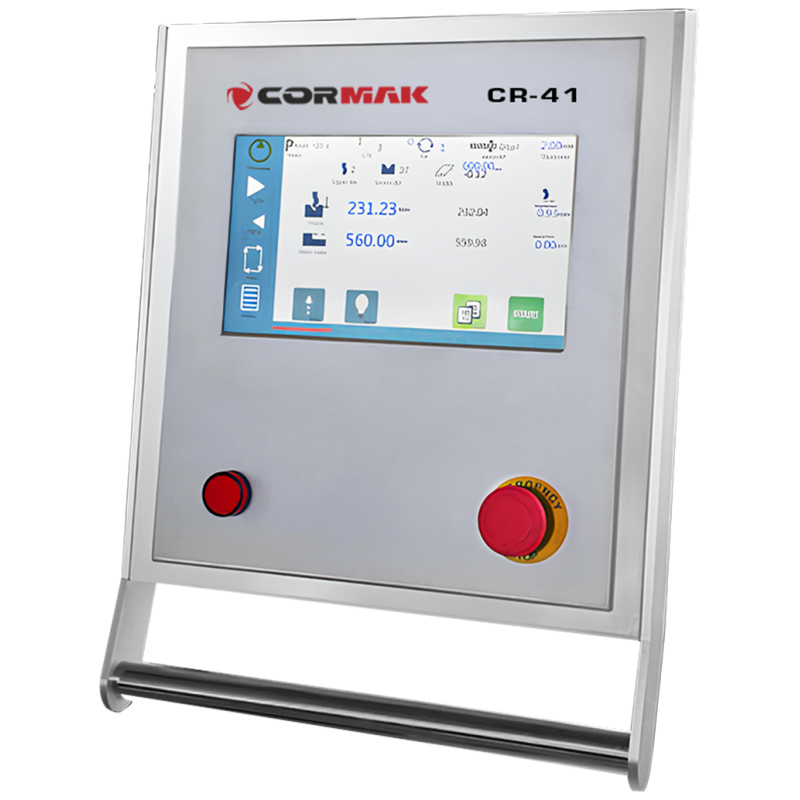

CR-41 CNC

• Equipped with a 10-inch touchscreen on a movable arm for full working range access.
• Programmability: stores up to 2000 programs with 30 steps each.
• Ergonomic Interface: intuitive English menu simplifies operation.

The machine combines advanced technology with ease of use, making it ideal for both precision manual tasks and efficient serial production. High-quality components and advanced safety features ensure reliability and operator safety.

Safety
