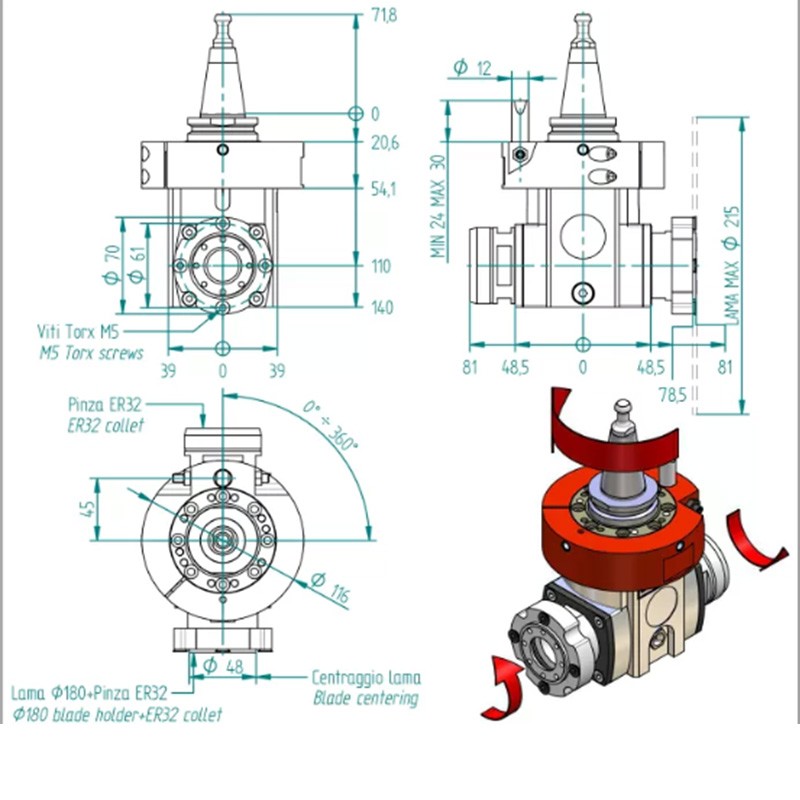

CNC aggregate head ISO30 for routers with automatic tool change (ATC), equipped with two spindles set at a 90° angle.
- 1 pc for ER32 collets
- 1 pc for saw blade
Machine features
-
Automatic Table Feed in X and Y Axes: Achieve precision and efficiency with automatic table feed in two planes. Obtain perfect results with minimal effort.
-
Mechanical Table Feed in Z Axis: The innovative mechanical table feed in the Z axis allows for fast and precise machining. Reduce working time without compromising quality.
-
Heavy-Duty Cast Iron Construction: The robust cast-iron body ensures stability and durability, providing precision and accuracy during machining.
-
Massive Cross Table with Precisely Ground Surface: The cross table is precisely ground for optimal surface finish and smooth material processing.
-
Dovetail Guideways on All 3 Axes: The dovetail guideways on all three axes guarantee maximum motion precision and repeatability.
-
Quiet Operation Thanks to Ground Gears: The machine operates smoothly and quietly thanks to ground gear wheels, ensuring comfortable use.
-
Left and Right Spindle Rotation: The bidirectional spindle rotation function offers greater flexibility for various machining operations.
-
Swivelling Head ±90°: The head can be rotated ±90°, enabling diverse applications and easy adaptation to various projects.
The CORMAK ZX7550 CW is more than just a milling and drilling machine – it’s a tool that meets the demands of even the most challenging machining tasks. Order now and experience top-level precision and performance!
| Max drilling diameter | 50 mm |
| Max horizontal milling length | 100 mm |
| Max vertical milling diameter | 25 mm |
| Max tapping diameter | M16 |
| Max boring diameter | 120 mm |
| Spindle taper | ISO 40 |
| Vertical spindle speed range and number (50 Hz) | 115–1750 rpm (8) |
| Horizontal spindle speed range and number (50 Hz) | 60–1350 rpm (9) |
| Distance between spindle and column surface | 200–700 mm |
| Distance between spindle and table | 100–480 mm |
| Distance between spindle axis and table | 0–380 mm |
| Spindle quill travel | 120 mm |
| Table size | 1000 × 240 mm |
| Table travel | 600 × 230 mm |
| Table feed | 24–720 mm/min (8 speeds) |
| Spindle feed | 0.015 / 0.08 / 0.25 mm/rev |
| T-slot number / width / spacing | 5 / 14 mm / 44 mm |
| Motor power S1 | 2 HP / 0.9–1.5 kW |
| Motor power S6 | 2.6 HP / 1.4–2.4 kW |
| Horizontal motor power S1 | 3 HP / 2.2 kW |
| Horizontal motor power S6 | 4.8 HP / 3.6 kW |
| Overall dimensions | 1120 × 1060 × 2035 mm |
| Weight | 970 kg |
Standard equipment
- 3-axis SINO digital readout
- ISO 40/Morse taper reduction sleeves
- Drill chuck 1–16 mm
- EC Declaration of Conformity
- 160 mm machine vice
- Milling arbor with set of collets for end mills
- Horizontal spindle support / overarm
- Long milling arbors
- Basic tools
- 24 V halogen lighting
- Cooling system
- User manual
Optional accessories
- Swivel vices
- Tilting vices
- Precision vices
- Rotary tables
- Dividing heads
- Tapping heads
- Milling heads
- End mills (HSS, HSSE, HSS-PM, VHM)
- Straight shank drills
- Taper shank drills
- Milling inserts
- Hand and machine taps
- Clamping kits
- Tool holders (collet, Weldon)
- Driving arbors
- Drill chucks
