Stationary Edgebander CORMAK EBM120 with Extraction System + Glue 1kg – professional edge processing for small-batch work in a compact format

CORMAK EBM120 Edgebander is a precision edgebanding machine for furniture boards designed for small and medium-sized carpentry workshops. Thanks to the integrated extraction system, smoothly adjustable feed and dual milling units, the machine provides high-quality edge finishing with stable, repeatable performance. The set also includes 1 kg of glue, enabling immediate production start.

Main advantages of the machine

• Automatic feed – smoothly adjustable feed speed (0–6 m/min) allows adaptation to various panel types.
• Double-sided processing – two independent milling units enable simultaneous machining of upper and lower edges, increasing efficiency.
• Edgebander with feed and polishing – integrated edge polishing eliminates the need for additional processing.

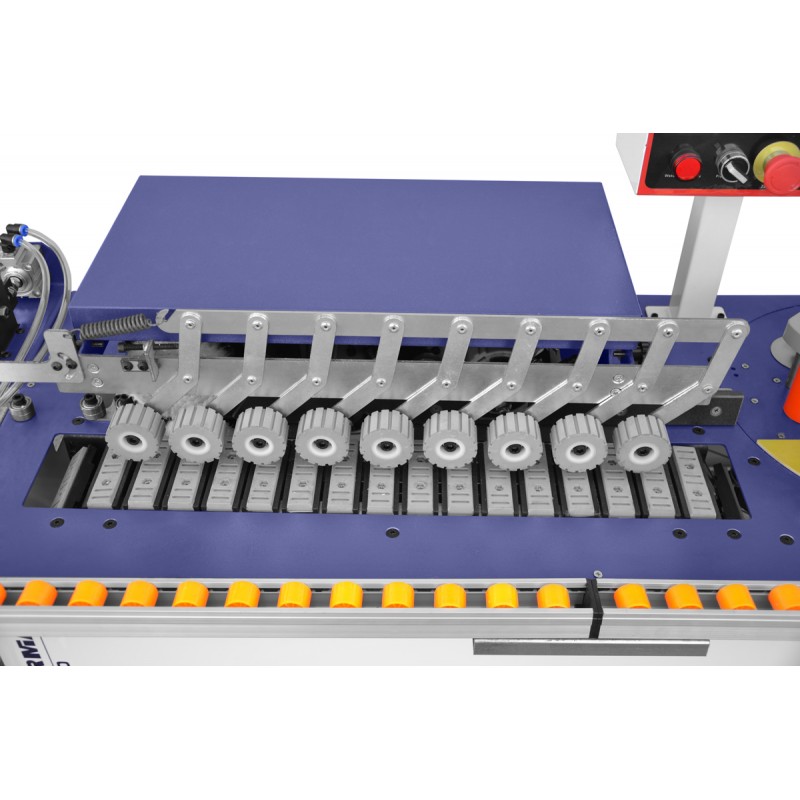

• Stable material guidance – angled pressure rollers and reinforced pressure beam prevent slippage and ensure even pressure.
• Irregular element handling – the glue head can be positioned laterally, allowing the edging of worktops with non-standard shapes.
• Extraction system – effective removal of milling waste maintains workplace cleanliness and improves processing quality.
• High flexibility – handles tapes from 0.3 to 2 mm thick and up to 60 mm high, suitable for a wide range of tasks.

Construction and technology

The machine is built on a solid steel frame ensuring stability even when working with heavy or large components. The worktable features automatic feed and a support roller system to assist handling of large-format furniture boards.

The efficient 1000 ml glue tank allows continuous work without frequent refilling. Thanks to automation, edgebanding rollers start operating only after the glue reaches optimal temperature, minimising errors and preventing material damage.

Precision and efficiency

CORMAK EBM120 Edgebander ensures consistent quality of processed components thanks to independent adjustment of key parameters – temperature, feed speed, milling height and polishing speed. Settings are changed smoothly without downtime, allowing quick transitions between different production runs. Operation is intuitive and ergonomically designed for safety and comfort.

Applications

EBM120 is a stationary edgebanding machine for furniture boards, ideal for:

• custom furniture production,
• small and medium-sized woodworking workshops,
• prototype and craft workshops,
• service points specialising in precision edge finishing.

Standard equipment

• 4 polishing wheels
• 4 edge milling cutters
• Adjustable glue head
• Glue tank (1000 ml)
• Support roller system
• Extraction system for milling units
• 1 kg glue included

Optional equipment*

• Additional cutters for various radii
• Quick-change glue system
• Set of spare rollers
• Adjustable side supports for long panels

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.

Technical data

Looking for a reliable edgebander with feed system? CORMAK EBM120 delivers precision, performance and functionality you can rely on. Contact us to receive an offer or select the right model for your workshop.
