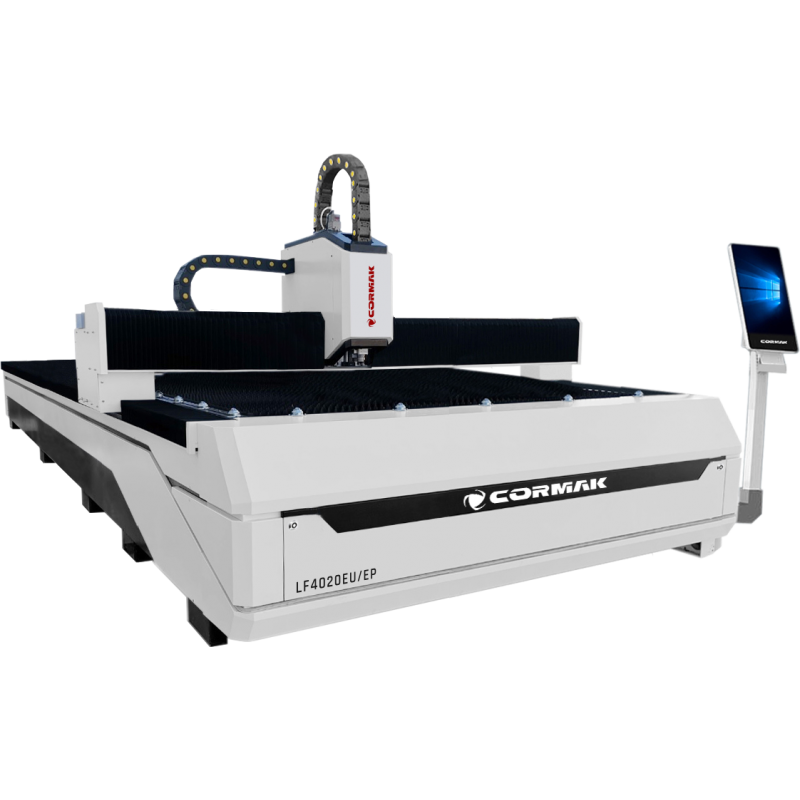

Fibre Laser Cutter CORMAK FIBER LF4020EP4 1000W

Fibre laser cutting machines are modern devices that stand out for their many advantages. They are not only an excellent and much more economical alternative to CO₂ technology but also have numerous benefits that increase productivity (by up to 70%) and improve quality. FIBER technology enables the cutting of sheets and other materials of varying thicknesses, from very thin to very thick. The wavelength of a FIBER laser is 1.064 micrometres, providing an intensity 100 times greater than that of CO₂ systems of comparable power.

MAIN ADVANTAGES OF THE LASER

• Long service life. The collimating and focusing lenses feature a water-cooled heat sink, which reduces the temperature of the cutting head and extends its operational lifespan.
• Wider adjustment range. Adjustment range −10 mm to +10 mm, precision 0.01 mm, suitable for various plate types (0–20 mm).
• Automatic focus adjustment (above 1500W) – Autofocus. The software automatically adjusts the focusing lens when cutting sheets of different thicknesses. The autofocus speed is ten times faster than manual adjustment.








Design screen

The display features a vertical screen with fast response time, higher contrast, wider viewing angle, low power consumption and high resolution. It also provides high brightness, reduced reflection, and greater durability.

Welded bed made of rectangular profiles

The bed structure features an internal honeycomb design, made of multiple welded rectangular tubes. Reinforcements inside the tubes increase the frame’s strength, rigidity and the stability of the guide rails, effectively preventing deformation. High tensile strength and stability ensure 20 years of deformation-free operation.

Technical parameters

Cutting parameters

Actual parameters may vary depending on technical conditions and materials used.

1. RAYTOOLS cutting head
2. HIWIN linear guides
3. YYC racks and pinions
4. DELTA servomotors
5. MOTOREDUCER gearbox
6. SMC pneumatic components
7. Electrical components such as contactors, relays, and sensors by Schneider, OMRON, IDEM
8. CypCut software
9. S&A water chiller
10. TNS voltage stabiliser

*The price quoted is for the machine itself, excluding optional/additional equipment, installation, transport and training— please contact our consultant for more details.
